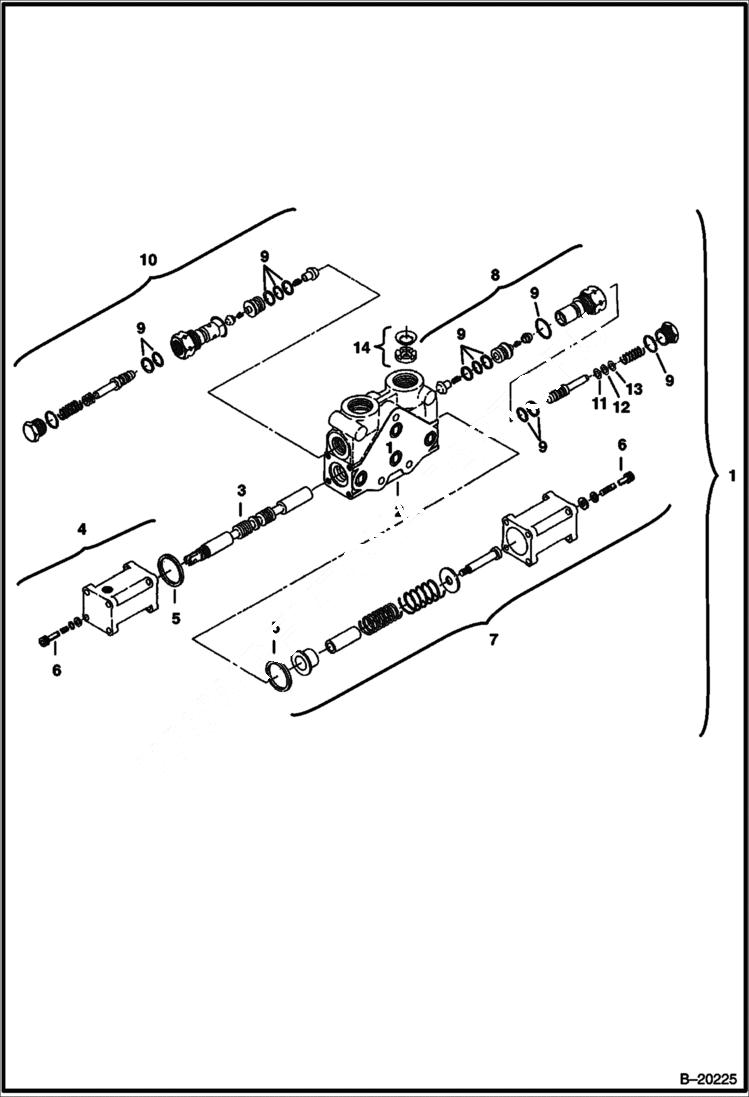

Запчасти Bobcat 331 VALVE SECTION HYDRAULIC SYSTEM

1

6660498

VALVE SECTION Boom - W/Ref. 2-11

2

BODY NSS

3

SPOOL NSS

4

6660742

POSITIONER Spool - W/Refs. 5 & 6

5

6660743

SEAL Positioner

6

6665439

SCREW Was 73G000448B - A

7

6660744

POSITIONER Spool - W/Refs. 5 & 6

8

6651653

RELIEF VALVE Set at 2950 PSI - W/Ref. 9 & 11

9

6647693

SEAL KIT

10

6660746

RELIEF VALVE Seat at 3400 PSI - W/Ref. 9 & 11

11

896265

SHIM .010'' (0,25 mm) thick

12

896264

SHIM .020'' (0,5 mm) thick

13

896263

SHIM .040'' (1,0 mm) thick

14

6660745

RESTRICTOR Assy. (.125 inch)
