Запчасти Bobcat 331 ACCUMULATOR VALVE HYDRAULIC SYSTEM

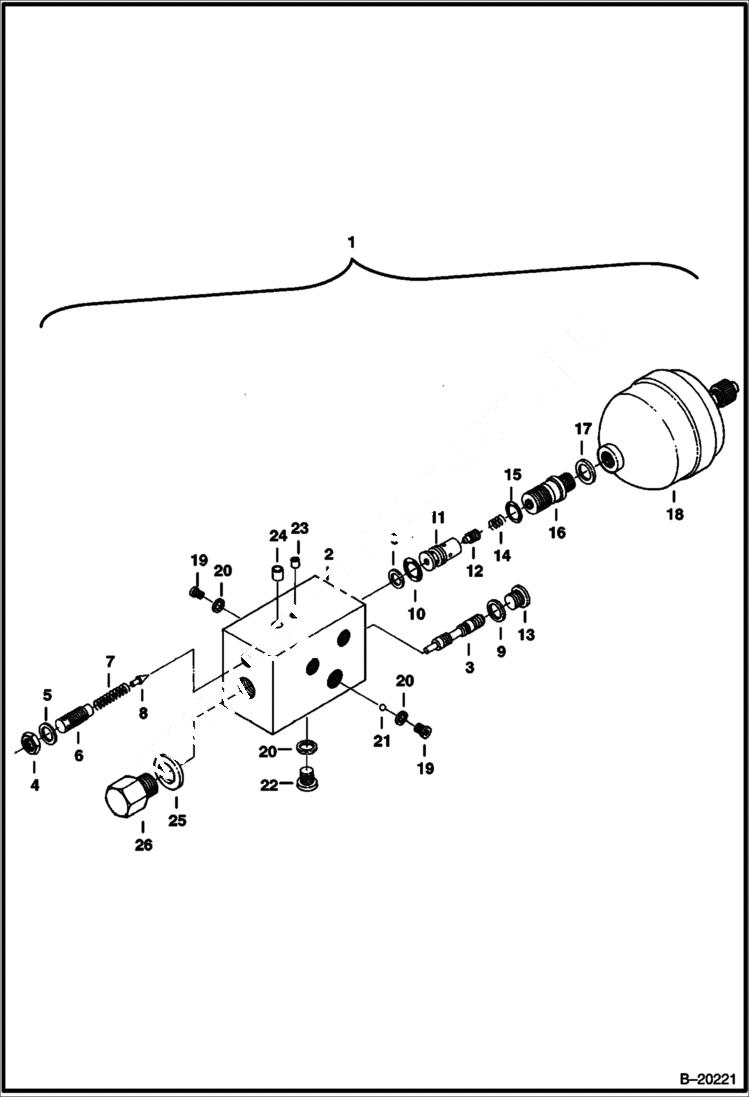

Схема запчастей Bobcat 331 - ACCUMULATOR VALVE HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6657208

VALVE ASSY. W/Ref. 2-26

2

HOUSING NSS

3

SPOOL NSS

4

6660535

NUT

5

6660534

WASHER

6

6660533

SCREW

7

6660524

SPRING

8

VALVE NLA - Needle - Was 6660523 - A

9

6660531

WASHER Copper

10

O-RING NLA - Was 6660522 - A

11

6660529

SEAT Check valve

12

6660521

CHECK VALVE

13

6660536

PLUG

14

6660528

SPRING

15

6660527

O-RING

16

6660526

ADAPTER

17

SEAL NLA - Was 6660525 - A

18

6661381

ACCUMULATOR

19

6660539

PLUG

20

6660542

WASHER Copper

21

6660540

BALL

22

6660541

PLUG

23

PLUG NLA - small - Was 6660530 - A

24

6660532

PLUG Large

25

6660537

WASHER

26

6660538

PLUG

Выбрано товаров: 26
