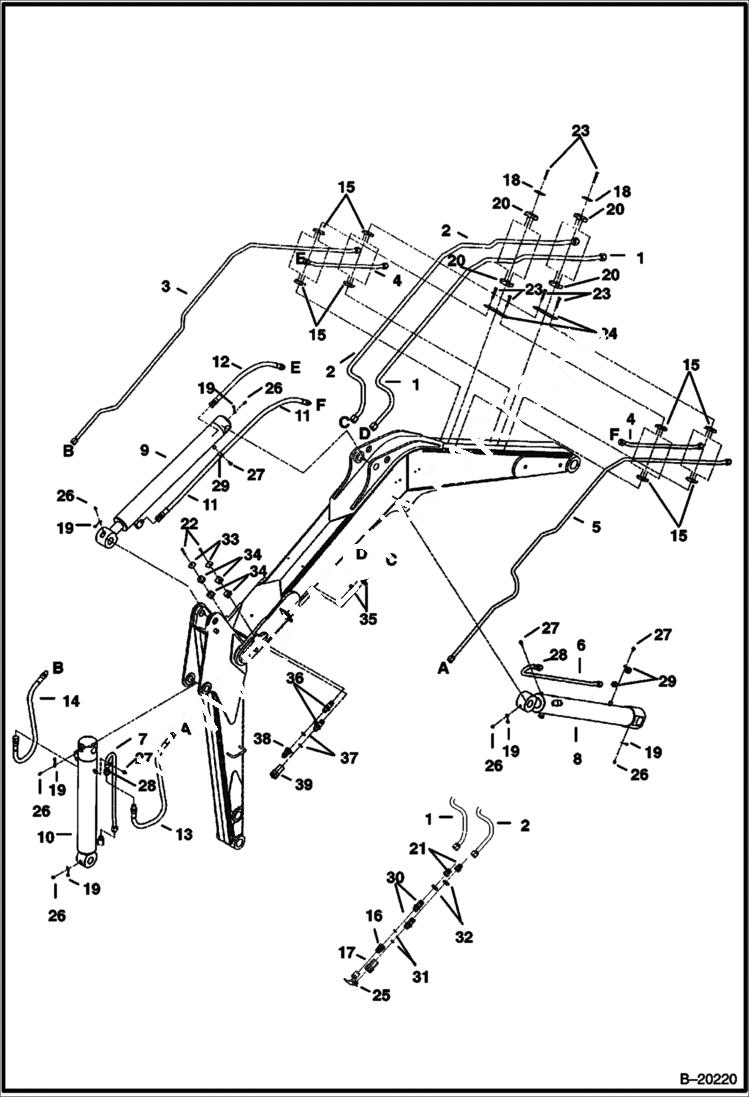

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Arm, Boom, Bucket & Auxiliary) (S/N 12000 & Above) HYDRAULIC SYSTEM
№
Артикул
Название
Примечание
Количество
1
6596039
TUBE For Use W/poppet couplers
1
6628642
TUBELINE For Use W/flush face couplers
2
6596040
TUBE For Use W/poppet couplers
2
6628643
TUBELINE For Use W/flush face couplers
3
6596041
TUBELINE
4
6596042
TUBELINE
5
6596044
TUBELINE
6
6596855
TUBELINE
7
6596856
TUBELINE
8
CYLINDER See Illustration BOOM CYLINDER/ C3285 - Boom
9
CYLINDER See Illustration ARM CYLINDER/ B20421 - Arm
10
CYLINDER See Illustration BUCKET CYLINDER/ C3396 - Bucket
11
7105235
HOSE Was 6628360 - A
12
6628362
HOSE Was 6589621 - A
13
6539418
HOSE Was 6628675 - A
14
6816626
HOSE Was 6628363 - A
15
6577697
CLAMP Was 6701893 - B
16
6598757
COUPLER, POPPET MALE straight
17
6598758
COUPLER, POPPET FEMALE straight
17
48K16
O RING 10 Incl. - W/Ref. 17
18
6652521
PLATE
19
6652943
COVER grease fitting
20
6659498
CLAMP
21
6660224
ADAPTER For Use W/poppet couplers only
24
6596116
PLATE
25
6513709
CAP PLUG Coupler - cap & plug - use w/poppet couplers only
27
29CM812
BOLT
28
30H37
CLAMP
29
30H50
CLIP Was 30H000045B - B
30
45K7
CONNECTR Bulk head - for Use W/poppet couplers only
32
86F7
LOCK NUT For Use W/poppet couplers only
33
6665102
COVER
34
6666920
CLAMP, HALF
35
86F8
NUT 5 For Use W/flush face couplers
36
45K8
ADAPTOR Bulk head - for Use W/flush face couplers
36
CONNECTOR NLA - Bulk head - for Use W/flush face couplers - W/Ref. 37 - tapered boss face - Was 6716090 - A
36
99K12
O RING tapered boss face
36
6812823
ADAPTER flat boss face - W/Ref. 37
37
97K12
O'RING For Use W/flush face couplers - tapered boss face
38
6679841
SEAL Was 6672026 - A
