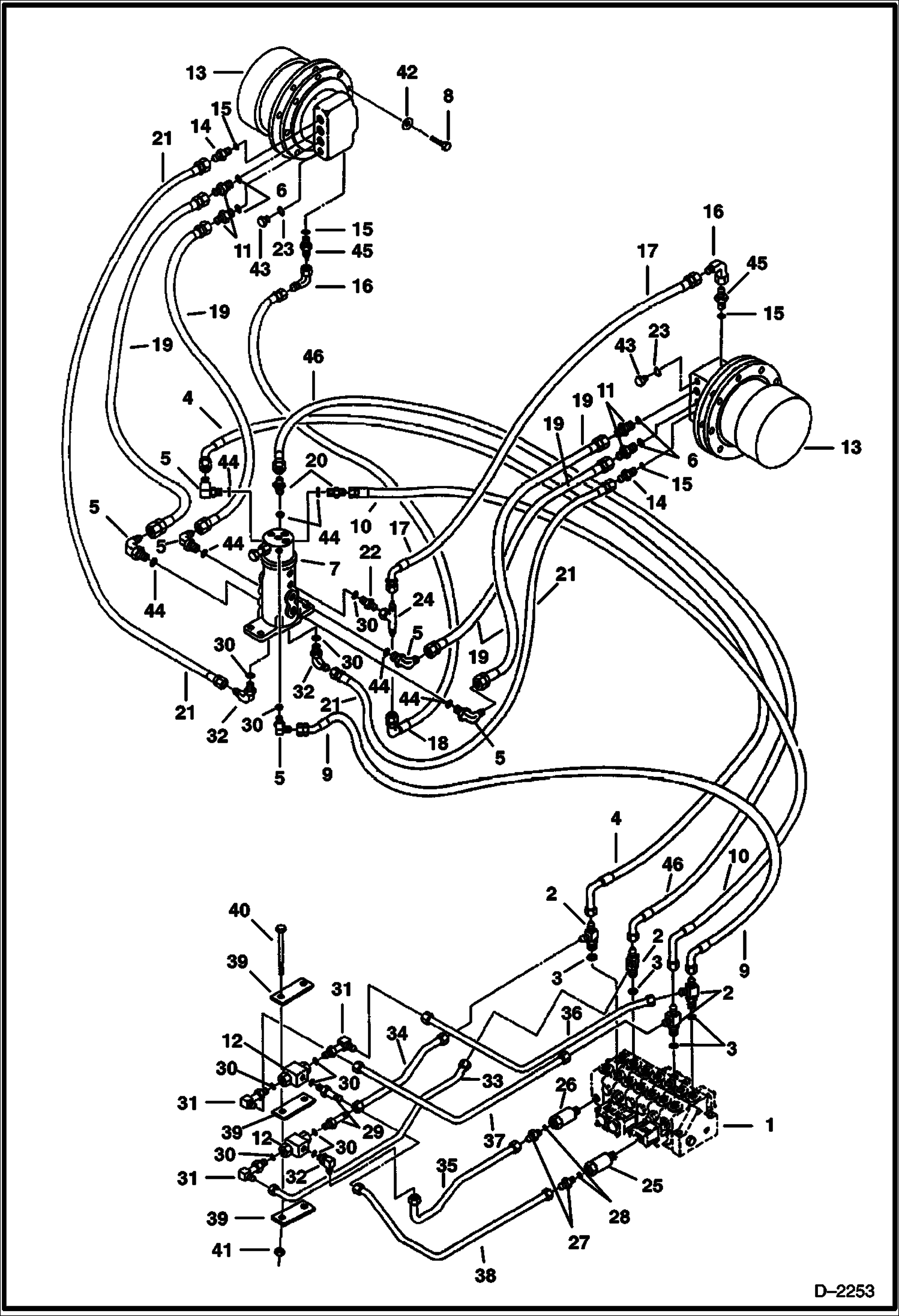

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valve to Travel Motors) HYDRAULIC SYSTEM

1

VALVE See Illustration 6 SPOOL VALVE/ D2225 - Assy

2

6587567

TEE W/Ref. 3

3

79K10

O RING 10

4

6588357

HOSE

5

17K6

ELBOW W/Ref. 44

6

6655245

O-RING

7

SWIVEL JOINT

8

1CM1235

BOLT

9

6588358

HOSE

10

6539835

HOSE

11

6655835

ADAPTER W/Ref. 30

12

6662638

VALVE shuttle

13

MOTOR See Illustration TRAVEL MOTOR/ D2172 - Drive

14

6654895

ADAPTER W/Ref. 15

15

6655250

O-RING

16

11K5

FITTING

17

6618198

HOSE

18

6532638

HOSE

19

6800815

HOSE Was 6539849 - A

20

15K6

ADAPTER W/Ref. 44

21

6534012

HOSE

22

15K5

FITTING W/Ref. 30

23

6655244

O-RING

24

14K5

TEE

25

RELIEF VALVE See Illustration VALVE SECTION/ C3330

26

RELIEF VALVE See Illustration END COVER/ C3329

27

CONNECTOR NLA - W/Ref. 28 - Was 6579648 - A

28

79K4

O RING 10

29

16K5

FITTING W/Ref. 30

30

79K6

O RING 10

31

6558510

ELBOW W/Ref. 30

32

17K5

ELBOW W/Ref. 30

33

6587557

TUBE

34

6587558

TUBE

35

6587559

TUBE

36

6587560

TUBE

37

6587561

TUBE

38

6587562

TUBE

39

6539489

PLATE

40

1CM890

BOLT

41

49DM8

NUT

42

6EM120

WASHER

43

6653022

PLUG W/Ref. 23

44

79K8

O RING 10

45

6654375

ADAPTER W/Ref. 15

46

6536783

HOSE
