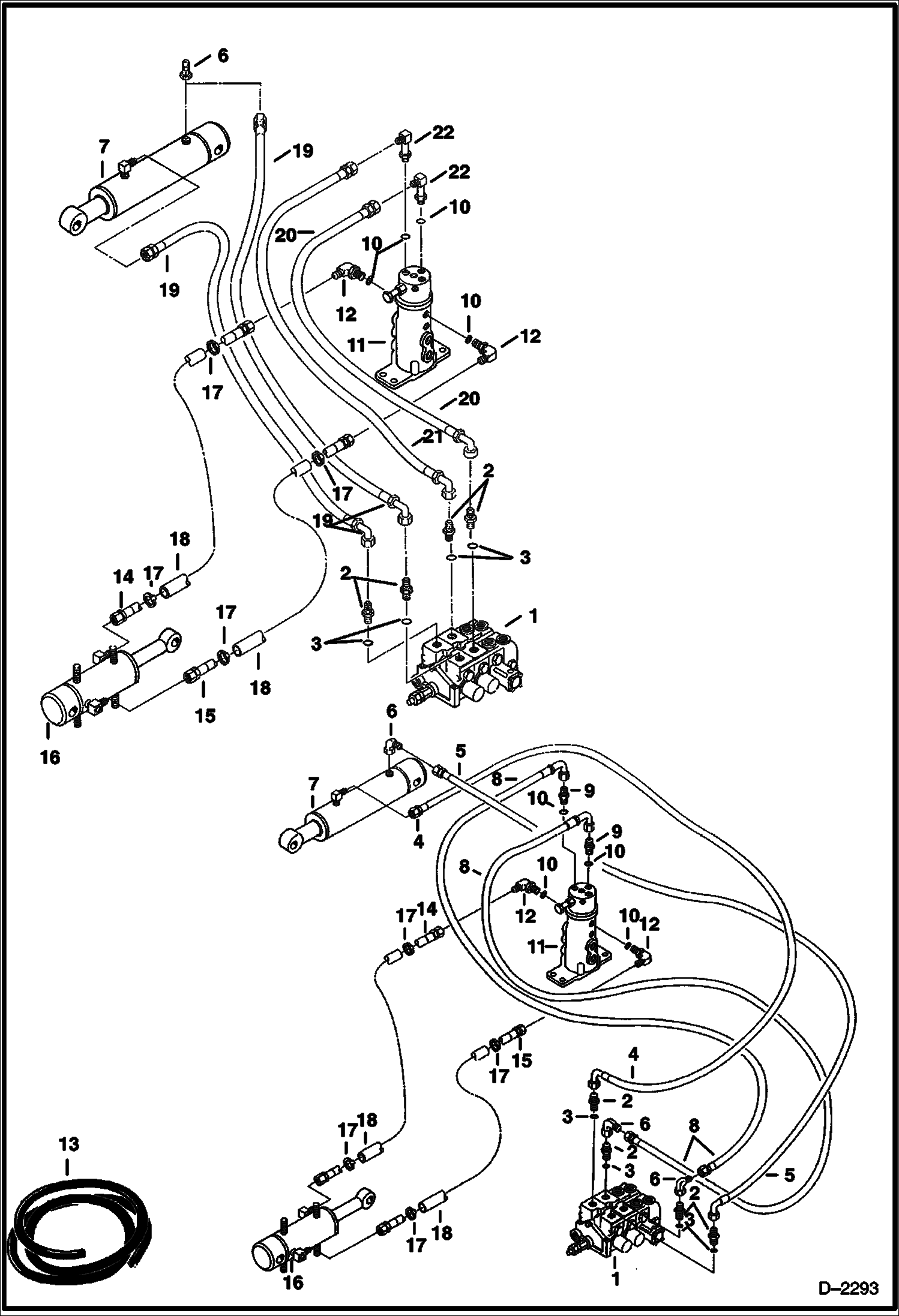

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valve to Blade Cylinder to Swing Cylinder) (S/N 512911138-512912999) HYDRAULIC SYSTEM

1

VALVE See Illustration VALVE SECTION/ C3291 - Assy

2

743108

FITTING W/Ref. 3

3

79K8

O RING 10

4

HOSE See BTIE-044 - NLA - Was 6537629 - A

5

HOSE See BTIE-044 - NLA - Was 6537630 - A

6

11K5

FITTING

7

CYLINDER See Illustration SWING CYLINDER/ C3287 - Boom Swing

8

HOSE See BTIE-044 - NLA - Was 6537631 - A

9

15K5

FITTING W/Ref. 10

10

79K6

O RING 10

11

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057

12

17K5

ELBOW W/Ref. 10

13

6656155

HOSE COVER bulk - sold per foot

14

6628365

HOSE Includes Refs. 17 & 18 - Was 6589624 - A

15

6711670

HOSE Includes Refs. 17 & 18 - Was 6628364 - A

16

CYLINDER See Illustration BLADE CYLINDER/ B18901 - Blade - G20

17

6665221

CABLE TIE Metal - requires tool MEL-1427 to install cable tie

18

COVER NLA - 53'' long (1330 mm) - Order Ref. 19

19

6537631

HOSE

20

6640724

HOSE

21

6539087

HOSE

22

6558510

ELBOW W/Ref. 10
