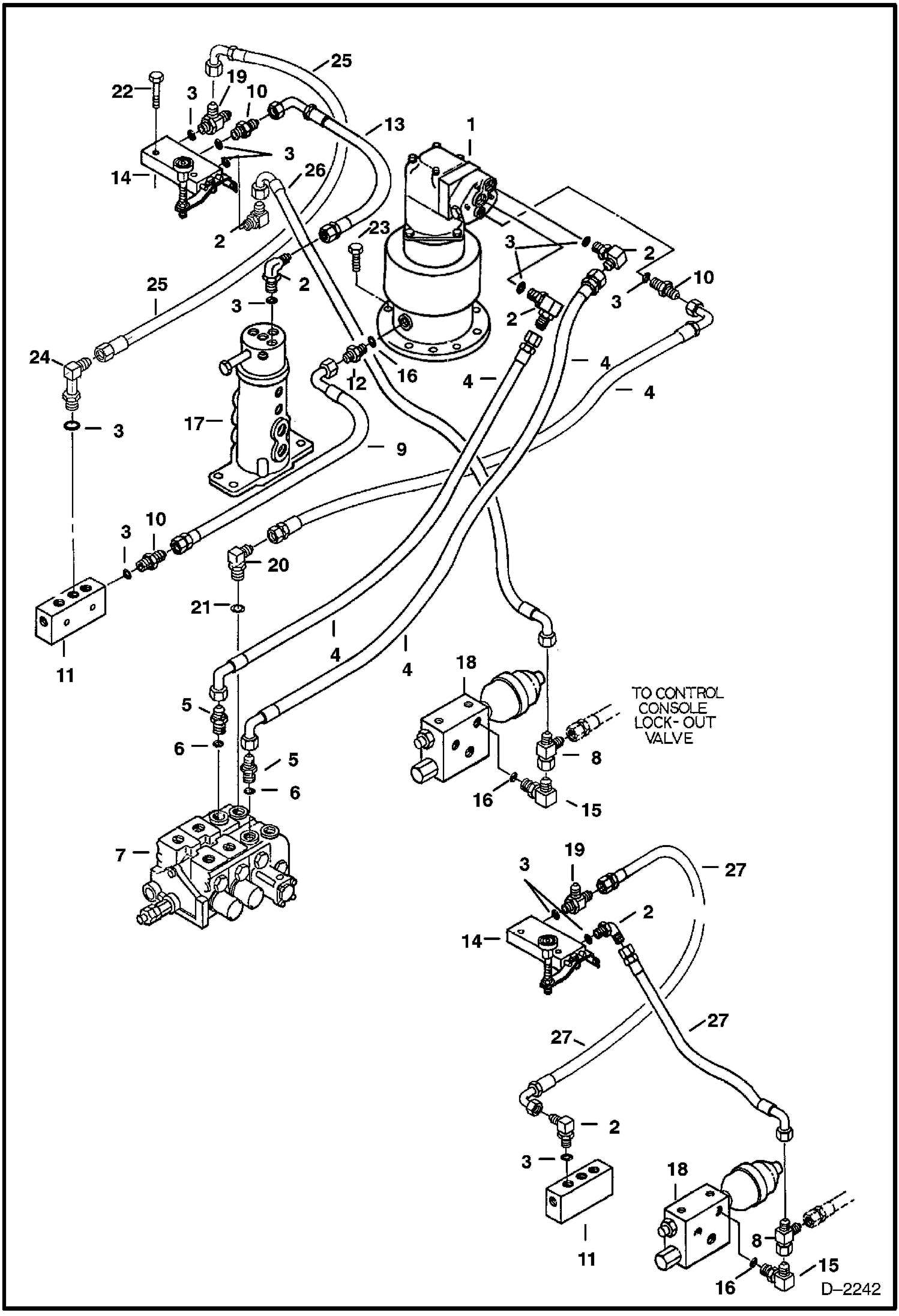

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valve to Swing Motor to 2 Speed Valve) (S/N 512911001-512911056) HYDRAULIC SYSTEM

1

MOTOR See Illustration CROSSOVER RELIEF VALVE/ C3202 See Illustration SWING MOTOR/ C3252

2

17K5

ELBOW W/Ref. 3

3

79K6

O RING 10

4

6640724

HOSE

5

743108

FITTING W/Ref. 6 - Was 15K000006B - D

6

79K8

O RING 10

7

VALVE See Illustration 3 SPOOL VALVE/ C3295 - Assy

8

13K5

TEE

9

6539841

HOSE

10

15K5

FITTING W/Ref. 3

11

6667829

BLOCK Drain - Was 6539695 - D

12

6538386

CONNECTOR W/Ref. 16

13

6535445

HOSE Was 6618195 - A

14

6539555

VALVE See Illustration 2 SPEED VALVE/ C3282 - 2 Speed

15

6657392

ELBOW W/Ref. 16

16

6655244

O-RING

17

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057

18

VALVE See Illustration ACCUMULATOR VALVE/ B20221 - Accumulator

19

21K5

TEE W/Ref. 3

20

6589193

ELBOW W/Ref. 21 - Was 1302104B - D

21

79K12

O RING 10

22

1C516

BOLT

23

1CM1225

BOLT

24

6558510

ELBOW W/Ref. 3

25

6535445

HOSE

26

6628152

HOSE

27

HOSE See BTIE-044 - NLA - Was 6640724 - A
