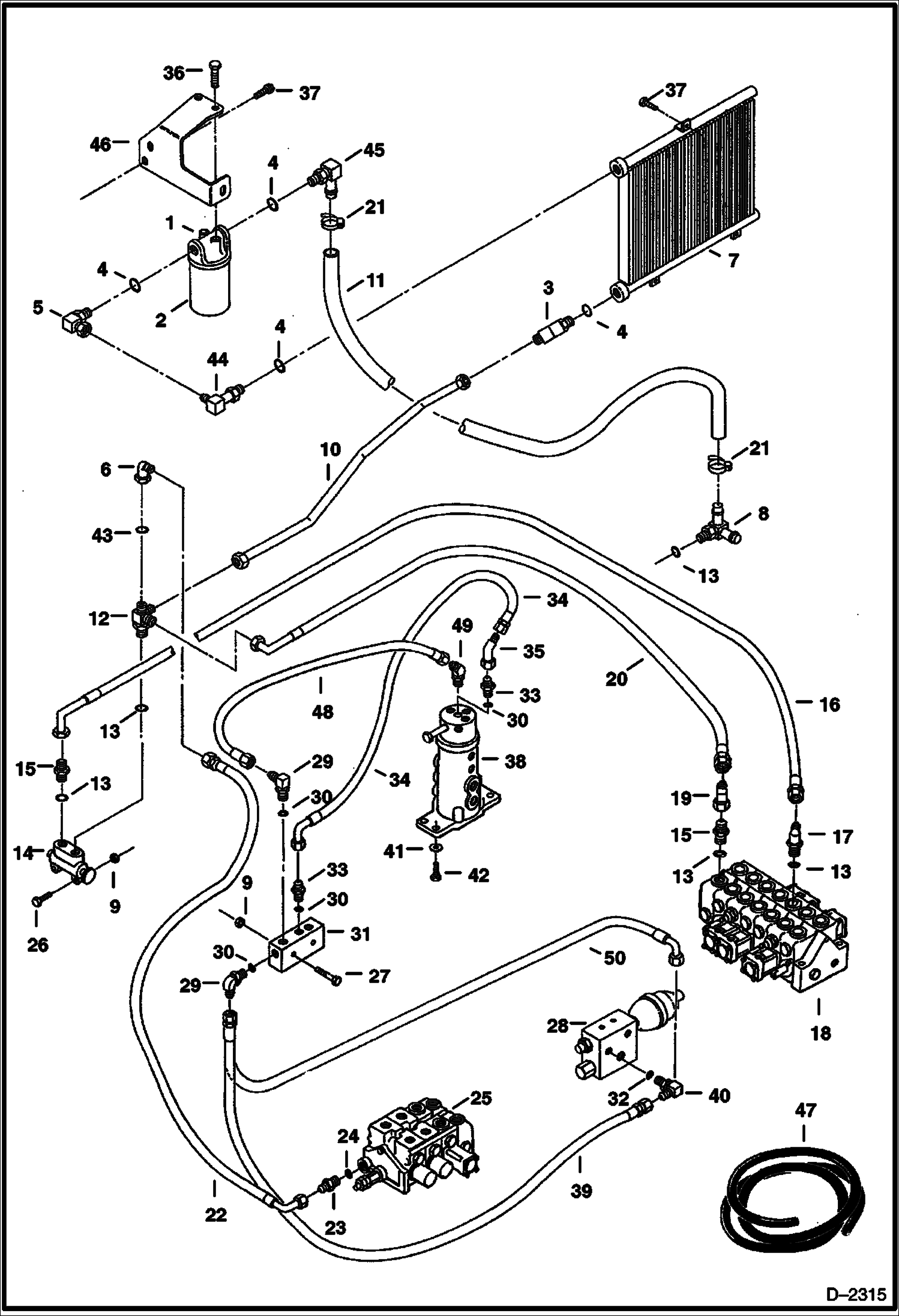

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valves to Oil Cooler to Filter) (S/N 512912000-512912999) HYDRAULIC SYSTEM

1

6654897

FILTER ASSY Assy. - W/Ref. 2

2

6653336

ELEMENT filter

3

17K10

FITTING W/Ref. 4

4

79K16

O RING 10

5

6596886

ELBOW W/Ref. 4

6

11K6

UNION W/Ref. 43

7

6666610

OIL COOLER Was 6660076 - A

8

6596791

TEE See Illustration HYDRAULIC CIRCUITRY/ D2316 W/Ref. 13

9

4DM8

NUT Was 1DM00008B - B

10

6596907

TUBE

11

HOSE NLA - 22'' (555mm) long- Order Ref. 51

12

6596790

TEE W/Ref. 13

13

79K12

O RING 10

14

VALVE See Illustration SELECTOR VALVE/ B13660 ASSY

15

15K8

FITTING W/Ref. 13

16

6539846

HOSE

17

17K8

FITTING W/Ref. 13

18

VALVE See Illustration 6 SPOOL VALVE/ D2225 ASSY.

19

11K8

ELBOW

20

6628111

HOSE Was 6584679 - A

21

42H24

CLAMP-5

22

6596908

HOSE

23

15K7

FITTING W/Ref. 24

24

79K10

O RING 10

25

VALVE See Illustration 3 SPOOL VALVE/ C3295 ASSY.

26

1CM845

BOLT

27

1CM855

BOLT

28

VALVE See Illustration ACCUMULATOR VALVE/ B20221 ACCUMULATOR

29

17K5

ELBOW W/Ref. 30

30

79K6

O RING 10

31

6667829

BLOCK Drain - Was 6587437 - A

32

6655244

O-RING

33

15K5

FITTING W/Ref. 30

34

HOSE See BTIE-044 NLA - Was 6539841 - A

35

12K5

ADAPTER 455

36

17C612

BOLT 5

37

26GM8016

SCREW

38

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057

39

HOSE See BTIE-044 NLA - Was 6534012 - A

40

6657392

ELBOW W/Ref. 32

41

6EM120

WASHER

42

1CM1230

BOLT

43

79K8

O RING 10

44

6702096

ELBOW W/Ref. 4

45

1312337

ELBOW W/Ref. 4

46

6596909

BRACKET Filter mounting

47

6673825

HOSE bulk - sold per foot - Was 1310909B - A

48

6628153

HOSE

49

18K5

ELBOW 45 degrees - W/Ref. 30

50

6618193

HOSE
