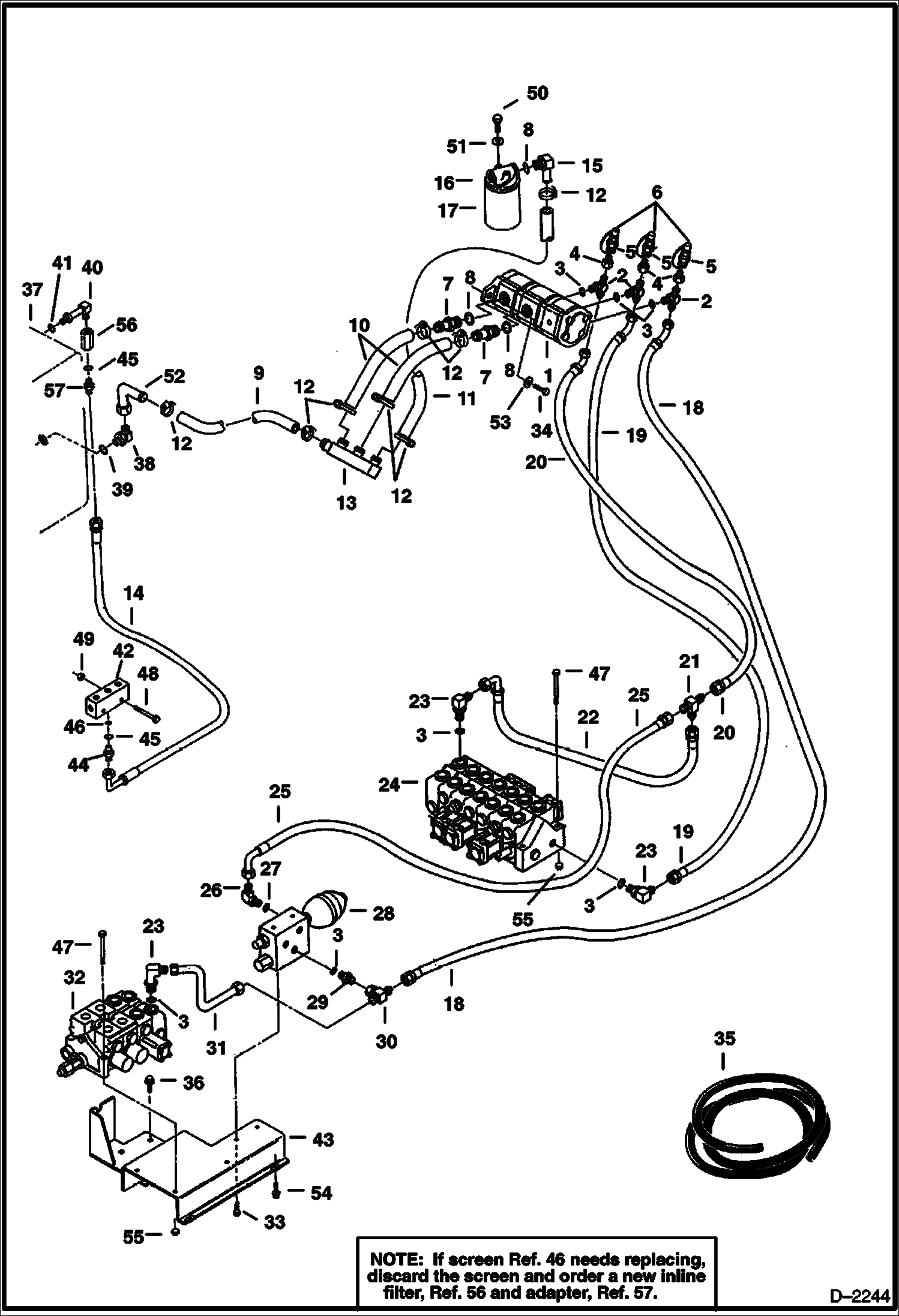

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Tank to Pump to Valves) (S/N 512911001-512911999) HYDRAULIC SYSTEM

1

6666930

PUMP, GEAR TRIPLE See Illustration TRIPLE GEAR PUMP/ B13917 - Was 6662769 - A

2

19K7

TEE W/Ref. 3

3

79K10

O RING 10

4

784244

ADAPTOR

5

6646635

COUPLER Diagnostic

6

6630367

CAP Dust

7

6587972

FITTING W/Ref. 8

8

79K16

O RING 10

9

HOSE NLA - 35'' Lg. (889mm) - Order Ref. 35

10

HOSE NLA - 12'' Lg. (305mm) - Order Ref. 35

11

HOSE NLA - 25-1/2'' Lg. (648mm) - Order Ref. 35

12

5HM44

CLAMP Was 42H000024B - B

13

6539793

MANIFOLD

14

6532638

HOSE

15

1312337

ELBOW W/Ref. 8

16

6654897

FILTER ASSY Assy. - W/Ref. 17

17

6653336

ELEMENT Filter

18

6539836

HOSE

19

6539837

HOSE

20

6539838

HOSE

21

10K7

TEE

22

6539866

HOSE

23

17K7

ELBOW W/Ref. 3

24

VALVE See Illustration 6 SPOOL VALVE/ D2225 - Assy

25

6539851

HOSE

26

6654893

ELBOW W/Ref. 27

27

6655245

O-RING

28

VALVE See Illustration ACCUMULATOR VALVE/ B20221 - Accumulator

29

6660343

CONNECTOR W/Ref. 3

30

14K7

TEE

31

6539852

TUBE

32

VALVE See Illustration 3 SPOOL VALVE/ C3295 - Assy

33

1CM816

BOLT

34

3GM1025

BOLT

35

6673825

HOSE 1-1/4'' bulk - Order Per Foot - Was 1310909B - A

36

29CM1020

BOLT

37

TANK See Illustration FUEL SYSTEM AND TANKS/ TS1211 - Hydraulic

38

17K11

FITTING W/Ref. 39

39

79K12

O RING 10

40

6558510

ELBOW See Illustration ELECTRICAL SYSTEMS CONSOLE/ B20424 - W/Ref. 41 - included W/hydraulic tank

41

79K6

O RING 10

42

6667829

BLOCK Drain W/screen Ref. 46 - Was 6587439 - A

42

6667830

DRAIN BLOCK Drain - does not use screen, Ref 46 - See Note

43

6539822

PLATE

44

743108

FITTING W/Ref. 45

45

79K6

O RING 10

46

6587439

DISC Screen - See Note

47

1CM870

BOLT

48

1CM855

BOLT

49

4DM8

NUT Was 4DM00008B - B

50

1C612

BOLT

51

WASHER NLA - Was 27E000017B - A

52

6588352

TUBE

53

15EM100

WASHER

54

26GM10020

BOLT

55

51DM8

NUT Was 45DM00008B - B

56

6667552

FILTER Inline

57

15K5

FITTING W/Ref. 45
