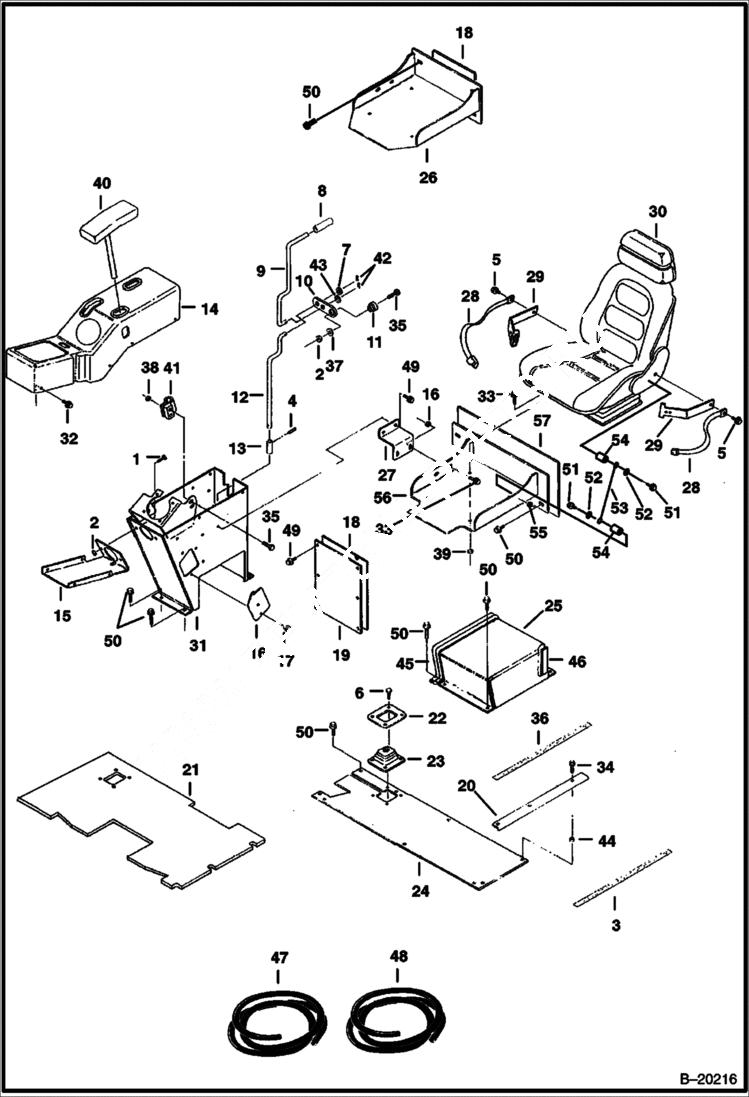

Запчасти Bobcat 331 CONTROL CONSOLE, FLOORBOARDS AND SEAT CONTROLS

1

29CM1020

BOLT

2

1DM10

NUT - B

3

6588953

TREAD Attaches to upperstructure

4

14J1820

PIN

5

29CM825

BOLT

6

1CM512

BOLT

7

15EM160

WASHERS

8

KNOB NLA - Was 6658108 - A

9

6588777

ROD

10

6586716

PLATE

11

6539769

BUSHING

12

6588555

ROD

13

6586717

PIN Swing lock

14

6596556

COVER See BTIE-041 - for ignition switch hole info. - Was 6596348 - B

15

6588551

BRACKET Gauge panel

16

6537544

COVER

17

6631000

THUMBSCREW

18

6588618

INSULATION

19

6588786

PANEL

20

6588552

ANGLE

21

FLOORMAT NLA - Cab - Order 6800529 and modify to fit - Was 6589893 - A

21

FLOORMAT NLA - Canopy - Order 6800528 and modify to fit - Was 6587712 - A

22

6585301

RETAINER Boot

23

BOOT NLA - Was 6585347 - A

24

6588553

PLATE Floorboard

25

6588691

COVER Swing motor

26

6588788

MOUNT

27

6588790

BRACKET Support

28

6564774

SEAT BELT

29

GUIDE NLA - Assy. - seat belt-Order 6539095 , (2) 6630207 & (2) 6565355 - Was 6539096 - A

29

STRAP NSS - Belt guide - Order 6539096

29

GUIDE NLA - Order 6703703 - yellow plastic - Was 6565355 - A

29

1662965

RIVET

30

SEAT ASSY. See Illustration SEAT/ B17486

31

6588547

CONSOLE R.H.

32

6589675

SCREW Self tapping

33

29CM816

SCREW

34

26GM10030

BOLT Was 26GM-130 - D

35

1CM1045

BOLT

36

6593245

TREAD

37

27E6

WASHER 5

38

53DM10

NUT Was 49DM00010B - B

39

51DM8

NUT Was 45DM00008B - B

40

6537510

ARM REST

41

6537514

MOUNT Arm rest

42

13JM20025

COTTERPIN

43

15EM120

WASHER

44

6503451

SPACER

45

SEAL NLA - 24'' long (600mm) Order Ref. 47

46

INSULATION NLA - 6'' long (153mm) Order Ref. 48

47

6513152

SEAL bulk - sold per foot

48

SEAL NLA - bulk - sold per foot - Was 6632217 - B

49

26GM8016

SCREW Self tapping

50

26GM10020

BOLT Self tapping

51

1CM835

BOLT

52

25E16

WSHR

53

6589689

TETHERS

54

6608719

SPACER

55

53DM8

NUT Was 49DM00008B - B

56

6596916

MOUNT Seat

57

6596354

INSULATION
