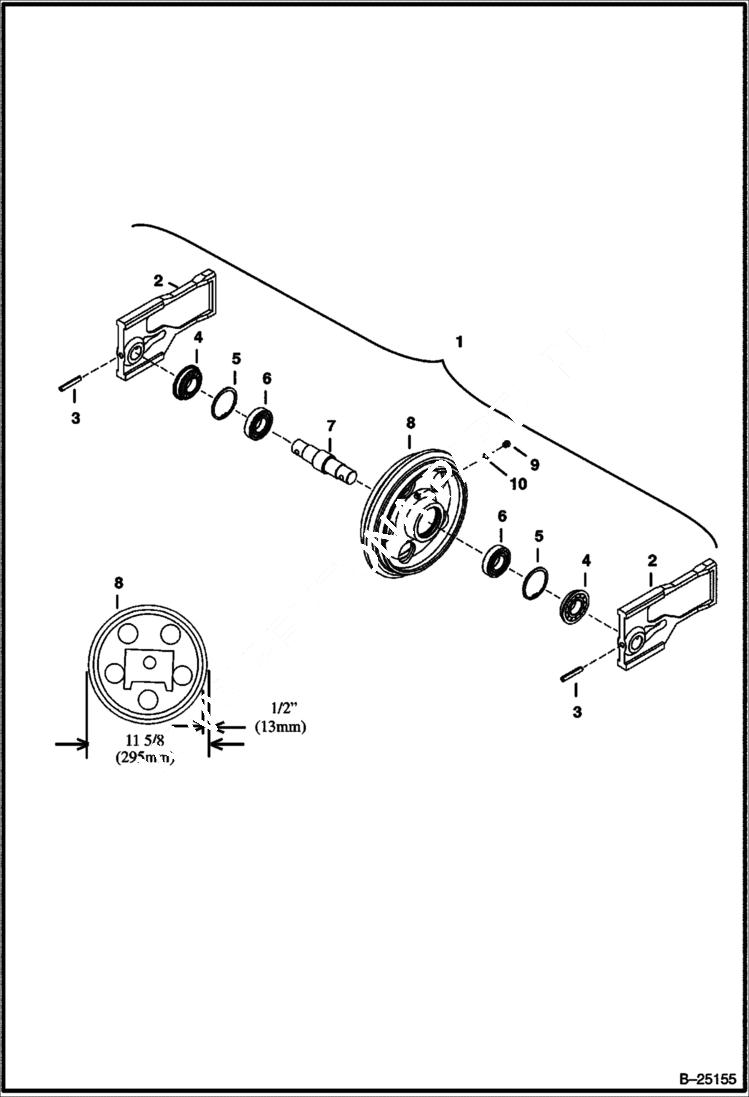

Запчасти Bobcat 331 FRONT IDLER (For All Steel Tracks) (W/ Oil Plug) UNDERCARRIAGE

1

6808250

FRONT IDLER Assy. Ref. 2-8 - W/11- 5/8'' (295mm) diameter - (For European machines w/ rubber tracks with S/N 11001 - 12220) - Was 6588994 - A

2

6588995

BLOCK

3

2JM1060

PIN

4

6725082

SEAL Was 6655061 - A

5

7JM72

SNAP RING

6

6684339

BEARING Was 6655856 - A

7

6588997

SHAFT

8

6807911

IDLER W/11 -5/8 '' (295mm) diameter - check the outer diameter before ordering parts - Was 6588998 - A

9

90K3

PLUG Was 90KV3 - D

10

95K4

O-RING
