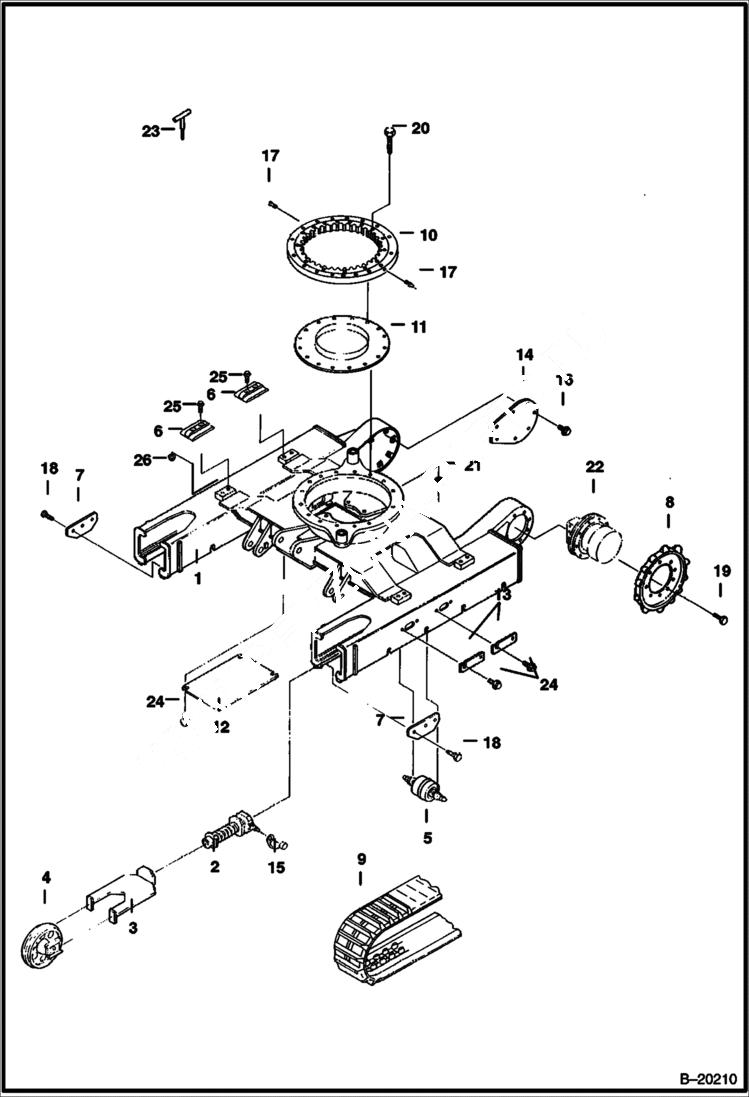

Запчасти Bobcat 331 UNDERCARRIAGE UNDERCARRIAGE

1

6537670

TRACK FRAME

2

SPRING ASSY. See Illustration RECOIL SPRING/ B18889 - Recoil

3

6535538

BRACKET Idler wheel

4

FRONT IDLER See Illustration FRONT IDLER/ B18890

5

6534243

TRACK ROLLER See Illustration TRACK ROLLER/ B22162

6

6534234

BRACKET Track slide

7

6534236

PLATE Steel track

7

6537618

PLATE Rubber track

8

6587310

SPROCKET

9

TRACK, RUBBER See Illustration TRACKS/ NA6207

9

TRACK, STEEL See Illustration TRACKS/ B25157

10

6655124

BEARING 96 teeth on swing gear

11

6535548

FLANGE

12

6536082

COVER

13

6539292

COVER

14

6535547

COVER

15

6652943

COVER grease fitting

16

29CM820

SCREW

17

6652970

GREASE FITTING

18

1CM1025

BOLT

19

1CM1235

BOLT

20

7CM1280

BOLT

21

51DM12

NUT Was 47DM00012B - B

22

DRIVE MOTOR See Illustration TRAVEL MOTOR/ D2172

23

6586495

PIN alignment -service tool for aligning swing bearing when upperstructure has been removed from undercarriage

24

26GM10020

BOLT Self Tapping

25

29CM1030

BOLT

26

51DM10

NUT Was 45DM00010B - B
