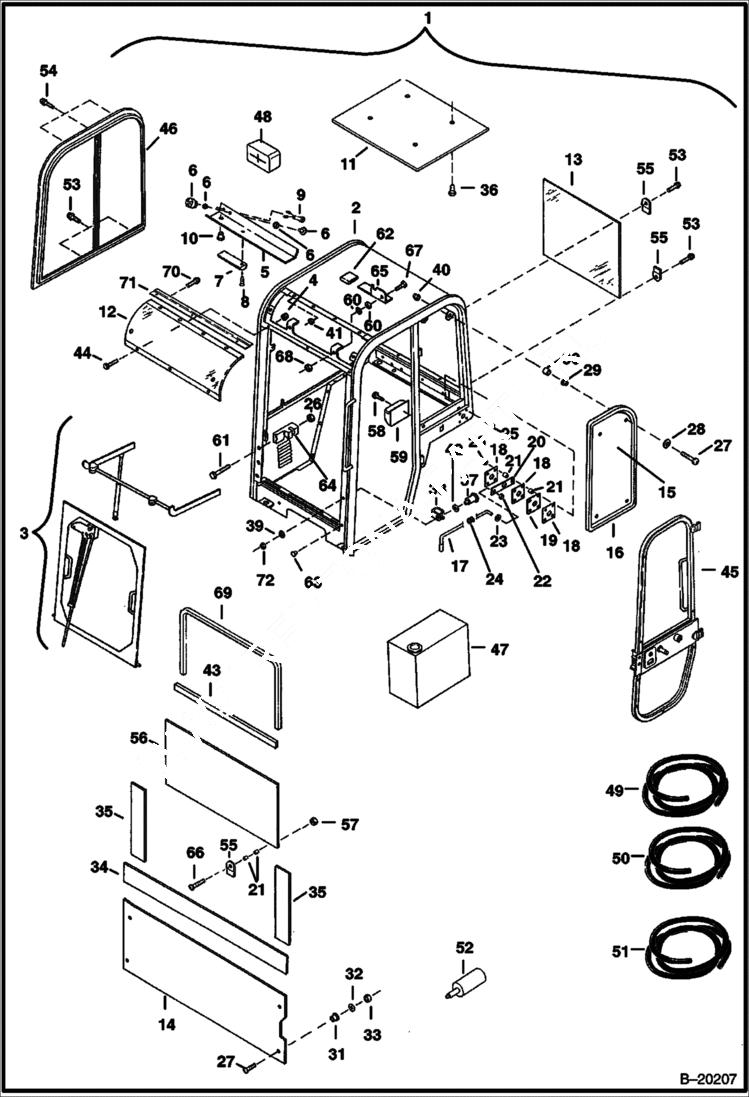

Запчасти Bobcat 331 OPERATOR CAB MAIN FRAME

1

CAB ASSY See Illustration OPERATOR CAB/ D2320 NLA - W/Refs. 2- 48 and all items - order 6810477

2

CAB NLA - Weldment - Order 6810477 -Was 6628839 - A

2

6801477

CAB Weldment only

3

WINDOW See Illustration OPERATOR CAB/ D2320 FRONT

4

6664103

NUT Acorn #10

5

6628898

PLATE Was 6664564 - A

6

6669315

SWITCH Wiper/washer - Was 6664563 - A

7

6664084

LIGHT

7

6665367

BULB Was 6655055 - A

8

6664049

SCREW Dome light mounting

9

6513469

HOLDER Was 6654166 - A

9

6656270

FUSE 5amp.

10

6648358

GROMMET

11

6628899

INSULATION Headliner - Was 6664161 - A

12

6806131

WINDOW Curved - Was 6664176 - A

13

6664172

WINDOW Rear

14

6664175

GLASS Lower front - W/Mtg Holes and Notch

15

6664171

GLASS Left

16

SEAL NLA - 105'' long (2680mm) - Order Ref. 49

17

6628900

ROD Door release - Was 6664137 - A

18

6628902

PLATE Was 6664134 - A

19

6664146

SEAL

20

6628901

LATCH Door hold open - Was 6664135 - A

21

6664085

BUSHING

22

6660979

NUT Push on

23

6660980

RETAINER Push on

24

6654147

SPRING

25

6664068

BOLT 1 1/4'' long

26

7031515

NUT Acorn 1/4'' - Was 6664056 - A

27

6648410

BOLT 3/4''

28

6664090

WASHER

29

6800788

GROMMET Was 6664087 - A

30

6664086

SPACER

31

6664089

GROMMET

32

6664065

WASHER

33

7031515

NUT Acorn 1/4'' - Was 6664056 - A

34

SEAL NLA - 36'' long (914mm) - Order Ref. 50

35

SEAL NLA - 12'' long (305mm) - Order Ref. 50

36

6664559

FASTENER Insulation

37

6664080

PIN Door striker - w/internal threads

37

6649483

STRIKER BOLT Door striker - w/external threads

38

6664083

COVER

39

27E6

WASHER 5 Was 27E000016B - D

40

6669138

NUT

41

6664562

GROMMET

42

6660975

GROMMET

43

SEAL NLA - 33'' (838mm) - Order Ref. 49

44

6657095

BOLT 1/2''

45

DOOR ASSY. See Illustration OPERATOR CAB/ E2379

46

WINDOW ASSY. See Illustration OPERATOR CAB/ C3343 - Right Side

47

HEATER ASSY. See Illustration HEATER/ C3340

48

LIGHT NLA - Order 6668722 -Was 6664106 - A

48

6665700

SEALED BEAM For light 6664106

48

6664106

LAMP Was 6668722 - A

48

6668721

BULB Replacement bulb for 6668722

49

6664088

SEAL Bulk - Order Per Foot

50

6648416

SEAL BULK /FT Bulk - Order Per Foot

51

6664102

SEAL Bulk - Order Per Foot

52

6654148

SEALANT Window - 10 oz. tube

53

6654152

BOLT #10 x 3/4'' long

54

6665386

SCREW #10 x 1-3/4'' long

55

6665366

RETAINER Glass

56

6668111

WINDOW Lower front - No Holes - No Notch - Uses Ref. 34 & 35

56

6800637

WINDOW Lower Front - Uses 43 & 69

57

6664103

NUT Was 12D000010B - B

58

58G806

SCREW

59

6664075

ASH TRAY

60

6630038

WASHER

61

6664066

BOLT 2'' (51mm) Long

62

6670760

GRIP

63

6670761

CAP Hole Plug

64

6800651

MOUNT Lower Glass

65

6801032

HANDLE L.H. Shown

65

6801033

LATCH R.H. Shown

66

6657095

BOLT #10 x 1/2''

66

6801188

SCREW #10 x 1''

67

6800857

BOLT

68

87D5

NUT

69

SEAL NLA - 56'' (1422mm) - Order Ref. 49

70

26GM6016

SCREW

71

6805291

BRACKET

72

61D7

NUT Use W/Ref. 37 w/external threads - Was 61D000006B - D

72

6664046

BOLT Use W/Ref. 37 w/internal threads
