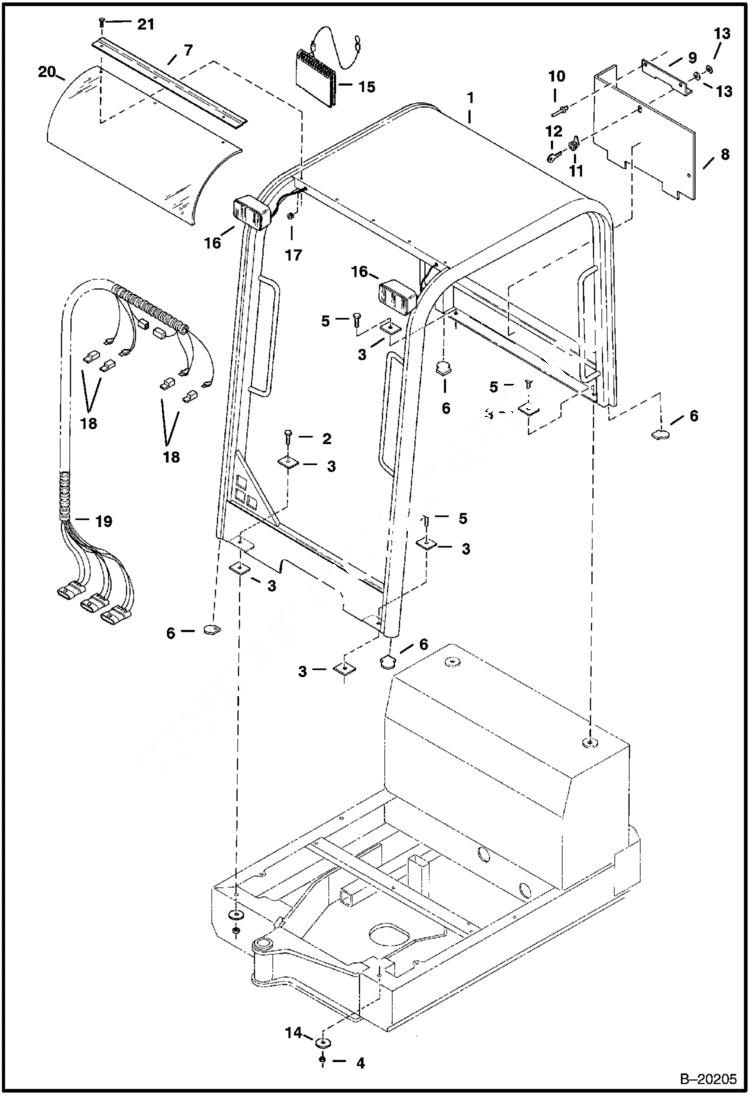

Запчасти Bobcat 331 CANOPY AND MOUNTING MAIN FRAME

1

CANOPY NLA - Incls. Refs. 6, 8, 9, 10 & 17 - Order 6800748 - Was SALES

1

6800748

CANOPY weldment only

2

7CM1240

SCREW

3

6588177

PLATE

4

43DM12

NUT

5

7CM1225

BOLT

6

6807987

INSULATION Was 6589660 - A

7

6805291

BRACKET

8

6589655

PANEL Storage-canopy models

8

6589656

PANEL Storage-cab models

9

6589657

ANGLE

10

6630207

RIVET 5

11

6674389

LOCK ASSY - Was 6661695 - A

12

6587458

KEY

13

6536802

WASHER

14

17EM120

WASHER

15

6596919

HANDBOOK Operators - English

15

6596920

HANDBOOK Operators - Danish

15

6596921

HANDBOOK Operators - French

15

6596922

HANDBOOK Operators - German

15

6596924

HANDBOOK Operators - Italian

15

6596925

HANDBOOK Operators - Spanish

15

6596926

HANDBOOK Operators - Portuguese

15

6596927

HANDBOOK Operators - Dutch

15

6596928

HANDBOOK Operators - Japanese

15

6596929

HANDBOOK Operators - Norwegian

15

6596930

HANDBOOK Operators - Russian

15

6596931

HANDBOOK Operators Swedish

15

6596932

HANDBOOK Operators Finnish

15

6596933

HANDBOOK Operators -Greek

16

LIGHT NLA - Order 6668722 - Was 6664106 - A

16

6665700

SEALED BEAM For light 6664106

16

6664106

LAMP Was 6667822 - A

16

6668721

BULB Replacement bulb for 6668722

17

6664562

GROMMET Was 1021036B - A

18

6519548

CONNECTOR Electrical

19

6628808

HARNESS Canopy also order Ref. 18

20

6806131

WINDOW Was 6595792 - A

21

6589675

SCREW

21

26GM6016

SCREW Use W/Ref. 7
