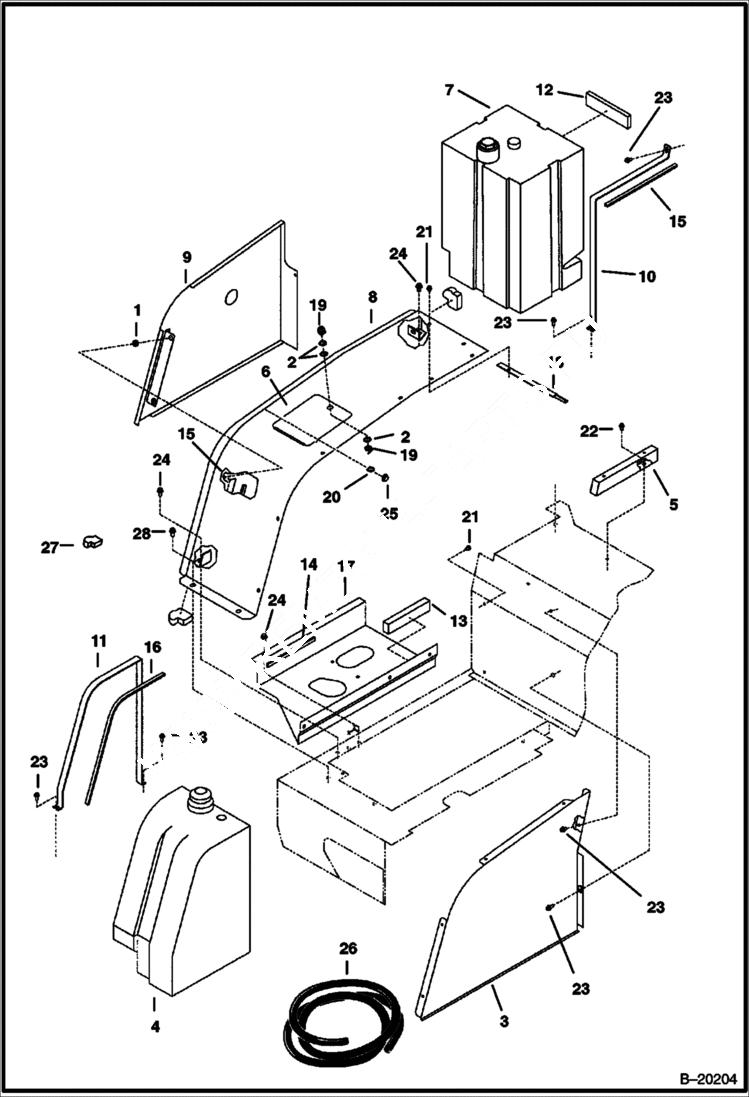

Запчасти Bobcat 331 SIDE COVERS & TANKS MAIN FRAME

1

515069

GROMMET

2

6536802

WASHER

3

6587544

PLATE

4

6587548

TANK See Illustration FUEL SYSTEM AND TANKS/ TS1211 - Fuel

5

6587552

BRACKET

6

COVER NLA - Order 6806888 - Was 6587555 - A

6

6806888

COVER 1 piece

7

TANK See Illustration FUEL SYSTEM AND TANKS/ TS1211 - Hydraulic

8

TUBE NLA - Order 6806888 - Was 6588485 - A

9

6588486

PLATE Side Cover

10

6588664

STRAP Hydraulic Tank

11

6588783

STRAP Fuel Tank

12

FOAM NLA - Order 6588939 - Was 6588938 - A

13

6588939

FOAM

14

FOAM NLA - 9'' long (230mm) Order Ref. 26

15

FOAM NLA - 14'' long (350mm) Order Ref. 26

16

FOAM NLA - 24'' long (620mm) Order Ref. 26

17

6587551

PAN

18

6588944

BRACKET

19

6674389

LOCK ASSY - Was 6661695 - A

19

6587458

KEY

20

15EM120

WASHER

21

26GM8013

BOLT Was 26GM08012B - A

22

29CM816

SCREW

23

26GM8016

SCREW

24

29CM1020

BOLT

25

43DM10

NUT Was 42DM00010B - B

26

SEAL NLA - bulk - sold per foot - Was 6632217 - B

27

6589660

FOAM

28

26GM10020

BOLT
