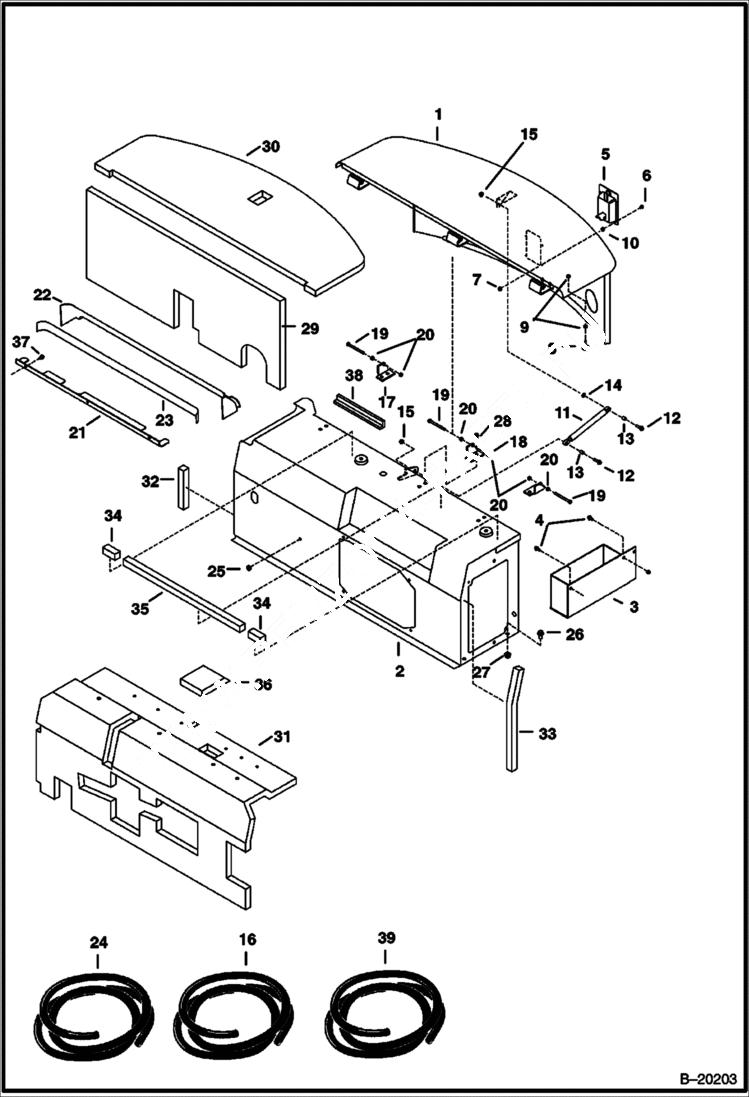

Запчасти Bobcat 331 ENGINE COVERS & INSULATION MAIN FRAME

1

6588526

COVER Engine

1

6596912

COVER Engine

2

6589523

COVER

2

6596910

COVER

3

6589161

TOOL BOX

4

29CM816

SCREW

5

6674239

LATCH, COVER ENG Was 6664447 - A

5

6587458

KEY

6

6589675

SCREW Was 6587499 - A

7

53DM6

NUT Not used on later models - Was 49DM00006B - B

8

6655399

BUMPER

9

61D5

NUT

10

15EM60

WASHER Not used on later models

11

6664262

CYLINDER Gas Spring

12

29CM830

CAPSCREW

13

6588293

BUSHING

14

1EM80

WASHER

15

43DM8

NUT Was 42DM00008B - B

16

6554274

INSULATION Bulk - Sold Per Foot

17

6589032

ANGLE

18

6589033

ANGLE

19

1CM890

BOLT

20

4DM8

NUT Was 1DM00008B - B

21

6588648

SUPPORT

22

6588070

COVER

23

TAPE NLA - Double backed-for attaching to the cab/canopy-48 inches (1220mm) long - Order Ref. 22 & 24

24

6900669

TAPE Bulk-Sold Per Foot - Was 6665212 - A

25

515069

GROMMET

26

29CM1225

BOLT

27

51DM12

NUT Was 45DM00012B - B

28

26GM10020

BOLT

29

6588541

INSULATION

29

6596915

INSULATION

30

6588542

INSULATION

31

6589519

INSULATION Fastens to inside of Ref. 2

31

6596914

INSULATION Fastens to inside of Ref. 2

32

INSULATION NLA - 8''long (206mm) - Order Ref. 16

33

INSULATION NLA - 21''long (500mm) - Order Ref. 16

34

INSULATION NLA - 3''long (76mm) - Order Ref. 16

35

INSULATION NLA - 28''long (712mm) - Order Ref. 16

36

6589244

INSULATION

37

26GM8016

SCREW

38

SEAL NLA - Drip rail - 12 inch (305mm) Long - Order Ref. 39

39

6670537

SEAL Bulk - Sold Per Foot
