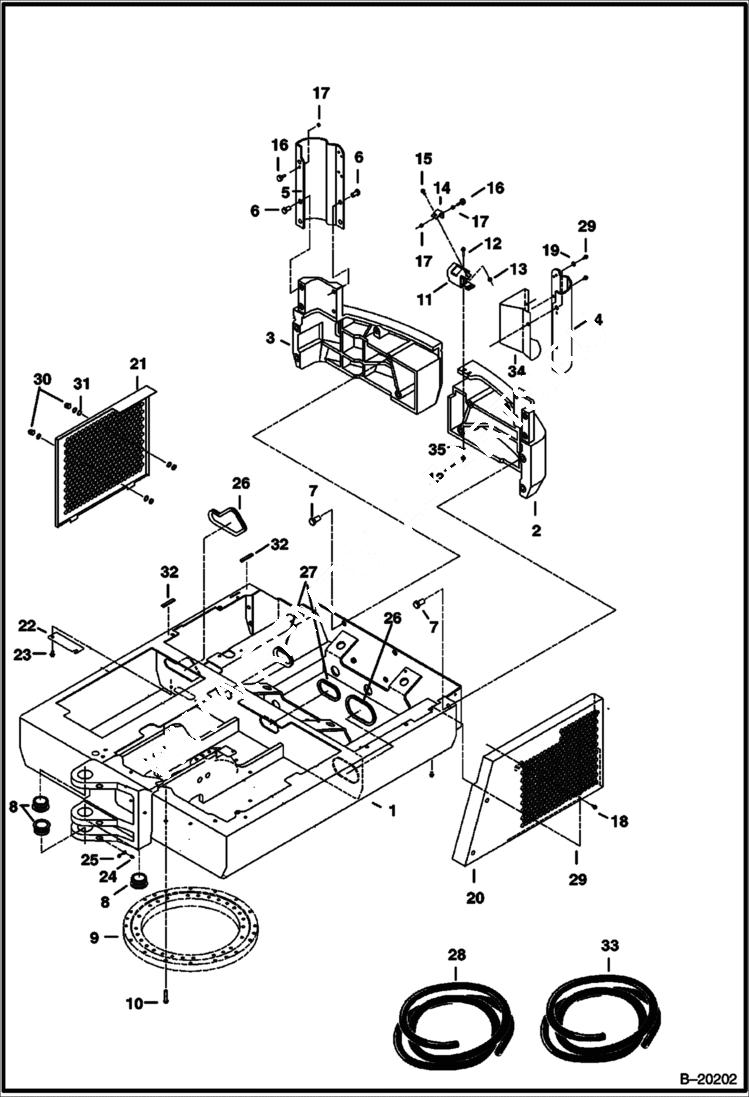

Запчасти Bobcat 331 UPPERSTRUCTURE, COUNTERWEIGHTS & SIDE COVERS MAIN FRAME

1

6589518

UPPERSTRUCTURE Frame

1

6596808

UPPERSTRUCTURE Frame

2

6588425

COUNTERWEIGHT NLA - left hand - Was 6588425

3

6588426

COUNTERWEIGHT Right hand

4

6587895

CORNER POST Left hand - Was 6589520 - A

5

6588131

CORNER POST Right hand

6

1CM1630

BOLT

7

1CM2040

BOLT

8

6588095

BUSHING, WELD-ON

9

BEARING See Illustration UNDERCARRIAGE/ B20210 - Swing

10

7CM1260

BOLT

11

6589060

BRACKET latch - rear door

12

29CM840

SCREW

13

43DM8

NUT Was 42DM00008B - B

14

6588539

ANGLE

15

29CM825

BOLT

16

6655399

BUMPER

17

61D5

NUT

18

26GM8016

SCREW

19

17EM80

WASHER

20

6589525

COVER Left hand

21

6589583

COVER Right hand

22

6596723

COVER Was 6539292 - A

23

26GM10020

BOLT

24

10H25

FITTING, GREASE 5

25

6652943

COVER grease fitting

26

MOULDING NLA - 20''long (500 mm) - Order Ref. 28

27

MOULDING NLA - 12''long (308mm)- Order Ref. 28

28

6659603

MOLDING Bulk - Order Per Foot

29

26GM8016

SCREW Was 29CM00816B - B

30

6674389

LOCK ASSY - Was 6661695 - A

30

6587458

KEY

31

6536802

WASHER

32

INSULATION NLA - 3.0'' (76mm) long - Order Ref. 33

33

SEAL NLA - bulk - sold per foot - Was 6632217 - B

34

TOOL BOX NLA - Was 6596086 - A

35

10EM80

WASHER
