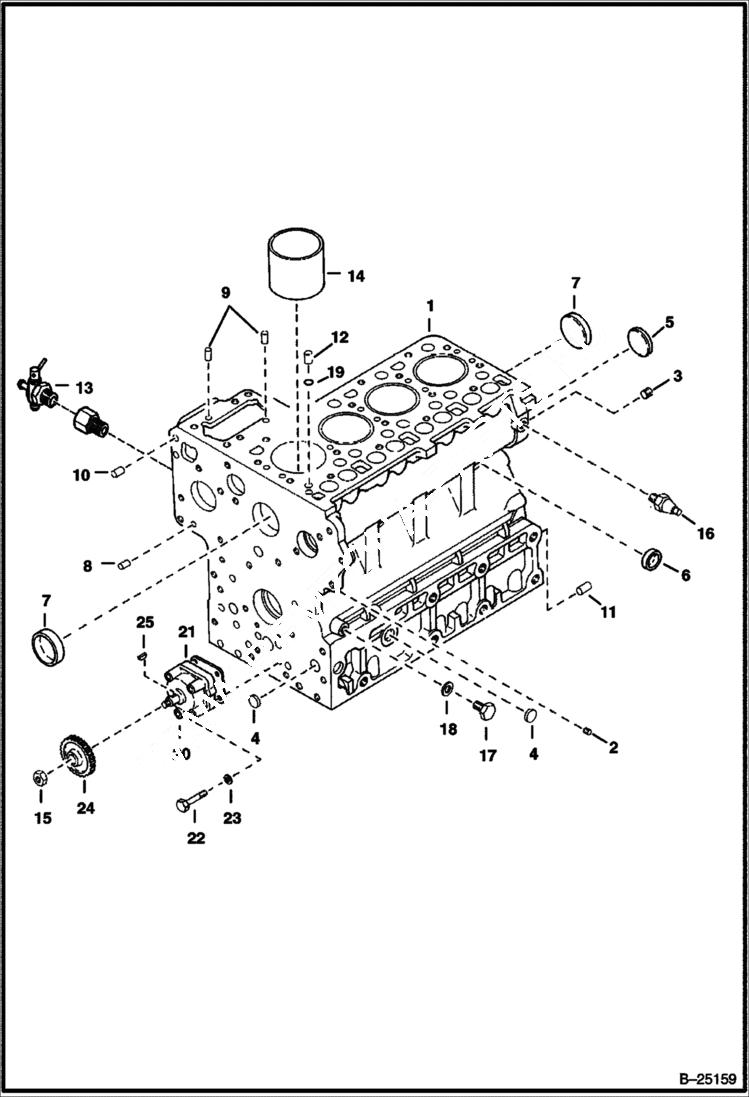

Запчасти Bobcat 331 CRANKCASE POWER UNIT

1

CRANKCASE NLA - W/Ref. 2-12 & 14 - Was 6655471 - A

2

6652574

PLUG

3

6652575

PLUG

4

4FM18

PLUG

5

4FM45

PLUG

6

3974389

CAP, SEALING

7

3974390

PLUG

8

3974393

PIN straight

9

3974394

PIN

10

3974395

PIN

11

3974868

PIN

12

3974037

PIN

13

3974677

PIPE Was 3974447B - A

14

6598704

LINER

15

6653888

NUT

16

6653952

OIL SWITCH

17

6655884

PLUG Was 3974051B - D

18

3974095

MET-GASK

19

3974038

O RING See Illustration UPPER GASKET KIT/ C3255 See Illustration UPPER GASKET KIT/ C3255 - Included W/Upper Gasket Kit

20

6598143

OIL PUMP

21

6666782

GASKET See Illustration LOWER GASKET KIT/ C3254 See Illustration LOWER GASKET KIT/ C3254 - Included W/Lower Gasket Kit - Was 3974456B - A

22

6655195

BOLT

23

6EM60

WASHER, SPRING

24

3975441

GEAR, CAMSHAFT

25

6652794

KEY
