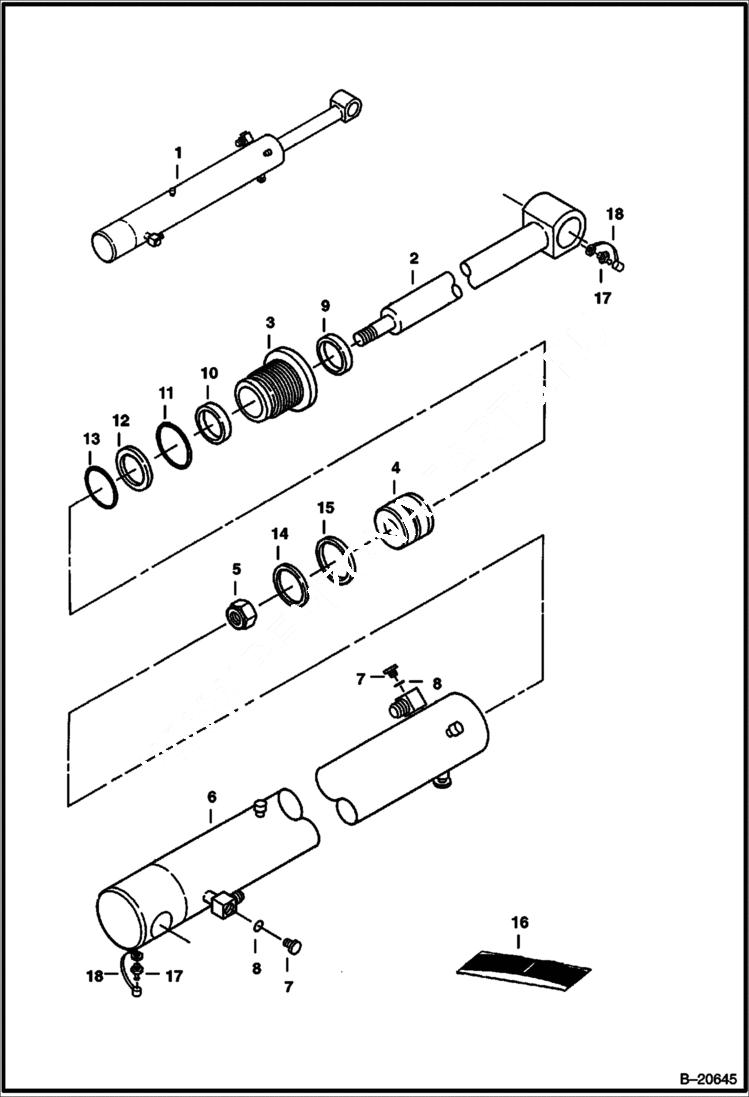

Запчасти Bobcat 331 BOOM CYLINDER (Service Replacement) HYDRAULIC SYSTEM

1

CYLINDER See Illustration BOOM CYLINDER/ C3501 NLA - Ref. 2-15 - Order 7156579 cylinder, (2) 6803982 bushings & (2) 6652915 dust seals - Was 6596575 - A

2

6596579

ROD

3

6586570

HEAD

4

6587573

PISTON

5

6810539

NUT Was 6804592 - A

6

HOUSING NLA - Order 7156579 cylinder, (2) 6652915 dust seal & (2) 6803982 bushings - Was 6596580 - A

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A

7

90KV5

PLUG tapered boss face

8

79K6

O RING 10 flat boss face-Was 91F000005B - A

8

95K6

O'RING tapered boss face

9

6686999

WIPER, ROD CYL Was 6666544 - A

10

6538140

SEAL

11

82K236

O-RING Was 58K000236B - A

12

73K234

BACK-UP RING back-up - Was 80K234 - A

13

58K234

O RING 10 Was 54K40300 - B

14

25K30226

O RING 10

15

6513466

PISTON RG

16

7137965

SEAL KIT Ref. 5 & 9-15 - Was 6816533 - A

17

10H25

FITTING, GREASE 5

18

6652943

COVER grease fitting
