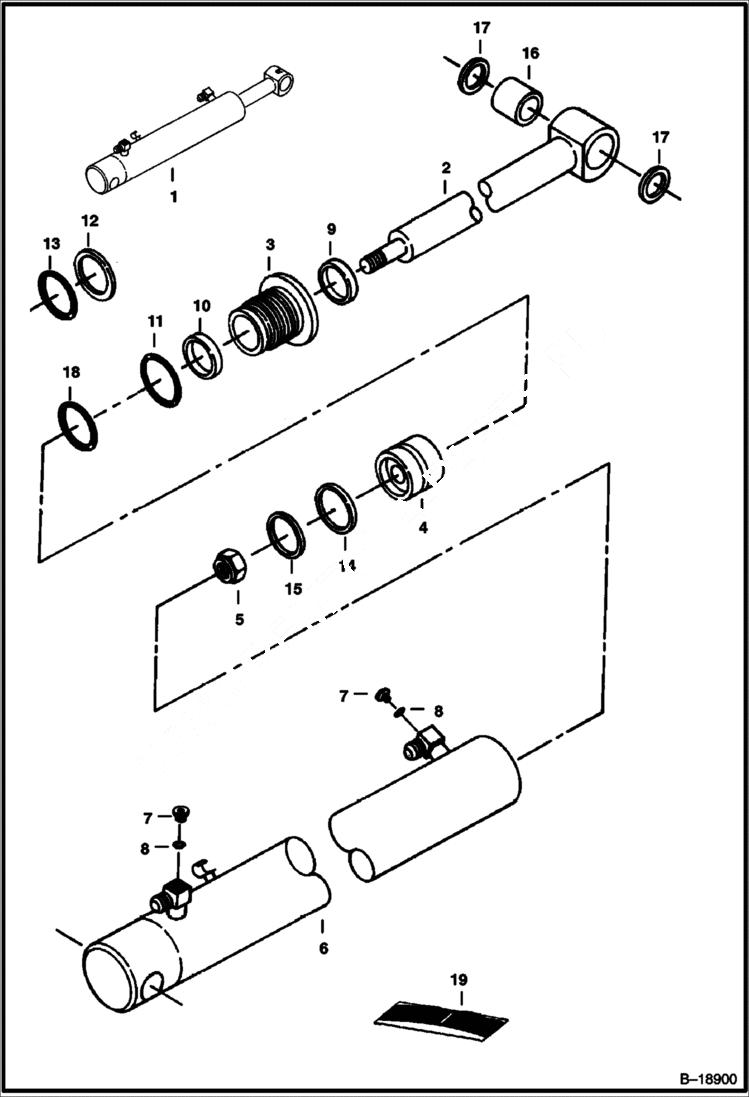

Запчасти Bobcat 331 ARM CYLINDER HYDRAULIC SYSTEM

1

6589397

CYLINDER Ref. 2-17

2

6589404

ROD W/Refs. 16 & 17

3

6586568

HEAD

4

6589401

PISTON

5

6810539

NUT Was 6804592 - A

6

6589403

HOUSING

7

PLUG NLA - W/Ref. 8 - flat boss face - Was 47K000005B - A

7

90KV5

PLUG W/Ref. 8 - tapered boss face

8

79K6

O RING 10 flat boss face-Was 91F000005B - A

8

95K6

O'RING tapered boss face

9

6686999

WIPER, ROD CYL Was 6666544 - A

10

6667327

SEAL Was NSS

11

58K234

O RING 10 Was 54K40300 - B

12

73K232

RING, BACK-UP back-up - Was 80K232 - A

13

25K40224

O RING 10 Was 54K40224 - B

14

25K30218

O RING 10 Was 54K30218 - B

15

947088

RING, BACK-UP Was NSS

16

6539220

BUSHING Was NSS

17

6652915

SEAL, OIL Was NSS

18

7008355

SEAL, QUAD

19

6804603

SEAL KIT W/Ref. 5 & 9-15 - Was 6587990 - A
