END COVER (3 Spool Valve)

Запчасти Bobcat 331 END COVER (3 Spool Valve) HYDRAULIC SYSTEM

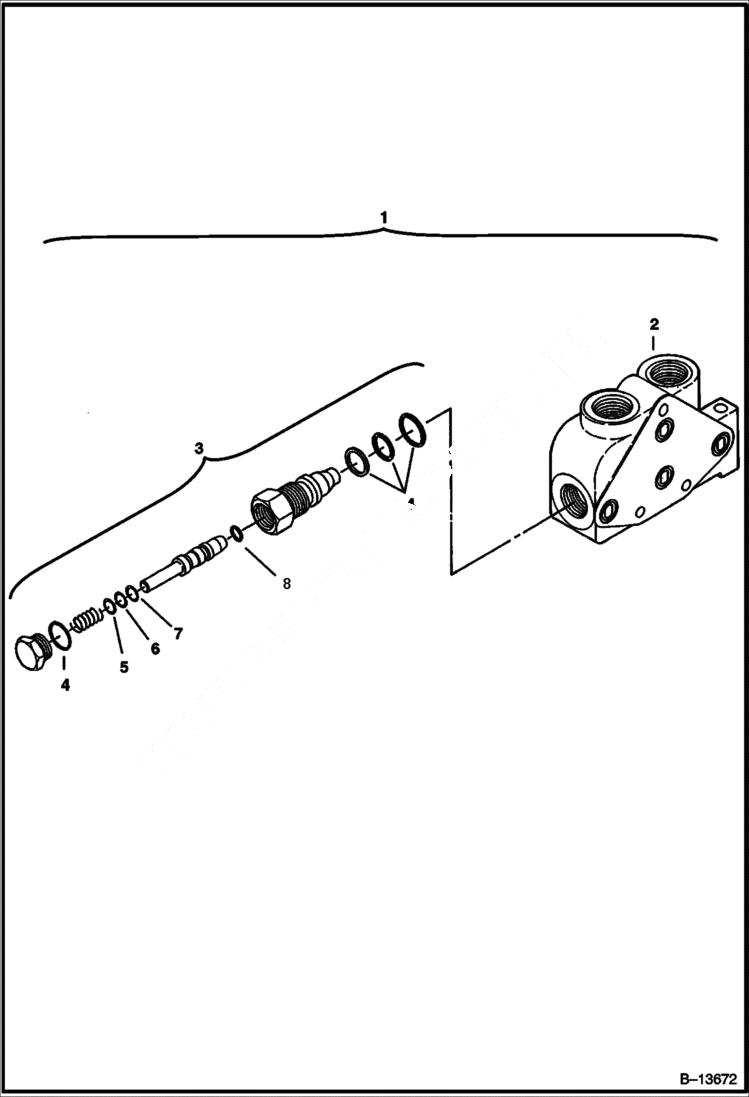

Схема запчастей Bobcat 331 - END COVER (3 Spool Valve) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6660496

COVER end - W/Ref. 2-4 - 3 spool

2

BODY NSS

3

6655930

RELIEF VALVE set at 2500 PSI - W/Ref. 4

4

6647710

SEAL KIT

5

896265

SHIM .010'' (0,25 mm) thick

6

896264

SHIM .020'' (0,5 mm) thick

7

896263

SHIM .040'' (1,0 mm) thick

8

SEAL NLA - Order Ref. 3
