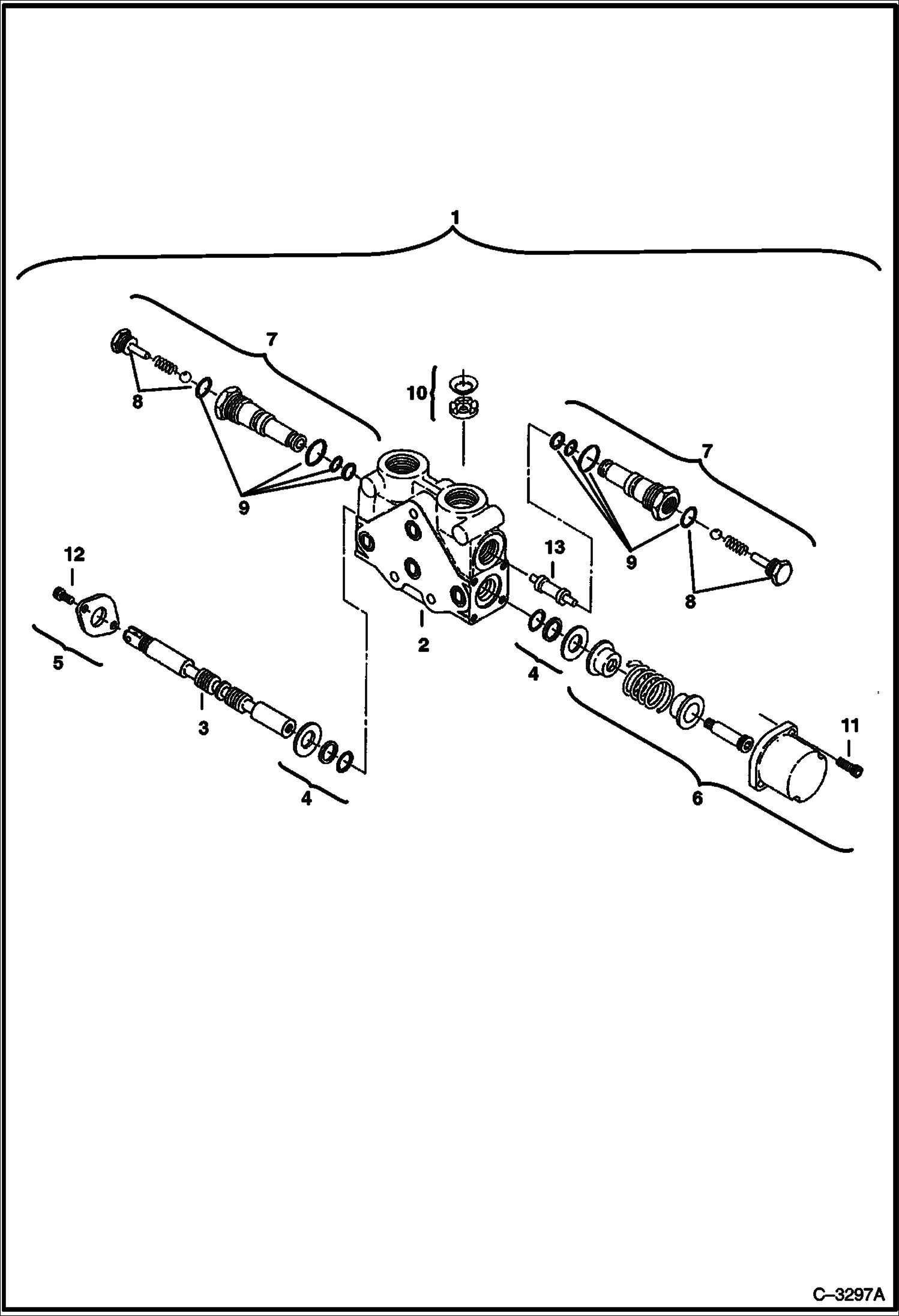

Запчасти Bobcat 331 VALVE SECTION (Boom Swing) (3 Spool Valve) HYDRAULIC SYSTEM

1

6660756

VALVE SECTION boom swing - W/Ref. 2-11

2

BODY NSS

3

SPOOL NSS

4

6660741

SEAL KIT spool

5

6660740

RETAINER ASSY. W/Ref. 11

6

6660738

POSITIONER spool - W/Ref. 10

7

6647697

CHECK VALVE lockout - W/Refs. 8 & 9

8

CHECK VALVE NLA - Order Ref. 7 - Was 6660759 - A

9

6660762

SEAL KIT

10

6660760

RESTRICTOR

11

73G412

SCREW

12

73G408

SCREW

13

6647698

PISTON
