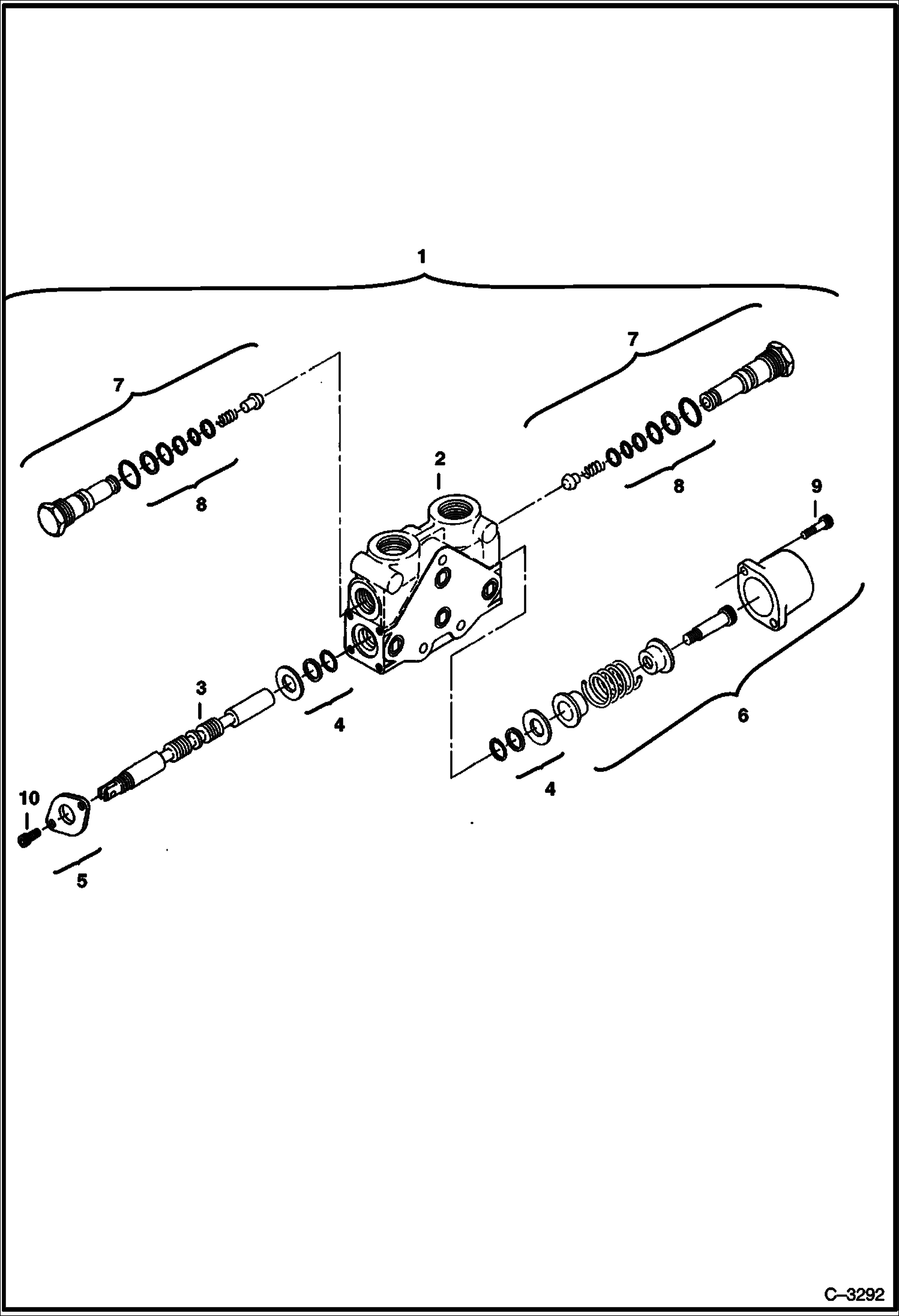

Запчасти Bobcat 331 VALVE SECTION (Auxiliary) (6 Spool Valve) HYDRAULIC SYSTEM

1

6660500

VALVE SECTION auxiliary - Ref. 2-10

2

BODY NSS

3

SPOOL NSS

4

6660741

SEAL KIT spool

5

6660740

RETAINER ASSY. W/Ref. 10

6

6660747

POSITIONER spool - W/Ref. 9

7

6647713

PLUG load check -W/Ref. 3

8

6647719

SEAL KIT

9

73G412

SCREW

10

73G408

SCREW
