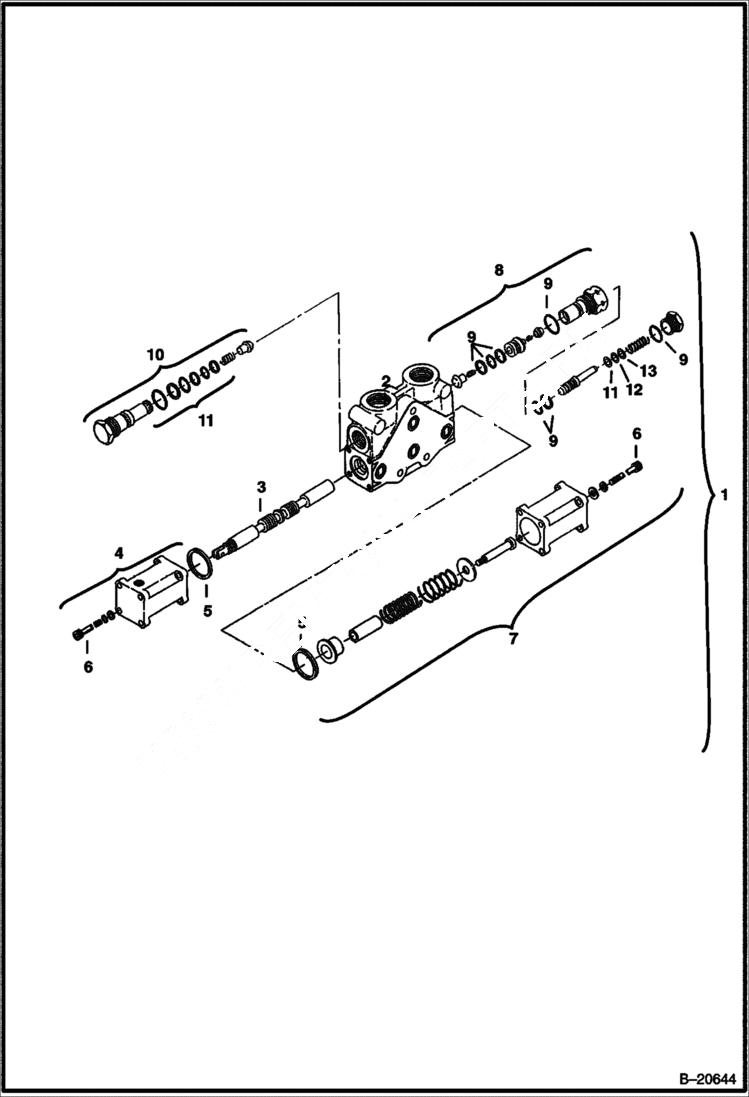

Запчасти Bobcat 331 VALVE SECTION (Bucket) (6 Spool Valve) HYDRAULIC SYSTEM

1

6660499

VALVE SECTION bucket - W/Refs. 2-12

2

BODY NSS

3

SPOOL NSS

4

6660742

POSITIONER spool - W/Refs. 5 & 6

5

6660743

SEAL positioner

6

6665439

SCREW Was 73G000448B - A

7

6660744

POSITIONER spool - W/Refs. 5 & 6

8

6660746

RELIEF VALVE set at 3400 PSI - W/Ref. 9 & 11

9

6647693

SEAL KIT

10

6647713

PLUG load check - W/Ref. 12

11

896265

SHIM .010'' (0,25 mm) thick

12

896264

SHIM .020 (0,5 mm) thick

13

896263

SHIM .040 (1,0 mm) thick
