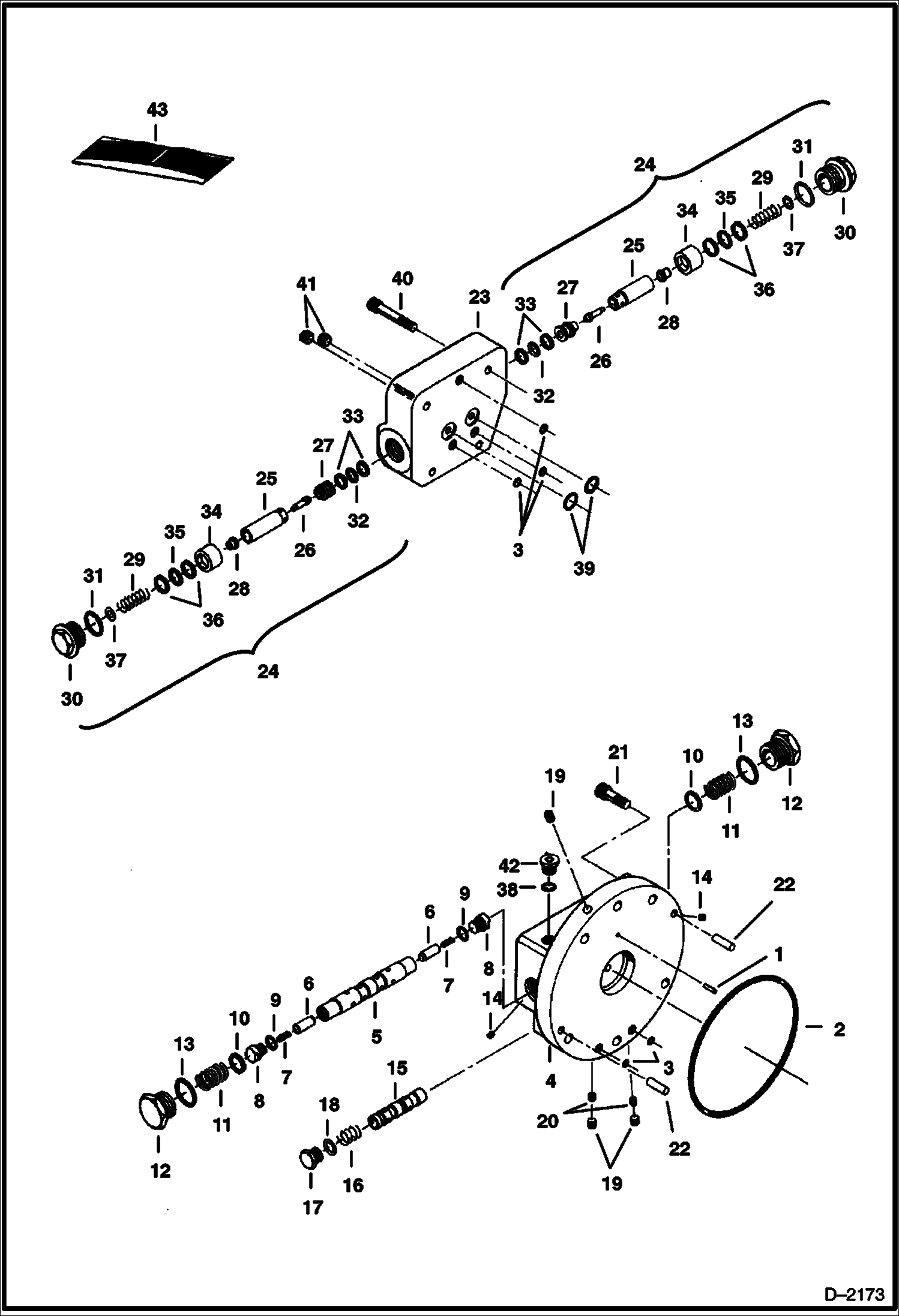

Запчасти Bobcat 331 TRAVEL MOTOR (Crossover Relief Valve) HYDRAULIC SYSTEM

1

6653018

PIN

2

6670226

O-RING Was 6660697 - A

3

6670227

O-RING Was 6658422 - A

4

6660698

HOUSING ASSY. W/Refs. 5-9

5

6660700

SPOOL

6

6657164

CHECK VALVE

7

6657165

SPRING

8

6657166

PLUG

9

6670221

O-RING Was 6657167 - A

10

6657168

SEAT spring

11

6660701

SPRING

12

6660702

PLUG

13

6670222

O-RING Was 6657171 - A

14

ORIFICE NLA - Was 6660703 - A

15

6660704

SPOOL

16

6660705

SPRING

17

6660706

PLUG

18

6670223

O-RING Was6653442 - A

19

PLUG NLA - Was 6658350 - A

20

6660708

ORIFICE

21

BOLT NLA - Was 6657179 - A

22

6657159

PIN

23

VALVE NLA - relief - W/Refs. 24-37 - Was 6660709 - A

24

RELIEF VALVE NLA - W/Refs. 25-37

25

SPOOL NLA

26

POPPET NLA

27

SEAT NLA - poppet

28

SEAT NLA - spring

29

SPRING NLA

30

PLUG NLA

31

6670228

O-RING Was 6653017 - A

32

6670229

O-RING Was 6660718 - A

33

6670231

RING back-up - Was 6660719 - A

34

PISTON NLA

35

6670232

O-RING Was6660721 - A

36

6670230

RING back-up - Was 6660722 - A

37

SHIM NLA

38

6670224

O-RING Was 6653023 - A

39

6670225

O-RING Was 6660724 - A

40

6660725

BOLT

41

PLUG NLA - Was 6653190 - A

42

6660726

PLUG

43

6670148

SEAL KIT Incl. Ref. 2 ,3(2), 9(2), 13(2), 18(2), 31(2), 32(2), 33(4), 35(2), 36(4), 38(8), 39(2), & Ref. 3, 26 & 32 on Ill. D2172 - Was 6669374 - A

43

6670149

SEAL KIT Does not include REF. 3 on Ill. D2172 - Incls. Ref. 2, 3(5), 9(2), 13(2), 18(2), 31(2), 32(2), 33(4), 35(2), 36(4), 38 & 39(2) & Ref. 26 & 32 on Ill D2172
