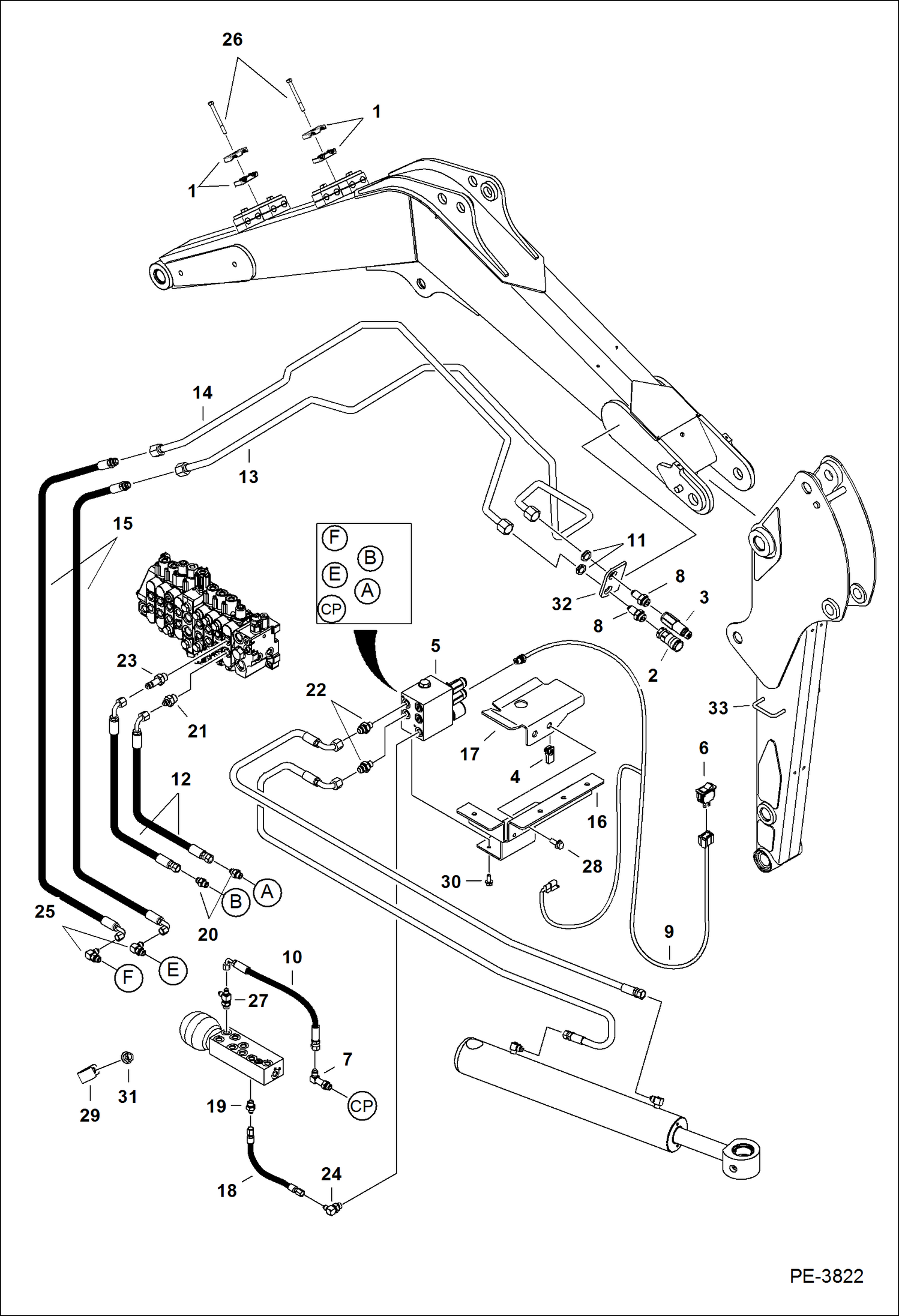

Запчасти Bobcat 331 SECONDARY AUXILIARY (Option) ACCESSORIES & OPTIONS

1

6577697

CLAMP

2

6672960

COUPLER, FF FEMALE straight

3

6674688

COUPLER, FF MALE straight

4

6675722

NUT

5

6679888

VALVE ASSY See Illustration SECONDARY AUXILIARY VALVE/ MS1471

6

6679906

SWITCH

7

6812815

FITTING

7

79K6

O RING 10

8

6812816

ADAPTER

8

79K12

O RING 10

9

6958338

HARNESS

10

6958352

HOSE

11

86F7

LOCK NUT

12

7140049

HOSE

13

7159380

TUBELINE, HYD

14

7159381

TUBELINE, HYD

15

7159382

HOSE, HYD ASSY

16

7162986

BRACKET, BATTERY

17

7162987

BRACKET, BATTERY

18

7170356

HOSE, HYD ASSY

19

15KB0406

FTG HYD S CONNECTOR

19

79K6

O RING 10

20

15KB0606

FITTING, HYD CONNECTOR

20

79K6

O RING 10

21

15KB0608

FITTING, HYD CONNECTOR

21

79K8

O RING 10

22

15KB0806

FITTING, HYD CONNECTOR

22

79K4

O RING 10

23

16KB0608

FITTING, HYD CONNECTOR

23

79K8

O RING 10

24

17KB0406

FITTING, HYD ELBOW

24

79K6

O RING 10

25

17KB0606

FITTING

25

79K6

O RING 10

26

1CM880

BOLT

27

21KB0406

FTG HYD STRAIGHT TEE

27

79K6

O RING 10

28

29CM1025

BOLT

29

30H50

CLIP

30

31C512

BOLT

31

51DM10

NUT

32

6958354

PLATE weld on

33

6586391

GUIDE weld-on
