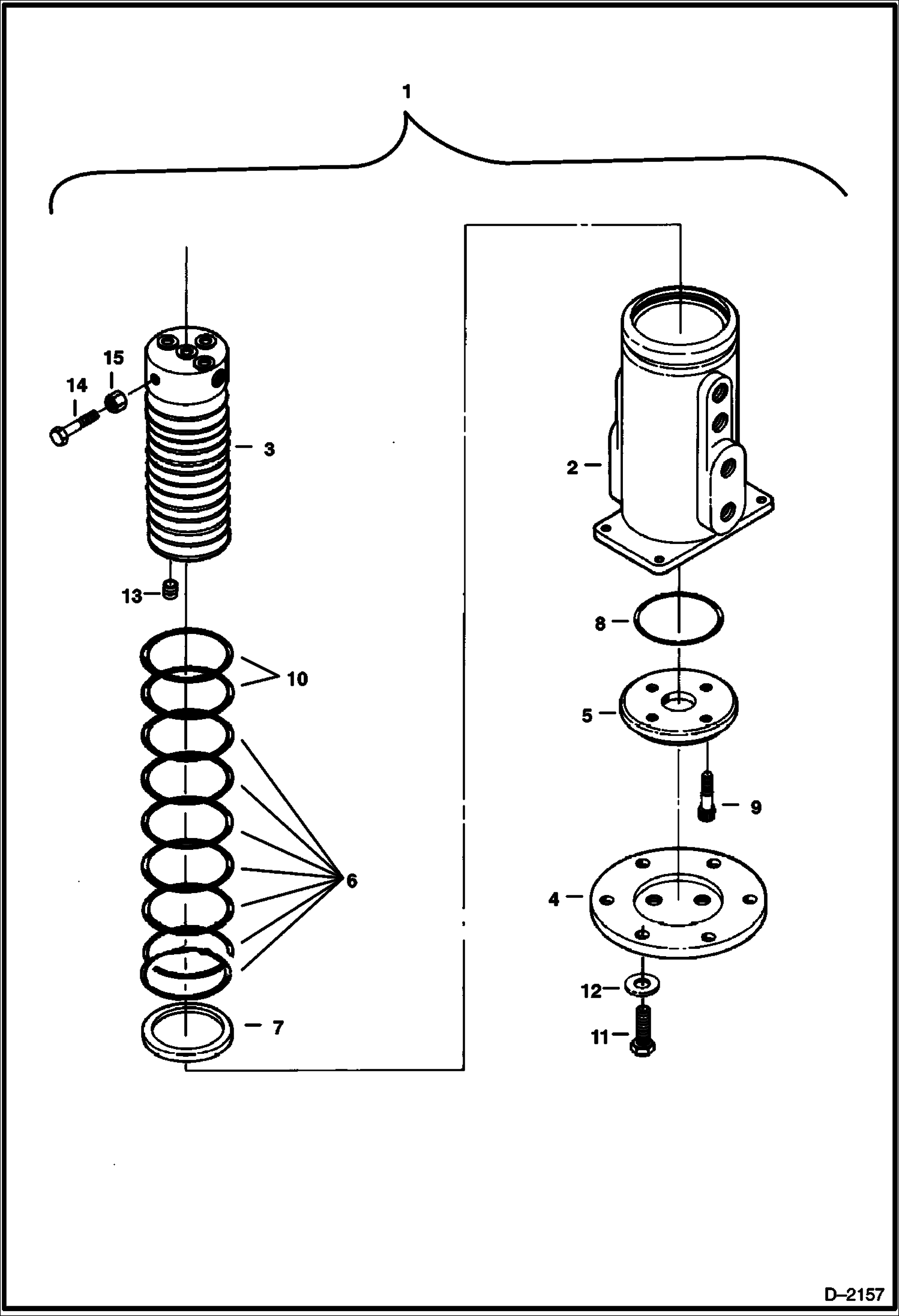

Запчасти Bobcat 331 SWIVEL JOINT (S/N 20001-20097) HYDRAULIC SYSTEM

1

SWIVEL JOINT See BTIE-026 - NLA - Assy. Ref. 2-15 - Was 6659566 - A

2

BODY NSS

3

ROTOR NSS

4

COVER NSS

5

CAP NSS

6

6534251

O-RING

7

6655076

SEAL

8

6534252

O-RING

9

7GM1020

BOLT

10

6534253

O-RING

11

1CM825

BOLT

12

6EM80

WASHER, SPRING

13

6655075

PLUG

14

BOLT See Illustration SWIVEL JOINT/ PE3057 - NLA - Use W/NLA 6536478 nut - Order 6810029 swivel stop - Was 6536147 - A

15

NUT Use W/NLA 6536147 screw - Was 6536748 - B
