Запчасти Bobcat 331 HVAC (HVAC Kit) ACCESSORIES & OPTIONS

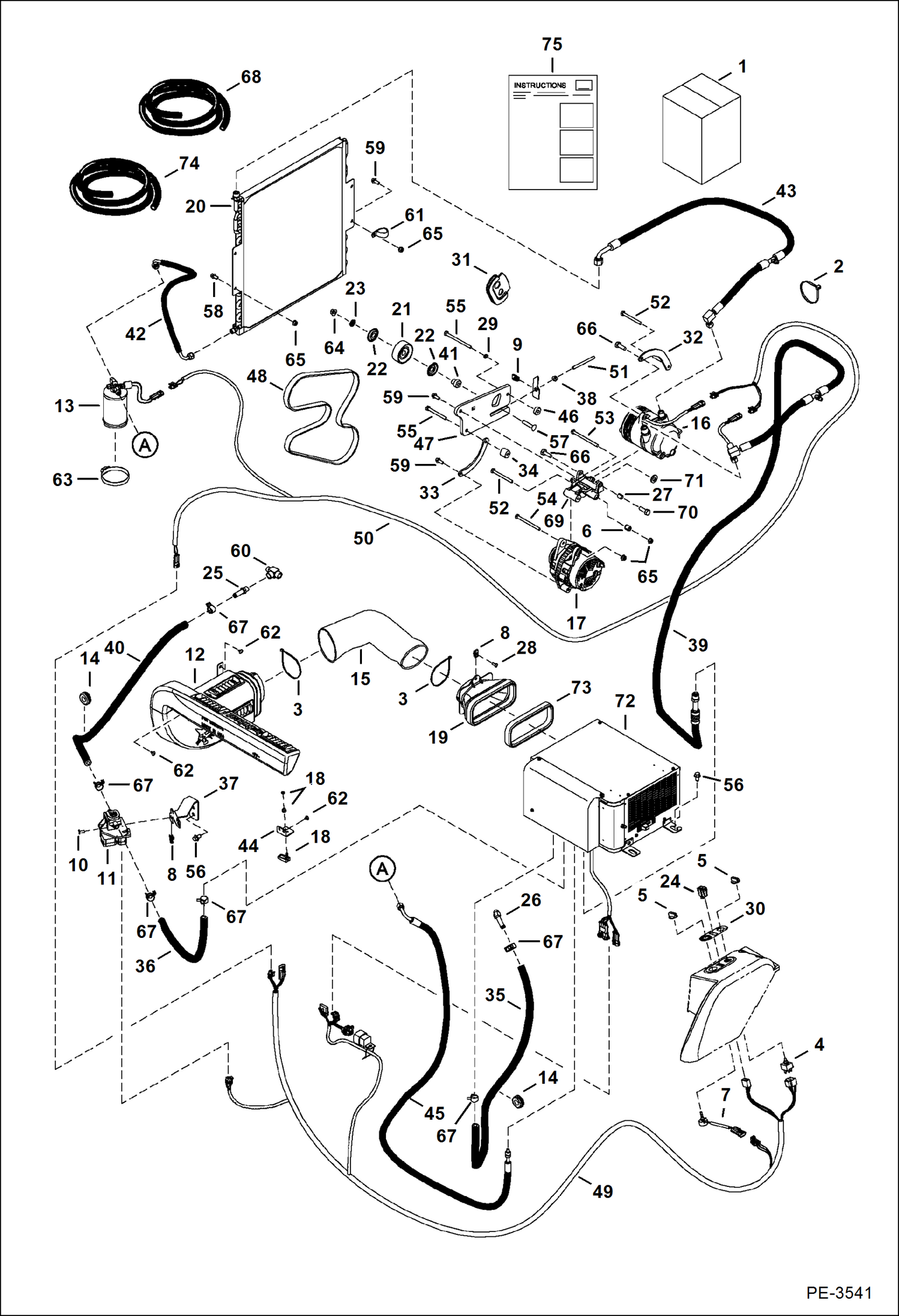

Схема запчастей Bobcat 331 - HVAC (HVAC Kit) ACCESSORIES & OPTIONS

Артикул

Название

Примечание

Количество

1

7136654

HVAC KIT W/Ref. 2-16 & 18-75

2

6610510

TIE cable

3

6624289

STRAP, TIE cable

4

6675176

SWITCH blower

5

6675177

KNOB

6

6675838

BUSHING

7

6693148

RESISTOR temp control

8

6676026

NUT

9

6676169

NUT

10

29CM616

BOLT

11

7003456

VALVE, MOTORIZED ASSY - Was 6693147 - B

12

DUCT See Illustration HEATER/HVAC/ PE2865

13

6680311

RECEIVER W/switch 6686358

14

7136776

GROMMET

15

6681653

HOSE

16

6681716

COMPRESSOR, A/C

17

6681857

ALTERNATOR not in kit

18

6681878

LATCH

19

6681881

DUCT W/Ref. 73

20

6682037

CONDENSER

21

6684418

IDLER

22

6685132

SHIELD

23

6704444

WASHER

24

7169112

SWITCH, ROCKER A/C Was 6719176 - A

25

6731084

ADAPTER

26

6731085

ELBOW

27

6732732

BUSHING

28

6803202

SCREW

29

6807220

SPACER

30

6808433

DECAL heater

31

6808436

GROMMET

32

6813975

PLATE

33

6814859

TENSIONER

34

6814861

SPACER

35

HOSE NLA - 72'' (1829 mm) long - Order Ref. 68

36

HOSE NLA - 21'' (534 mm) long - Order Ref. 68

37

7140437

BRACKET

38

43DM8

NUT

39

6816871

HOSE

39

6697949

HOSE, A/C Use on 337 & 341

39

7001433

CAP, END charge port cap

40

HOSE NLA - 48'' (1220 mm) long - Order Ref. 68

41

6817028

SPACER

42

6817088

HOSE

43

6817091

HOSE

43

6697948

HOSE, A/C Use on 337 & 341

43

7001433

CAP, END charge port cap

44

6817093

ANGLE

45

6688529

HOSE

46

6818176

SPACER

47

7151981

TENSIONER W/A

47

6818217

TENSIONER not used on this model - used on older models

48

6818326

BELT

48

6697879

BELT, A/C not used on this model

48

7101068

BELT not used on this model - used on older models

48

6697876

BELT EMEA Only

49

6818333

HARNESS HVAC

50

6818334

HARNESS A/C clutch

51

6818366

SCREW

52

1CM880

BOLT

53

1CM885

BOLT

54

1CM8100

SCREW

55

1CM8110

HEX CAP S

56

26GM10020

BOLT

57

28CM1050

BOLT

58

29CM816

SCREW

59

29CM820

SCREW

60

30F2

TEE

61

30H57

CLAMP

62

6589675

SCREW

63

42H48

CLAMP 5

64

43DM10

NUT

65

51DM8

NUT

66

5CM1025

BOLT

67

5HM20

CLAMP

68

6565977

HOSE bulk - sold per foot

69

7103231

BRACKET

70

5CM1035

BOLT

71

29E6

WASHER Was 28E6 - A

72

7135617

HVAC BOX See Illustration HVAC/ MS1474

73

SEAL NLA - 22'' (559 mm) long - Order Ref. 74

74

6681884

SEAL bulk - sold per foot

75

6904988

INSTRUCTIONS

Выбрано товаров: 83
