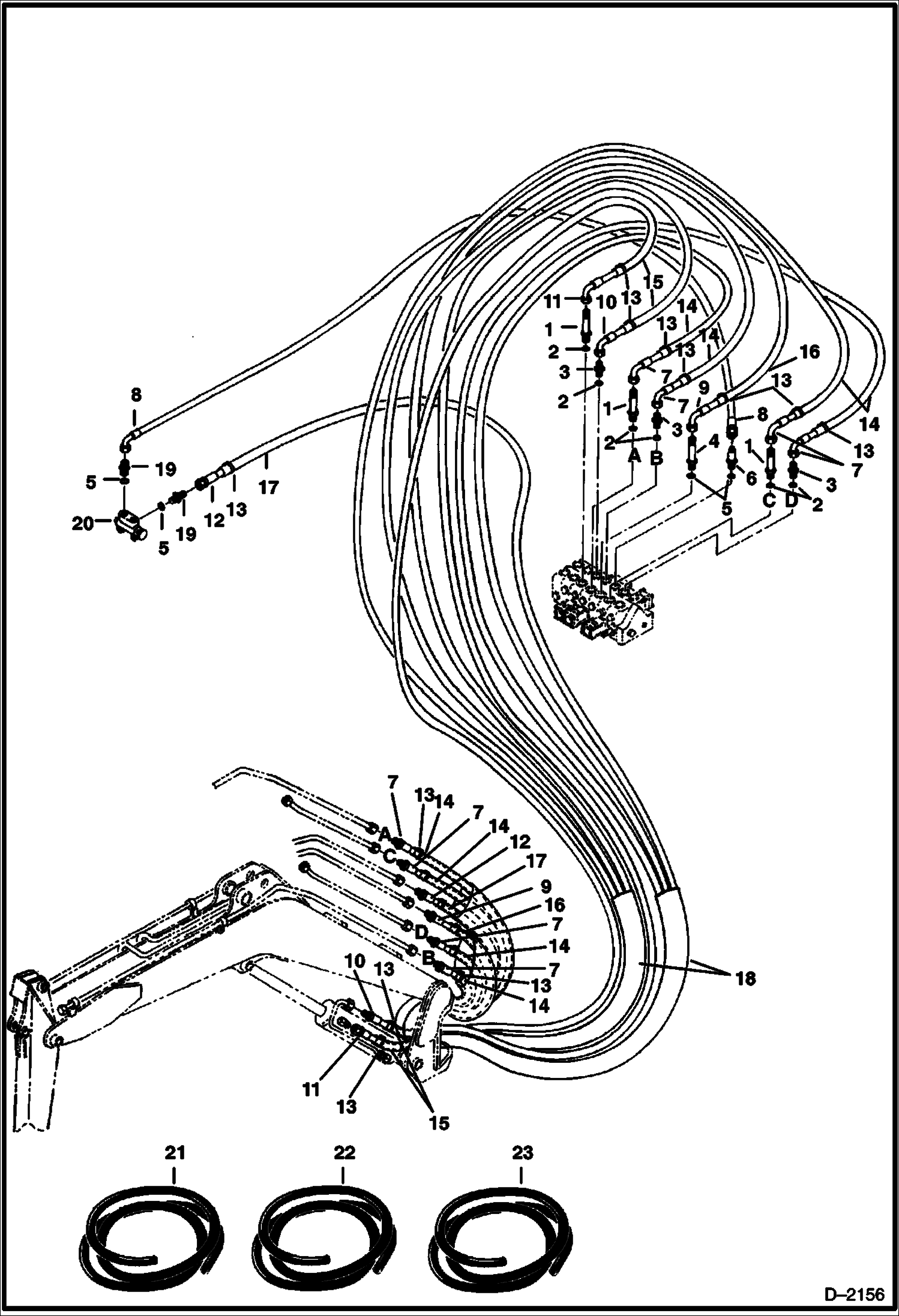

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Boom, Arm, Bucket & Auxiliary) HYDRAULIC SYSTEM

1

6646581

CONNECTOR W/Ref. 2

2

79K10

O RING 10

3

731794

CONNECTR W/Ref. 2

4

15K8

FITTING W/Ref. 5

5

79K12

O RING 10

6

17K8

FITTING W/Ref. 5

7

6589616

HOSE Incl. Hose Cover Ref. 14 - Was 6537696 - A

8

6628110

HOSE Was 6539846 - A

9

6628357

HOSE Incl. hose cover Ref. 15 - Was 6629357 - A

10

6800630

HOSE Incl. hose cover Ref. 15 - Was 6528358 - A

11

6628359

HOSE Incl. hose cover Ref. 15 - Was 6589619 - A

12

6668188

HOSE Incl. hose cover Ref. 17 - Was 6589625 - A

13

6665221

CABLE TIE metal - requires tool MEL-1427 to install cable tie - Was 6610510 - B

14

COVER NLA - 120'' (3048 mm) long - Order ref. 22

15

COVER NLA - 110'' (2794 mm) long - Order Ref. 22

16

COVER NLA - 118'' (2997 mm) long - Order Ref. 22

17

COVER NLA - 126'' (3200 mm) long - Order Ref. 22

18

COVER NLA - 66'' (1676 mm) long - Order Ref. 23

19

15K8

FITTING W/Ref. 5

20

VALVE See Illustration SELECTOR VALVE/ B13660 - selector

21

6656155

HOSE COVER bulk - sold per foot - 1.25'' (31,8mm) ID

22

6652367

HOSE COVER bulk 1-1/2'' I.D. - Sold Per Foot

23

6660643

COVER bulk 2-1/2'' I.D. - Sold Per Foot
