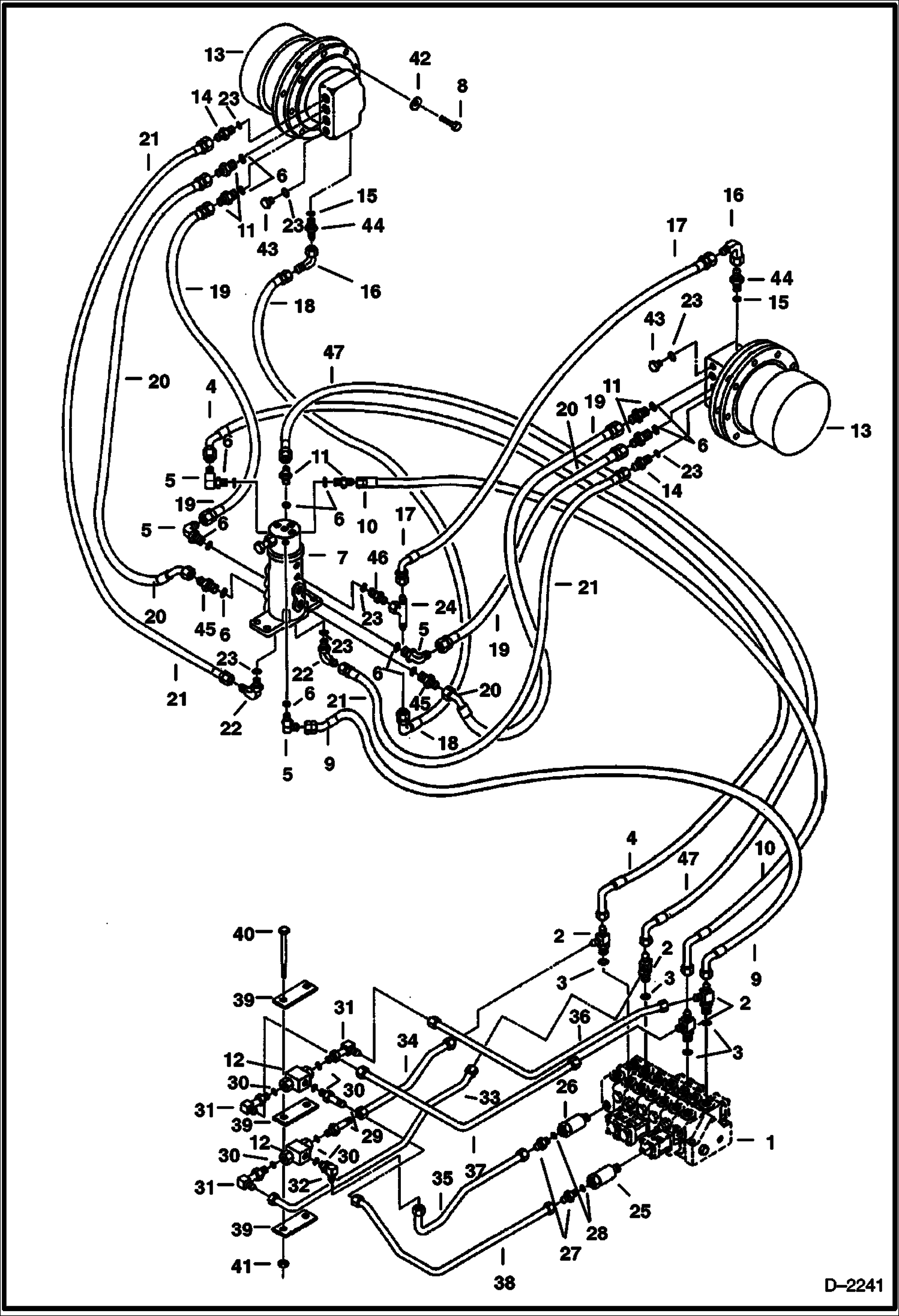

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valve to Travel Motors) (S/N 20001-20097) HYDRAULIC SYSTEM

1

VALVE See Illustration 6 SPOOL VALVE/ D2225 - assy

2

6587567

TEE W/Ref. 3

3

79K10

O RING 10

4

6588357

HOSE

5

6654893

ELBOW W/Ref. 6 - Use W/swivel joint 6659566

5

17K6

ELBOW W/Ref. 6 - Use W/Swivel Joint 6664415

6

6655245

O-RING Use W/elbow 6654893

6

79K8

O RING 10 Use W/elbow 17K-6

7

SWIVEL JOINT See Illustration SWIVEL JOINT/ D2157

8

1CM1235

BOLT

9

6588358

HOSE

10

6539835

HOSE

11

6655835

ADAPTER W/Ref. 6

12

6662638

VALVE shuttle

13

MOTOR See Illustration TRAVEL MOTOR/ D2172 - drive

14

6654895

ADAPTER W/Ref. 23

15

6655250

O-RING

16

11K5

FITTING

17

6618198

HOSE

18

6532638

HOSE

19

6539849

HOSE

20

6539850

HOSE

21

6534012

HOSE

22

6657392

ELBOW W/Ref. 23 - Use W/swivel joint 6659566

22

17K5

ELBOW W/Ref. 30 - Use W/swivel joint 6664415

23

6655244

O-RING

24

14K5

TEE

25

RELIEF VALVE See Illustration VALVE SECTION/ C3330

26

RELIEF VALVE See Illustration END COVER/ C3329

27

CONNECTOR NLA - W/Ref. 28 - Was 6579648 - A

28

79K4

O RING 10

29

16K5

FITTING W/Ref. 30

30

79K6

O RING 10

31

6558510

ELBOW W/Ref. 30

32

17K5

ELBOW W/Ref. 30

33

6587557

TUBE

34

6587558

TUBE

35

6587559

TUBE

36

6587560

TUBE

37

6587561

TUBE

38

6587562

TUBE

39

6539489

PLATE

40

1CM890

BOLT

41

49DM8

NUT

42

6EM120

WASHER

43

6653022

PLUG W/Ref. 23

44

6654375

ADAPTER W/Ref. 15

45

6655835

ADAPTER W/Ref. 6 - Use W/swivel joint 6659566

45

15K6

ADAPTER W/Ref. 6 - Use W/swivel joint 6664415

46

6654895

ADAPTER W/Ref. 23 - Use W/swivel joint 6659566

46

15K6

ADAPTER W/Ref. 6 - Use W/swivel joint 6664415

47

6536783

HOSE
