Запчасти Bobcat 331 GEARCASE (S/N E/ 9FZ999 & Below) POWER UNIT

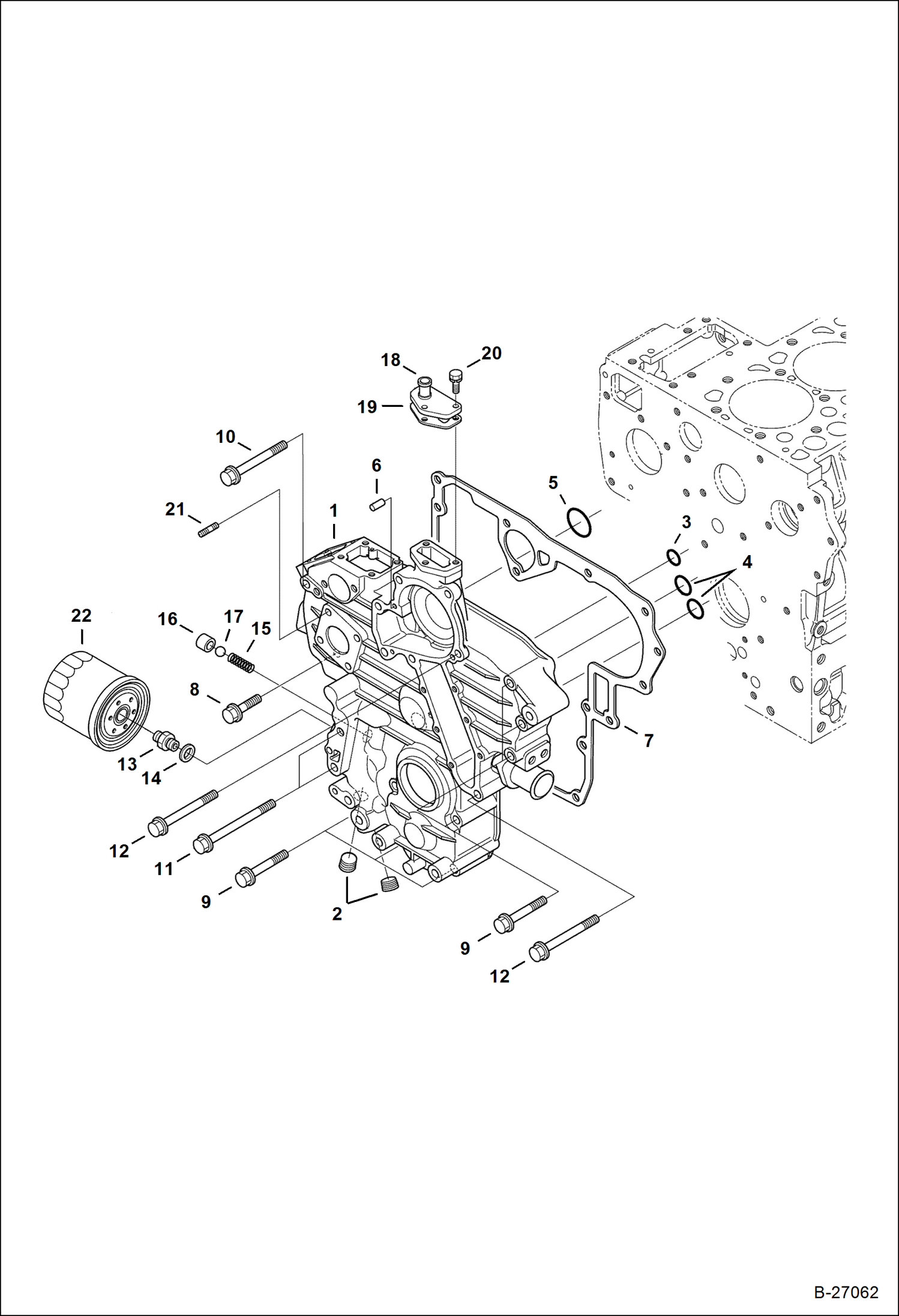

Схема запчастей Bobcat 331 - GEARCASE (S/N E/ 9FZ999 & Below) POWER UNIT

Артикул

Название

Примечание

Количество

1

HOUSING, GEAR NLA - W/Ref. 2 - Order 7015260 housing & 7010599 gasket and DO NOT USE Ref. 3-5 - Was 6686045 - A

2

6672360

PLUG

3

6685466

O-RING

4

6685467

O-RING

5

6685468

O-RING

6

3974395

PIN

7

6684770

GASKET

8

6680706

BOLT

9

6692375

BOLT

10

6680686

BOLT

11

6692376

BOLT

12

6692377

BOLT

13

6653809

CONNECTOR

14

6685501

WASHER

15

6652652

SPRING

16

3974893

SEAT

17

10J13

BALL Was 6969574 - A

18

3974894

FLANGE

19

6666803

GASKET

20

1CM620

BOLT Was 4CM620 - A

21

6652764

STUD

22

6675517

FILTER, OIL ENG 12

Выбрано товаров: 22
