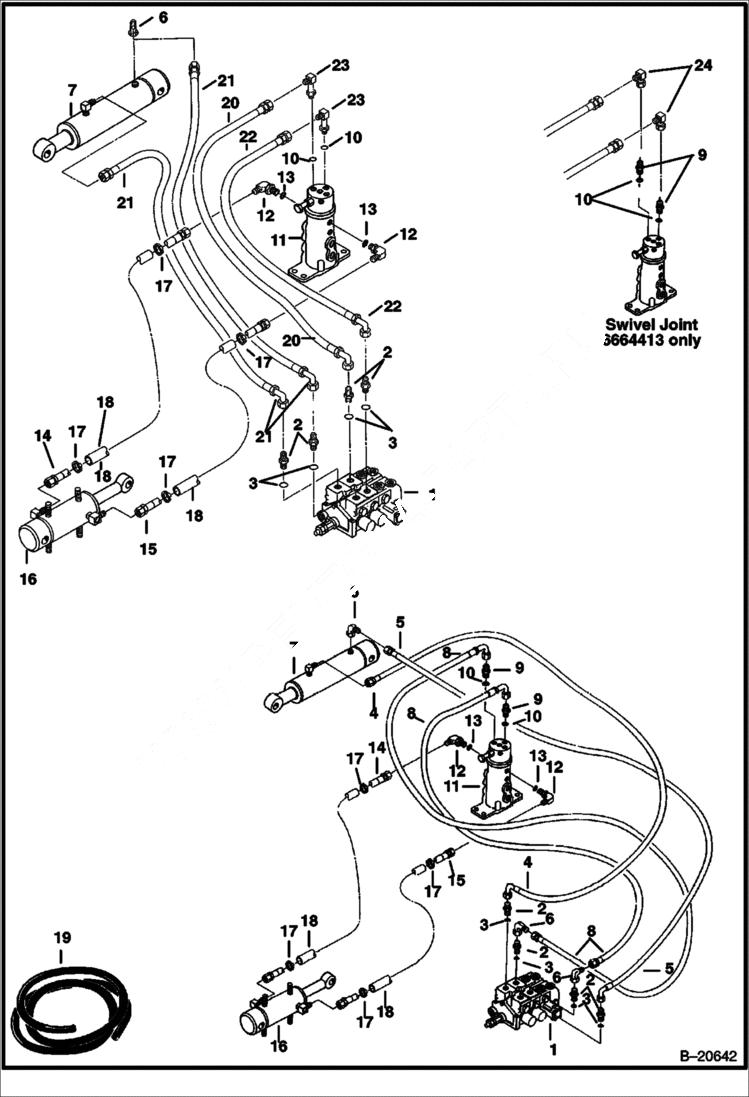

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valve to Blade Cylinder to Swing Cylinder) HYDRAULIC SYSTEM

1

VALVE See Illustration 3 SPOOL VALVE/ C3295 - assy

2

743108

FITTING W/Ref. 3

3

79K8

O RING 10

4

HOSE See BTIE-044 - NLA - Was 6537629 - A

5

HOSE See BTIE-044 - NLA - Was 6537630 - A

6

11K5

FITTING

7

CYLINDER See Illustration SWING CYLINDER/ C3287A See Illustration SWING CYLINDER/ C3287 - Boom Swing

8

HOSE See BTIE-044 - NLA - Was 6537631 - A

9

15K5

FITTING W/Ref. 10 - Was 6654895 - B

10

6655250

O-RING Use W/Adapter 6654895

10

79K6

O RING 10 Use W/Adapter 15K000005B

11

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057 See Illustration SWIVEL JOINT/ D2157

12

6657392

ELBOW W/Ref. 13 - Use W/Swivel Joint 6659566

12

17K5

ELBOW W/Ref. 13 - Use W/swivel joint 6664413

13

6655244

O-RING Use W/Elbow 6653392

13

79K6

O RING 10 Use W/Elbow 17K000005B

14

6628365

HOSE incl. Refs. 17& 18 - Was 6589624 - A

15

6628364

HOSE incl. Refs. 17 & 18 - Was 6589623 - A

16

CYLINDER See Illustration BLADE CYLINDER/ B18901A See Illustration BLADE CYLINDER/ B18901 - blade

17

6665221

CABLE TIE metal - requires tool MEL-1427 to install cable tie

18

COVER NLA - 53'' (1330 mm) long - Order Ref. 19

19

6656155

HOSE COVER bulk - sold per foot

20

6539087

HOSE

21

6537631

HOSE

22

6640724

HOSE

23

6558510

ELBOW W/Ref. 10

24

11K5

FITTING Use W/Swivel Joint 6664413
