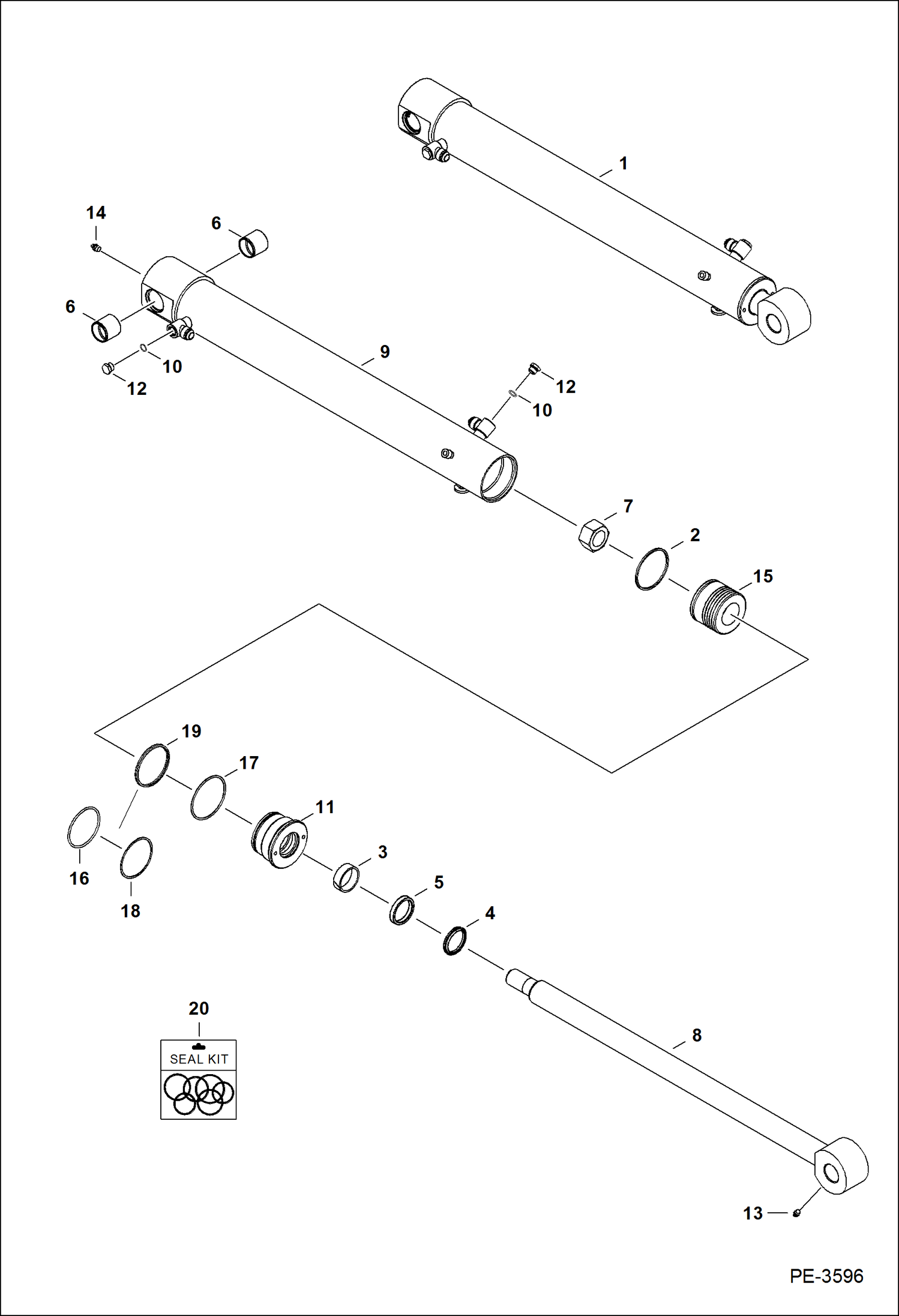

Запчасти Bobcat 331 BOOM CYLINDER HYDRAULIC SYSTEM

1

7156133

CYLINDER, BOOM Ref. 2-18 - Also Order (2) of 6652915 dust seal - this cylinder includes Ref. 6 bushings

2

6685444

SEAL 2.46'' (62,53 mm) ID

3

7000771

RING, WEAR Was 6698133 - A

4

6686999

WIPER, ROD CYL

5

6667327

SEAL

6

6803982

BUSHING

7

6810540

NUT

8

7148523

ROD Also Order Ref. 13

9

7100743

HOUSING Also Order Ref. 6 & (2) of 6652915 dust seal

10

75K7

O-RING

11

6817562

HEAD

12

6816855

PLUG

13

10H25

FITTING, GREASE 5 grease - straight

14

12H15

FITTING, GREASE 5 grease - 90 degree

15

6693529

PISTON ASMBLY W/Ref. 2 & W/2 piece non-replaceable wear rings

16

25K40224

O RING 10

17

58K234

O RING 10

18

73K232

RING, BACK-UP back-up

19

7008355

SEAL, QUAD

20

7197632

KIT, SEAL Ref. 2-5, 7, 16-18 - Was 7162061 - A
