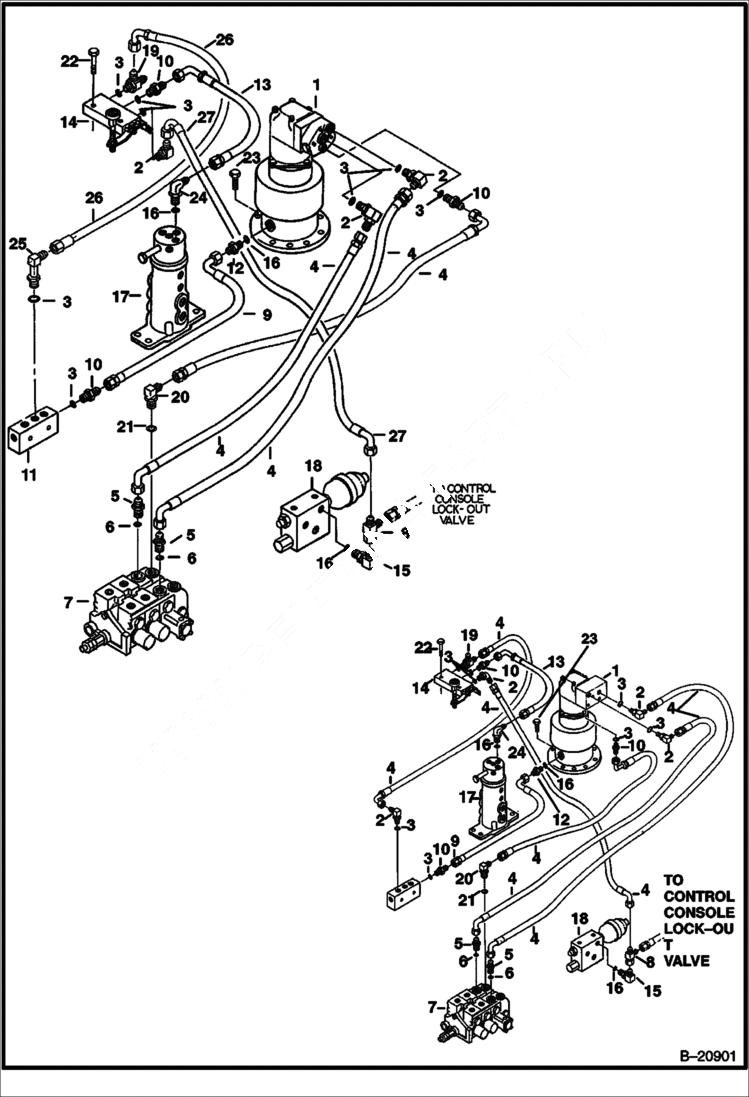

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valve to Swing Motor to 2 Speed Valve) HYDRAULIC SYSTEM

1

MOTOR See Illustration SWING MOTOR/ C3252 - swing

2

17K5

ELBOW W/Ref. 3

3

79K6

O RING 10

4

6640724

HOSE See BTIE-044 for 2 speed valve to accumulator hose

5

743108

FITTING W/Ref. 6

6

79K8

O RING 10

7

VALVE See Illustration 3 SPOOL VALVE/ C3295 assy

8

13K5

TEE

9

6539841

HOSE

10

15K5

FITTING W/Ref. 3

11

6667829

BLOCK Drain - Was 6539695 - D

12

6538386

CONNECTOR W/Ref. 16

13

6618195

HOSE

14

6539555

VALVE See Illustration 2 SPEED VALVE/ C3282 2 speed

15

6657392

ELBOW W/Ref. 16

16

6655244

O-RING

17

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057 See Illustration SWIVEL JOINT/ D2157

18

VALVE See Illustration ACCUMULATOR VALVE/ C3279 accumulator

19

21K5

TEE W/Ref. 3

20

6589193

ELBOW W/Ref. 21

21

79K12

O RING 10

22

1C516

BOLT

23

1CM1225

BOLT

24

6657392

ELBOW W/Ref. 16 - Use W/swivel joint #6659566

24

17K5

ELBOW W/Ref. 3 - Use W/swivel joint #6664413

25

6558510

ELBOW W/Ref. 3

26

6535445

HOSE See BTIE-044

27

6628152

HOSE See BTIE-044
