CONTROL VALVE (Arm Section)

Запчасти Bobcat 331 CONTROL VALVE (Arm Section) HYDRAULIC SYSTEM

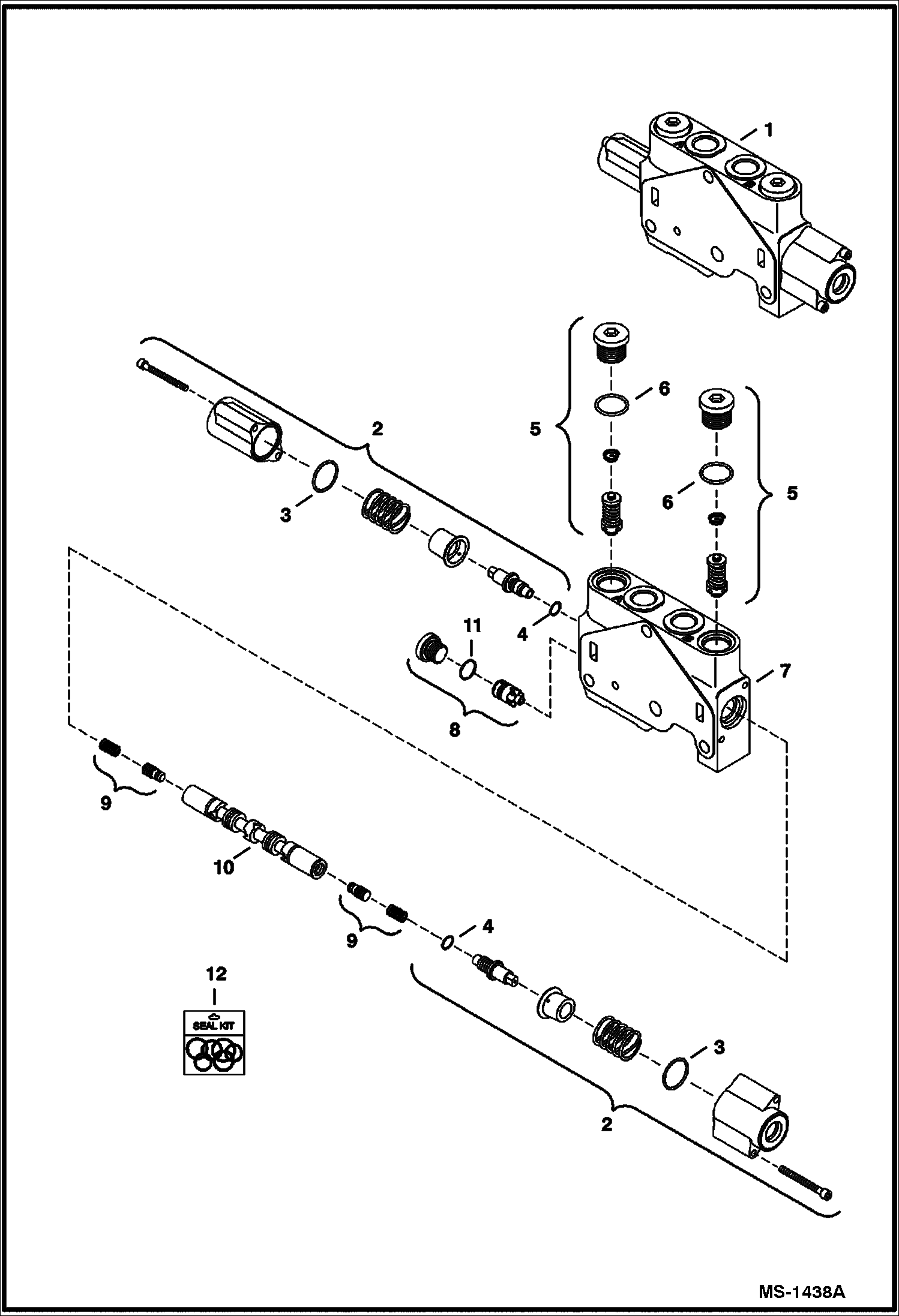

Схема запчастей Bobcat 331 - CONTROL VALVE (Arm Section) HYDRAULIC SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

6689607

VALVE SECTION arm - W/Ref. 2-11

2

6687065

KIT

3

O-RING NSS - Order Ref. 12

4

O-RING NSS - Order Ref. 12

5

6687060

VALVE

6

O-RING NSS - Order Ref. 12

7

BLOCK NSS - Order Ref. 1

8

6687058

KIT pressure compensator

9

6687057

KIT

10

SPOOL NSS - Order Ref. 1

11

O-RING NSS - Order Ref. 8

12

6687071

KIT, SECTION VALVE Ref. 3, 4, & 6
