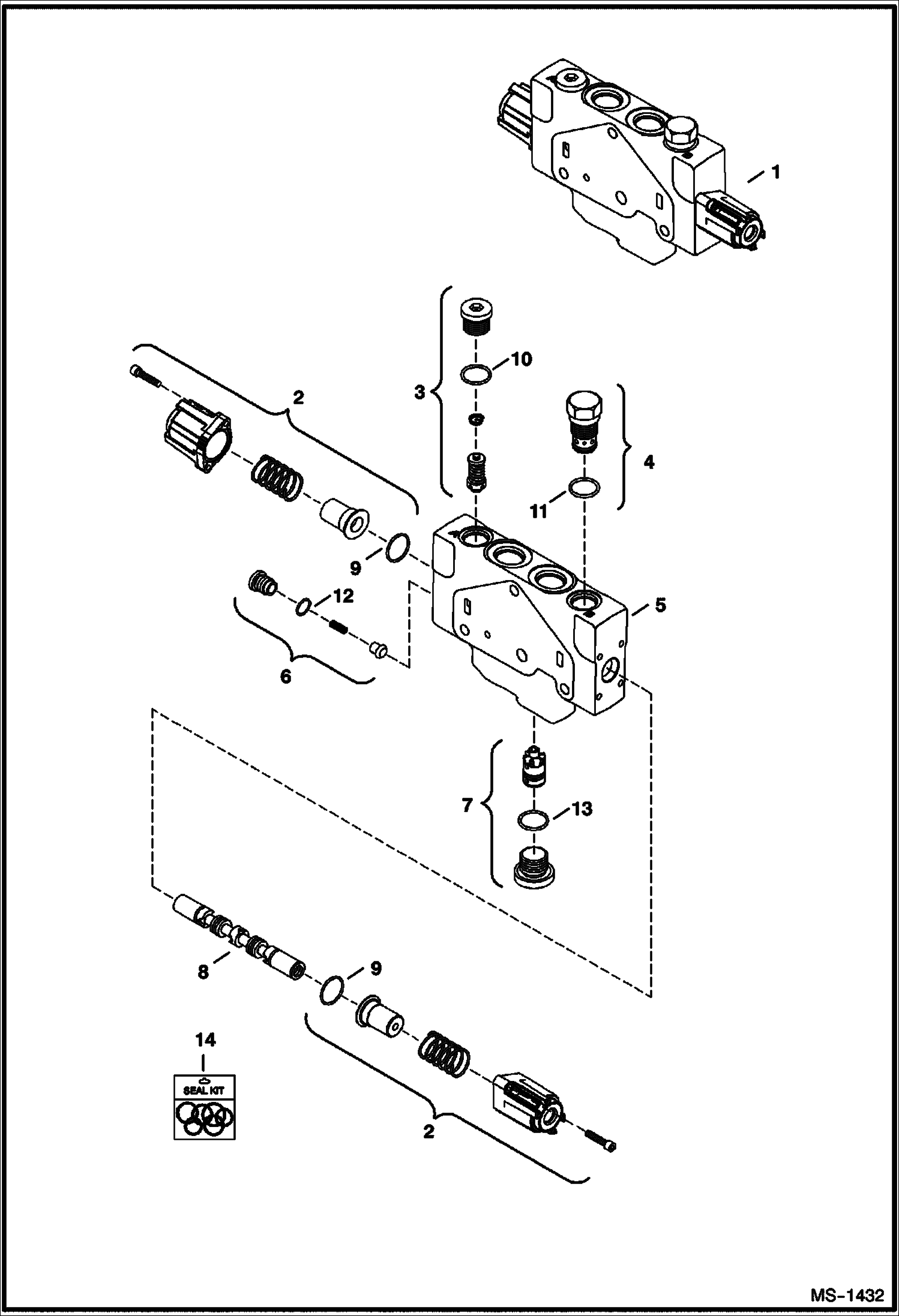

Запчасти Bobcat 331 CONTROL VALVE (Auxiliary Section) HYDRAULIC SYSTEM

1

6691124

VALVE SECTION aux - W/Ref. 2-13

2

6691137

CAP KIT

3

6687059

VALVE

4

6687062

VALVE

5

BLOCK NSS - Order Ref. 1

6

6691133

CHECK VALVE

7

6691134

KIT pressure compensator

8

SPOOL NSS - Order Ref. 1

9

O-RING NSS - Order Ref. 14

10

O-RING NSS - Order Ref. 14

11

O-RING NSS - Order Ref. 14

12

O-RING NSS - Order Ref. 14

13

O-RING NSS - Order Ref. 14

14

6691139

SEAL KIT Ref. 9-13
