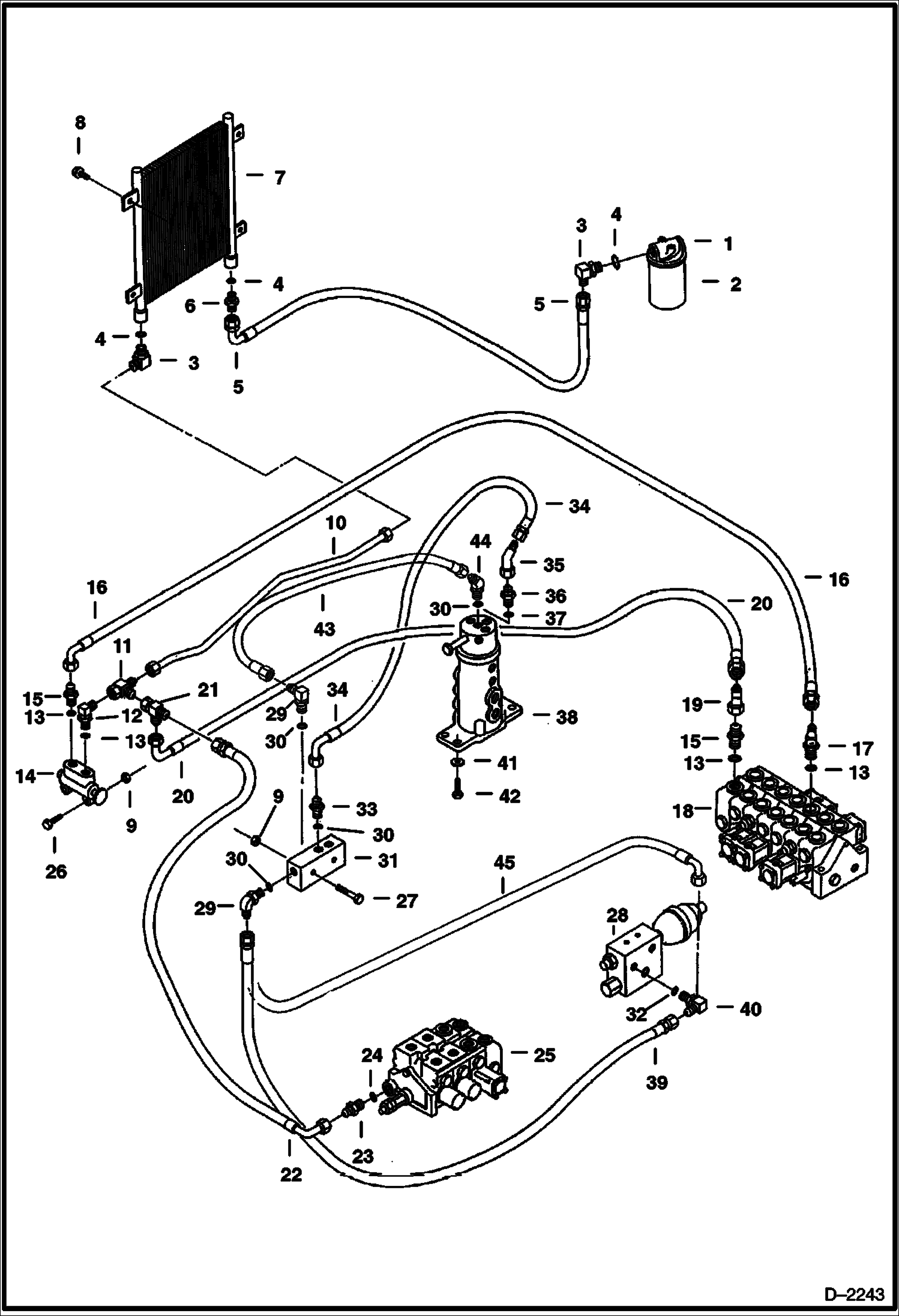

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Valves to Oil Cooler to Filter) HYDRAULIC SYSTEM

1

6654897

FILTER ASSY assy. - W/Ref. 2

2

6653336

ELEMENT filter

3

17K10

FITTING W/Ref. 4

4

79K16

O RING 10

5

6539848

HOSE

6

15K10

ADAPTOR W/Ref. 4

7

6660076

OIL COOLER

8

29CM816

SCREW

9

1DM8

NUT

10

6588640

TUBE

11

13K10

TEE

12

ELBOW NLA - W/Ref. 13 - tapered boss face - Was 1300309B - A

12

17KB1612

FITTING, HYD ELBOW W/Ref. 13 - flat boss face

13

79K12

O RING 10 flat boss face

13

99K12

O RING tapered boss face

14

VALVE See Illustration SELECTOR VALVE/ B13660 - assy

15

15K8

FITTING W/Ref. 13

16

6539846

HOSE

17

17K8

FITTING W/Ref. 13

18

VALVE See Illustration 6 SPOOL VALVE/ D2225 - assy

19

11K8

ELBOW

20

6584679

HOSE

21

6539795

TEE

22

6539839

HOSE

23

15K7

FITTING W/Ref. 24

24

79K10

O RING 10

25

VALVE See Illustration 3 SPOOL VALVE/ C3295 - assy

26

1CM845

BOLT

27

1CM855

BOLT

28

VALVE See Illustration ACCUMULATOR VALVE/ C3279 - accumulator

29

17K5

ELBOW W/Ref. 30

30

79K6

O RING 10

31

6667829

BLOCK Drain - Was 6587437 - A

32

6655244

O-RING

33

15K5

FITTING W/Ref. 30

34

HOSE See BTIE-044 - NLA - Was 6539841 - A

35

12K5

ADAPTER 45 degrees

36

6654895

ADAPTER W/Ref. 37 - Use W/swivel joint #6659566

36

15K5

FITTING W/Ref. 30 - Use W/swivel joint #6664413

37

6655250

O-RING

38

SWIVEL JOINT See Illustration SWIVEL JOINT/ PE3057 See Illustration SWIVEL JOINT/ D2157

39

HOSE See BTIE-044 - NLA - Was 6534012 - A

40

6657392

ELBOW W/Ref. 32

41

6EM120

WASHER

42

1CM1230

BOLT

43

6628153

HOSE

44

18K5

ELBOW 45 degrees - W/Ref. 30

45

6618193

HOSE
