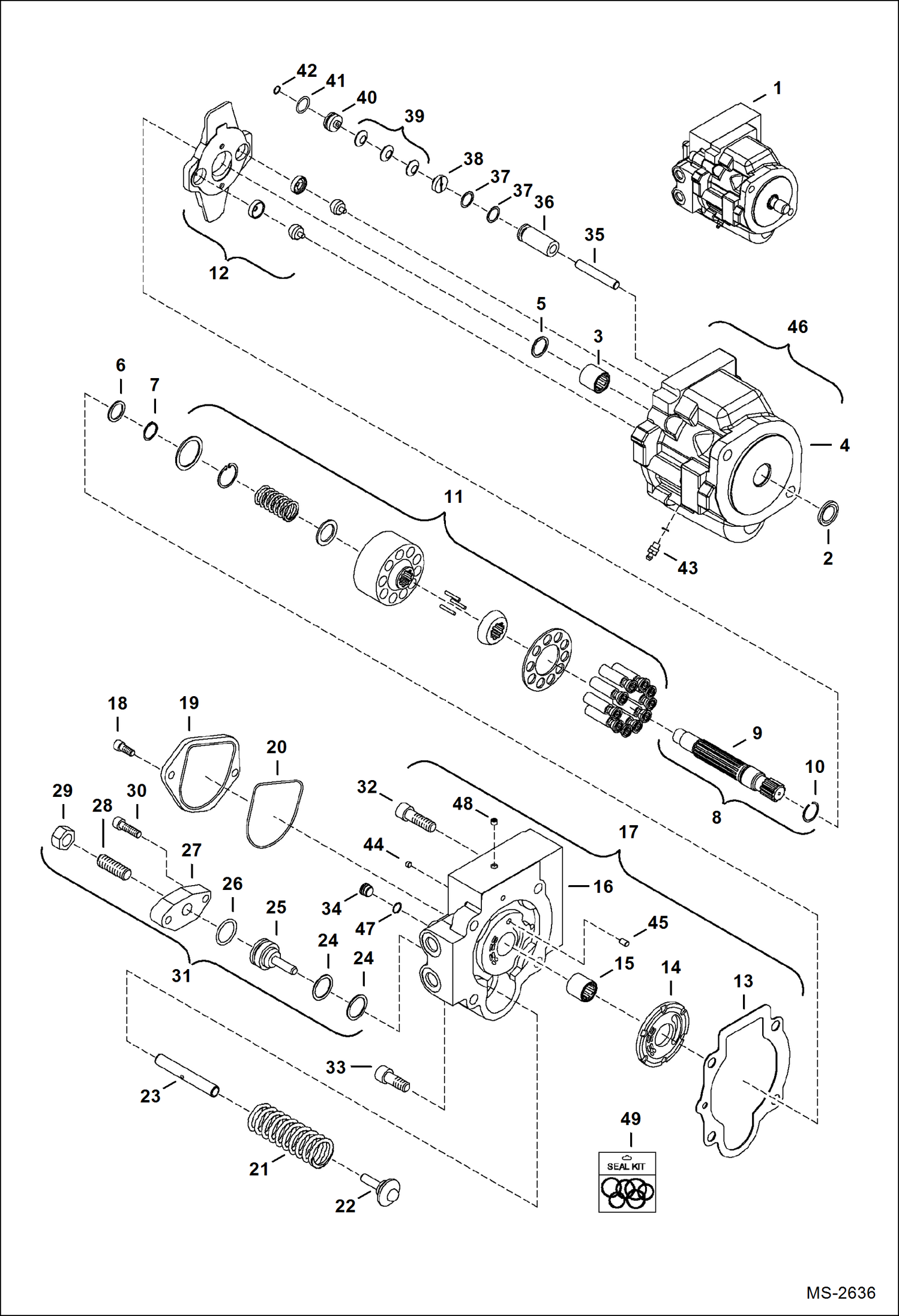

Запчасти Bobcat 331 HYDRAULIC PISTON PUMP HYDRAULIC SYSTEM

1

6697947

PUMP, HYD PISTON assy - W/Ref. 2-48

2

6687813

SEAL oil

3

6687814

BEARING

4

HOUSING NSS - Order Ref. 46

5

6687792

SHIM

6

6687793

SHIM

7

6679471

RETAINER

8

6697936

SHAFT ASMBLY W/Ref. 5-7, 9, 10

9

SHAFT NSS - Order Ref. 8

10

6687791

RING snap

11

6687782

ROTARY GROUP

12

6687781

SWASH PLATE ASSY assy - swash

13

6687797

GASKET

14

6687794

CONTROL PLATE control

15

6687798

BEARING

16

PORT PLATE NSS - Order Ref. 17

17

6687783

PORT PLATE ASSY W/Ref. 13-16, 32-34, 35

18

6678641

SCREW

19

6687786

PLATE

20

6687787

ORING

21

7000970

SPRING, SEAT

22

6687802

SEAT, SPRING

23

6687809

GUIDE

24

6687810

SHIM .039 in.

24

6687811

SHIM .020 in.

24

6687812

SHIM

25

6687803

SPRING

26

6687806

ORING

27

6687804

COVER

28

6687805

ADJUSTING SCREW

29

6687808

NUT

30

6687807

BOLT

31

6687784

SPRING SEAT ASSY spring assy - W/Ref. 22-30

32

6687800

BOLT

33

6687796

BOLT

34

6687799

PLUG W/Ref. 47

35

7000971

PIN

36

7000972

SLEEVE, WEAR

37

6687822

SHIM .004 in.

37

6687823

SHIM .020 in.

37

6687824

SHIM .039 in.

38

6698370

SPACER

39

6687817

SPRING coned

40

6698371

PISTON

41

6687818

ORING

42

6687819

ORING

43

6687788

PLUG W/ O-ring

44

6687801

ORIFICE

45

6687795

PIN

46

6687785

HOUSING ASSY assy - W/Ref. 2-4, 35-42

47

ORING NSS - Order Ref. 34

48

6678595

PLUG

49

6693152

KIT, SEAL W/Ref. 2, 13, 20, 26, 41-43, 47
