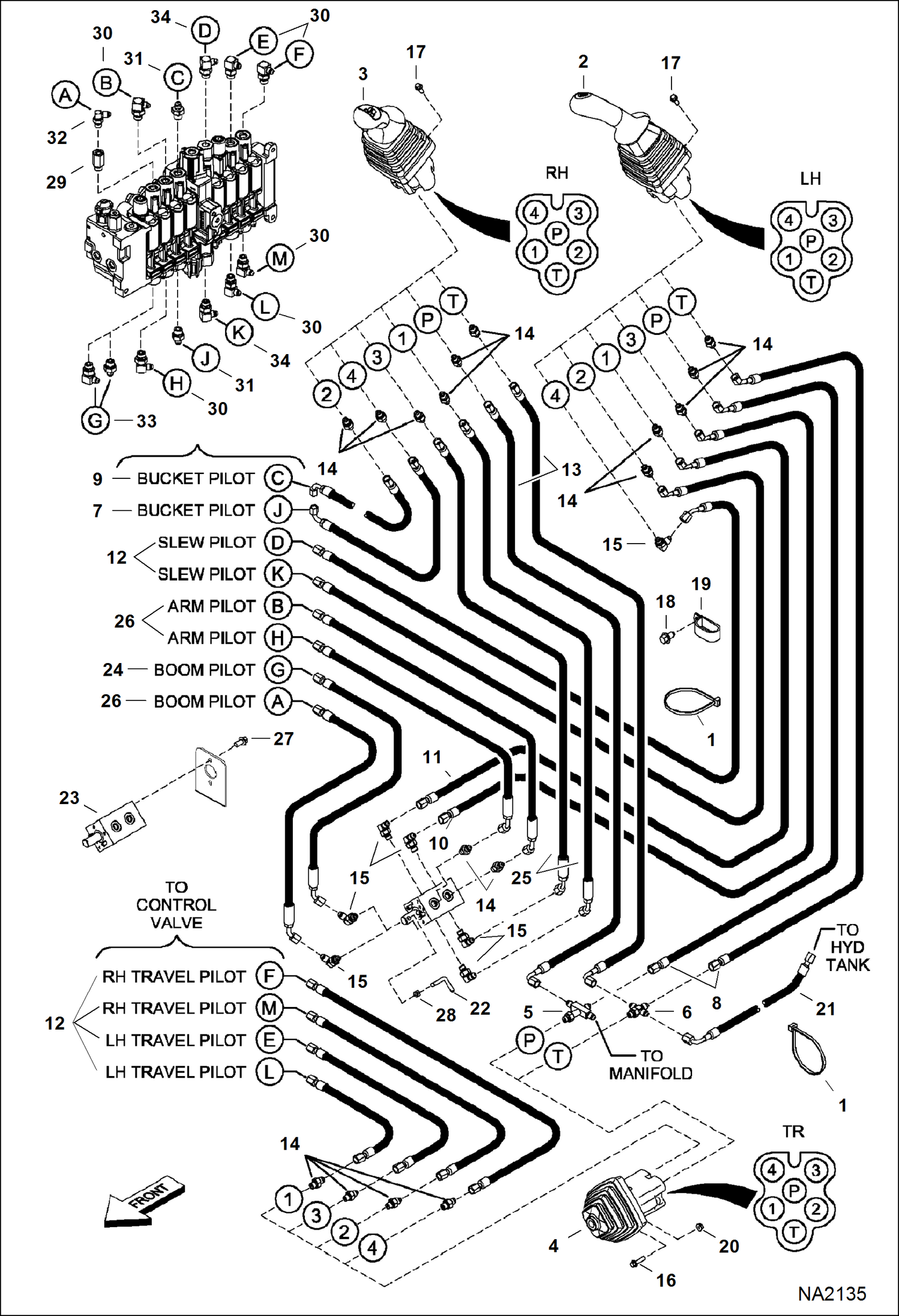

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Pilot ISO/STD) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106588

HOSE

8

7106606

HOSE

9

7106609

HOSE

10

7106612

HOSE

11

7106614

HOSE

12

7107647

HOSE

13

7107649

HOSE

14

15KB0404

FTG HYD S Connector

14

79K4

O RING 10

15

17KB0404

FTG HYD ELBOW 90

15

79K4

O RING 10

16

17C416

BOLT

17

26GM6020

SCREW

18

26GM10016

SCREW

19

30H85

CLAMP

20

83D4

NUT 10

21

7106608

HOSE

22

6804251

HANDLE

23

6805768

VALVE See Illustration SELECTOR VALVE ASSY/ TS1353

24

7106619

HOSE

25

7106620

HOSE

26

7106621

HOSE

27

29CM816

SCREW

28

53DM6

NUT Was 1DM6 - A

29

6686900

ORIFICE

29

79K6

O RING 10

30

7124150

ELBOW

30

79K6

O RING 10

31

15KB0406

FTG HYD S CONNECTOR

31

79K6

O RING 10

32

17KB0404

FTG HYD ELBOW 90

32

79K4

O RING 10

33

7124150

ELBOW 90 degree

33

15KB0406

FTG HYD S CONNECTOR straight

33

79K6

O RING 10

34

7124150

ELBOW

34

TEE See Illustration EUROPEAN ACCESSORIES/ NA2137 - for Europe slew lock option

34

79K6

O RING 10
