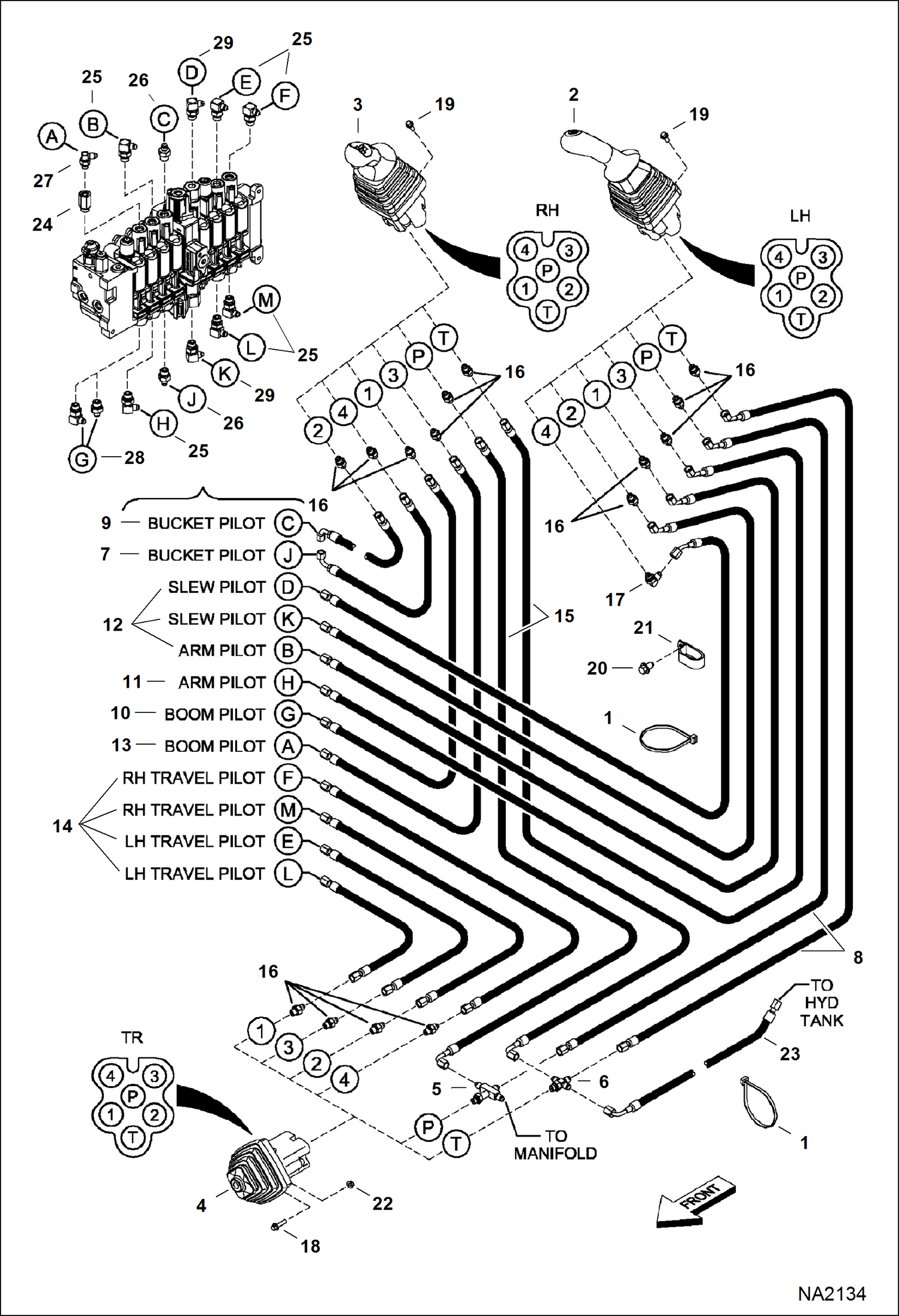

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Pilot) HYDRAULIC SYSTEM

1

6624289

STRAP, TIE

2

6677894

JOYSTICK See Illustration LH JOYSTICK/ MS1354

3

6677895

JOYSTICK See Illustration RH JOYSTICK/ MS1352

4

6677896

JOYSTICK See Illustration TRAVEL CONTROLLER/ MS1351

5

6812829

CROSS

5

79K4

O RING 10

6

6812830

CROSS

6

79K4

O RING 10

7

7106588

HOSE

8

7106606

HOSE

9

7106609

HOSE

10

7106611

HOSE

11

7106612

HOSE

12

7106614

HOSE

13

7106615

HOSE

14

7107647

HOSE

15

7107649

HOSE

16

15KB0404

FTG HYD S Connector

16

79K4

O RING 10

17

17KB0404

FTG HYD ELBOW 90

17

79K4

O RING 10

18

17C416

BOLT

19

26GM6020

SCREW

20

26GM10016

SCREW

21

30H85

CLAMP

22

83D4

NUT 10

23

7106608

HOSE

24

6686900

ORIFICE

24

79K6

O RING 10

25

7124150

ELBOW

25

79K6

O RING 10

26

15KB0406

FTG HYD S CONNECTOR

26

79K6

O RING 10

27

17KB0404

FTG HYD ELBOW 90

27

79K4

O RING 10

28

7124150

ELBOW 90 degree

28

15KB0406

FTG HYD S CONNECTOR straight

28

79K6

O RING 10

29

7124150

ELBOW

29

TEE See Illustration EUROPEAN ACCESSORIES/ NA2137 - for Europe slew lock option

29

79K6

O RING 10
