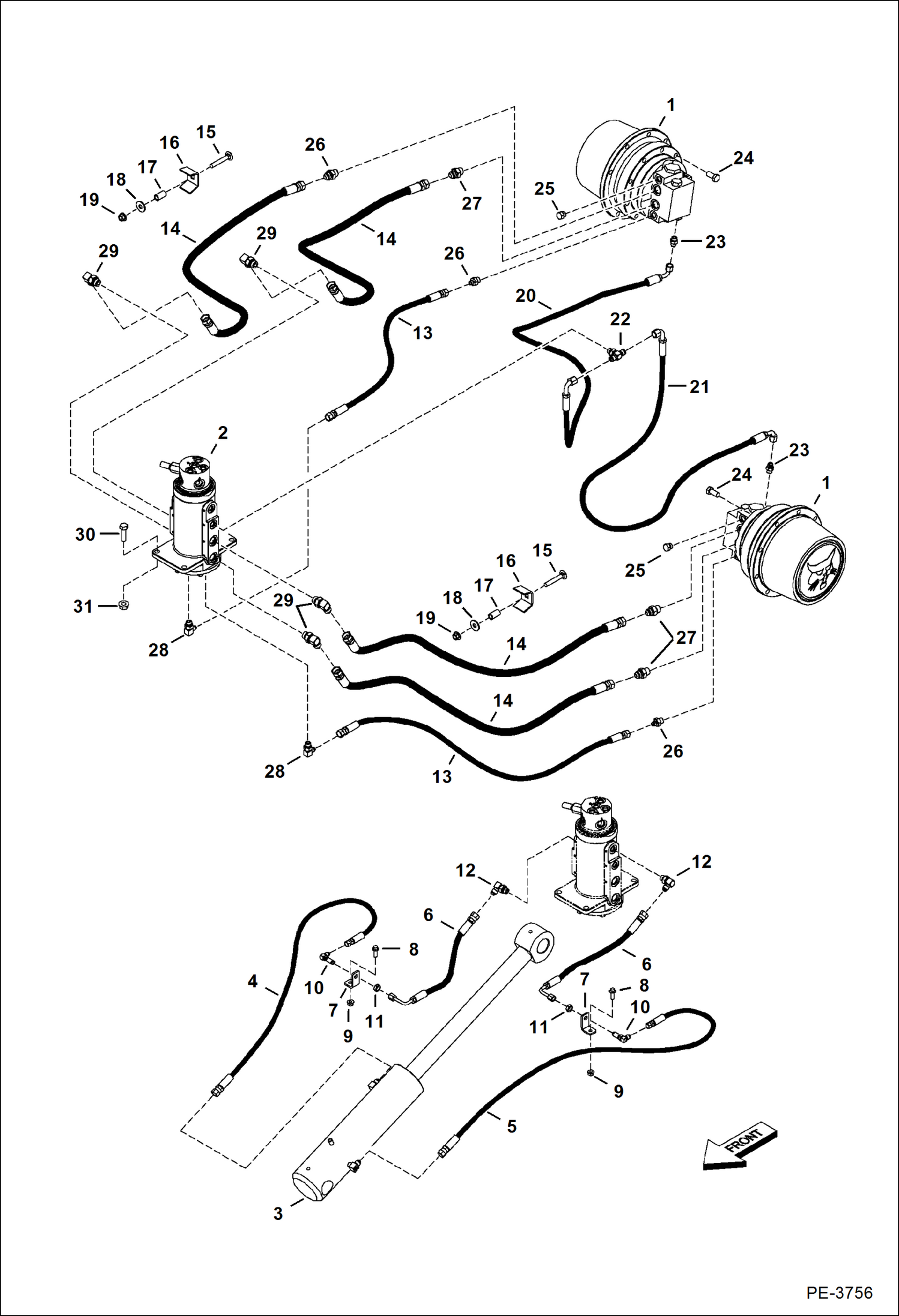

Запчасти Bobcat 331 HYDRAULIC CIRCUITRY (Lower) HYDRAULIC SYSTEM

1

6677666

MOTOR, DRIVE HYD See Illustration TRAVEL MOTOR/ D2373 - travel

2

7123864

SWIVEL ASSY See Illustration SWIVEL JOINT/ PE3057

3

6597350

CYLINDER See Illustration BLADE CYLINDER/ PE3654 - blade

4

6810184

HOSE

5

6810194

HOSE

6

6810182

HOSE

7

6810169

BRACKET hose

8

29CM825

BOLT

9

43DM8

NUT

10

88F3

ELBOW 5

11

86F3

LOCKNUT

12

17KB0606

FITTING

12

79K6

O RING 10

13

7106590

HOSE

14

6800815

HOSE

15

21CM1065

BOLT

16

6597380

CLAMP

17

6805602

SPACER bushing

18

17EM100

WASHER

19

43DM10

NUT

20

7139244

HOSE, HYD ASSY

21

7139243

HOSE, HYD ASSY

22

19KB0606

TEE branch

22

79K6

O RING 10

23

ADAPTOR See Illustration TRAVEL MOTOR/ D2373

24

55CM1225

BOLT

25

24K5

PLUG

25

79K6

O RING 10

26

15KB0406

FTG HYD S CONNECTOR

26

79K6

O RING 10

27

15KB0808

FITTING, HYD CONNECTOR

27

79K8

O RING 10

28

17KB0406

FITTING, HYD ELBOW

28

79K6

O RING 10

29

17KB0808

FITTING, HYD ELBOW

29

79K8

O RING 10

30

1CM1240

BOLT

31

51DM12

NUT
