Запчасти Bobcat 331 BOOM WORK EQUIPMENT

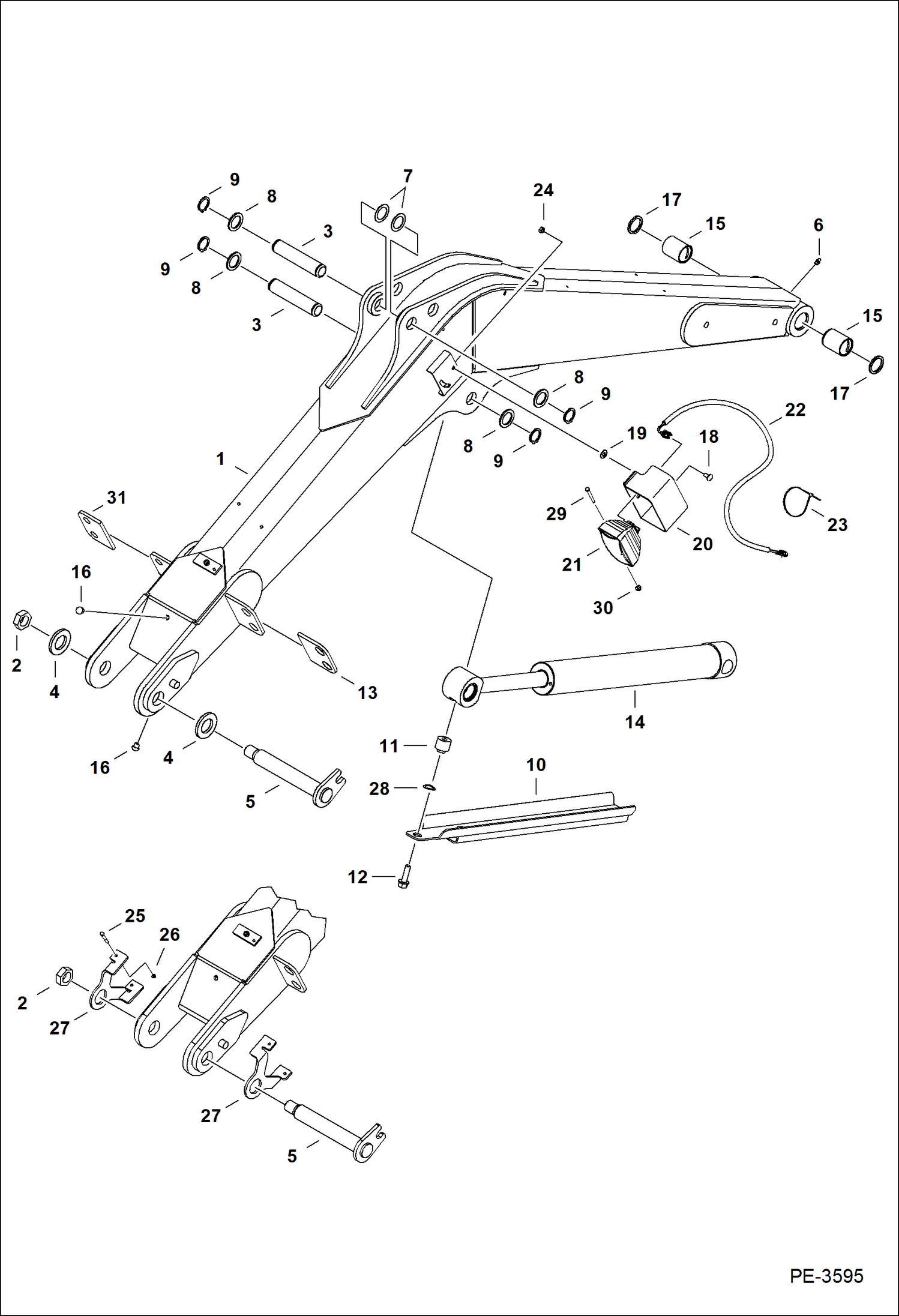

Схема запчастей Bobcat 331 - BOOM WORK EQUIPMENT

Артикул

Название

Примечание

Количество

1

7139952

BOOM, DIPPER ARM W/Ref. 39 - Also Order Ref. 15 & 17

2

39DM30

NUT

3

6596216

PIN

4

1EM380

WASHER Use W/non-extendable arm

5

6596238

PIN, PIVOT mounting

6

10H25

FITTING, GREASE 5

7

6811636

SPACER

8

6534111

WASHER

9

6534154

RING

10

7130856

SHIELD, W/A

11

7131109

SPACER

12

7131273

SCREW

13

6597688

PLATE welded onto boom

14

CYLINDER See Illustration BOOM CYLINDER/ PE3596 boom

15

6815277

BUSHING

16

6597572

BUMPER

17

6660075

SEAL dust

18

28CM820

BOLT

19

6675859

RETAINER

20

7133077

HOUSING, W/A

21

6691410

LIGHT

21

6692400

BULB

22

7135895

HARNESS work light - 116'' (2946 mm) long

23

6610510

TIE

24

51DM8

NUT

25

1CM650

SCREW

26

53DM6

NUT

27

7126461

BRACKET Use in place of Ref. 4 on machines with bucket hoses routed outside the arm or machines with extendable arm

28

6536803

WASHER spring washer

29

1CM655

SCREW

30

51DM6

NUT

31

6958354

PLATE welded onto boom

Выбрано товаров: 32
