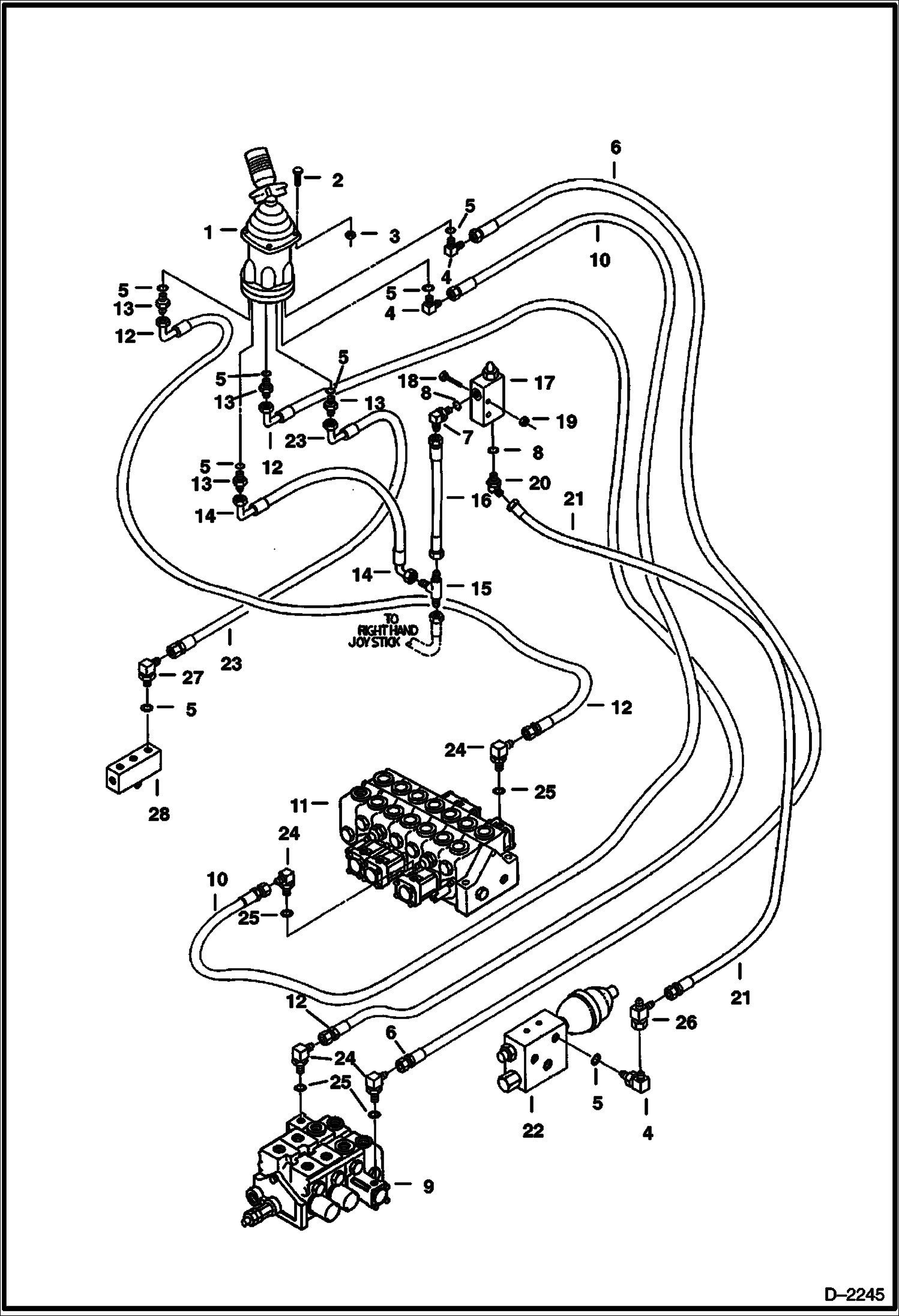

Запчасти Bobcat 331 L.H. JOYSTICK CONTROLS (Arm & Swing) (ISO Control Pattern) CONTROLS

1

6654119

JOYSTICK ASSY. See Illustration L.H. JOYSTICK CONTROLS/ D1973 - L.H.

2

1CM625

BOLT

3

1DM6

NUT

4

6657392

ELBOW W/Ref. 5

5

6655244

O-RING

6

6536599

HOSE

7

17K3

ELBOW W/Ref. 8

8

79K4

O RING 10

9

VALVE See Illustration 3 SPOOL VALVE/ C3295 - Assy

10

6577680

HOSE

11

VALVE See Illustration 6 SPOOL VALVE/ D2225 - Assy

12

6536790

HOSE

13

6654895

ADAPTER W/Ref. 5

14

6536784

HOSE

15

10K5

TEE

16

6536797

HOSE

17

6667334

PLUNGER See Illustration CHECK VALVE/ B13826 - check - hyd shut off - Was 6657207 - A

18

1CM840

BOLT

19

1DM8

NUT

20

18K3

ELBOW W/Ref. 8

21

6536793

HOSE

22

VALVE See Illustration ACCUMULATOR VALVE/ C3279 accumulator

23

6628337

HOSE Was 6537630 - A

24

1316049

ELBOW W/Ref. 25

25

79K6

O RING 10

26

13K5

TEE

27

17K5

ELBOW W/Ref. 25

28

6667829

BLOCK drain - Was 6587437 - A
