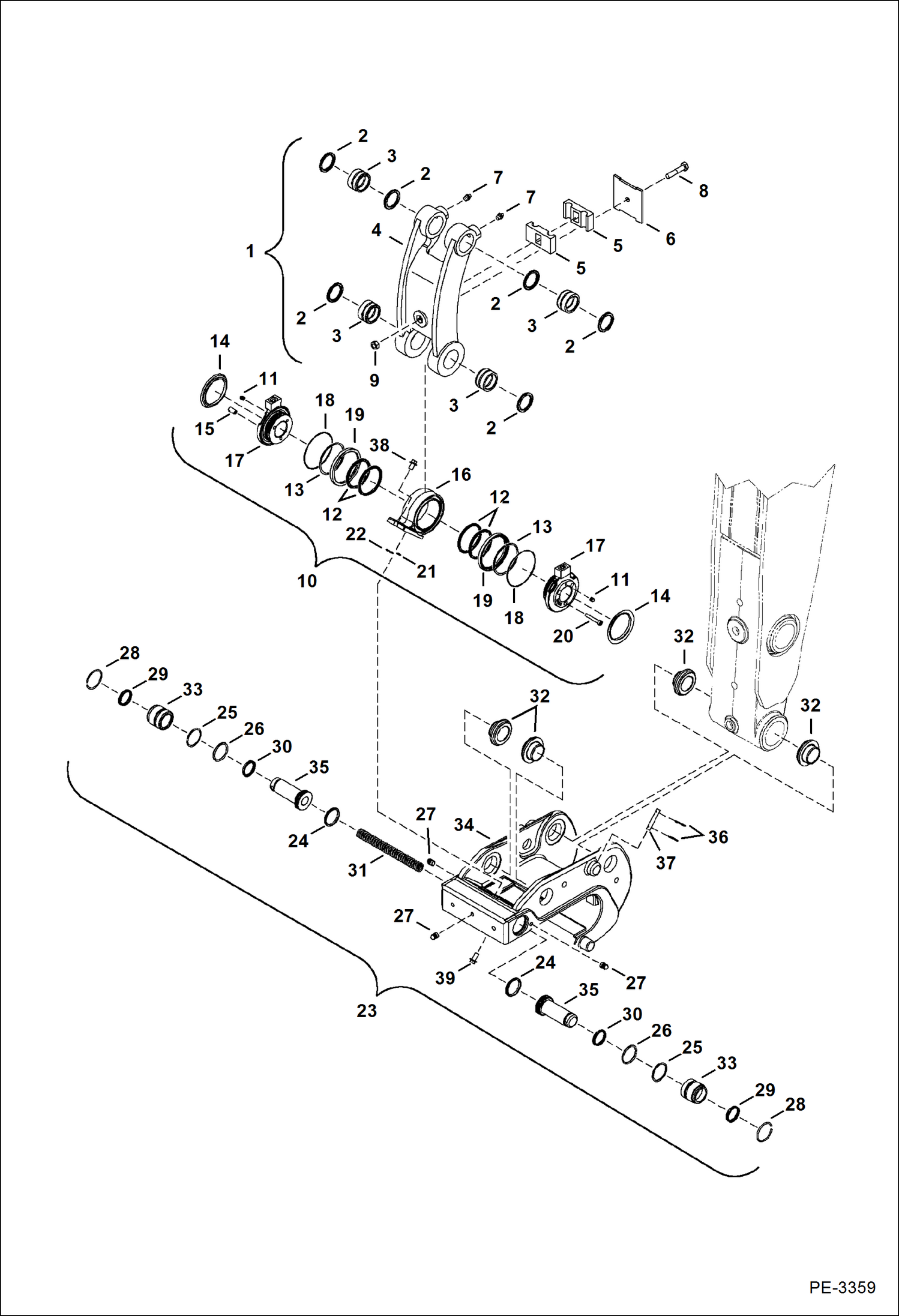

Запчасти Bobcat 331 X-CHANGE (Hydraulic) (Link, Swivel, X-Change) ACCESSORIES & OPTIONS

1

LINK ASSY NLA - Order components - Ref. 2-9 - Was 7115440 - A

2

6652915

SEAL, OIL

3

6803309

BUSHING, PRESS FIT

4

7115439

LINK

5

7115813

BLOCK RUBBER

6

7226711

COVER, HOSE Also Order Ref. 8 (59CM1060 screw) - Was 7115814 - A

7

10H25

FITTING, GREASE 5

8

59CM1060

SCREW Was 1CM1055 - B

9

4DM10

NUT

10

7115437

SWIVEL ASSY W/Ref. 11-22

11

6686678

PLUG

12

6689035

SEAL

13

6689036

RING WEAR

14

6689622

SEAL DUST

15

6816599

NUT

16

7115434

BASE HYD

17

7115436

SWIVEL HYD

18

7135580

O-RING

19

7135631

SEAL DUST

20

3GM640

SCREW

21

58K10

O RING 10

22

58K015

O-RING 10

23

7117453

X-CHG ASSY W/Ref. 24-37

24

6680402

SEAL

25

6680998

RING

26

6683233

O-RING

27

6686679

PLUG

28

6686682

RING

29

6688634

SEAL PIN

30

6690161

SEAL PIN

31

6815592

SPRING

32

7102891

BUSHING

33

7114212

HEAD

34

7115432

X-CHANGE HYD

35

7126140

PISTON, PIN W/retainer pin hole

36

7130431

CLIP

37

7132119

PIN

38

29CM1020

BOLT

39

29CM1025

BOLT
