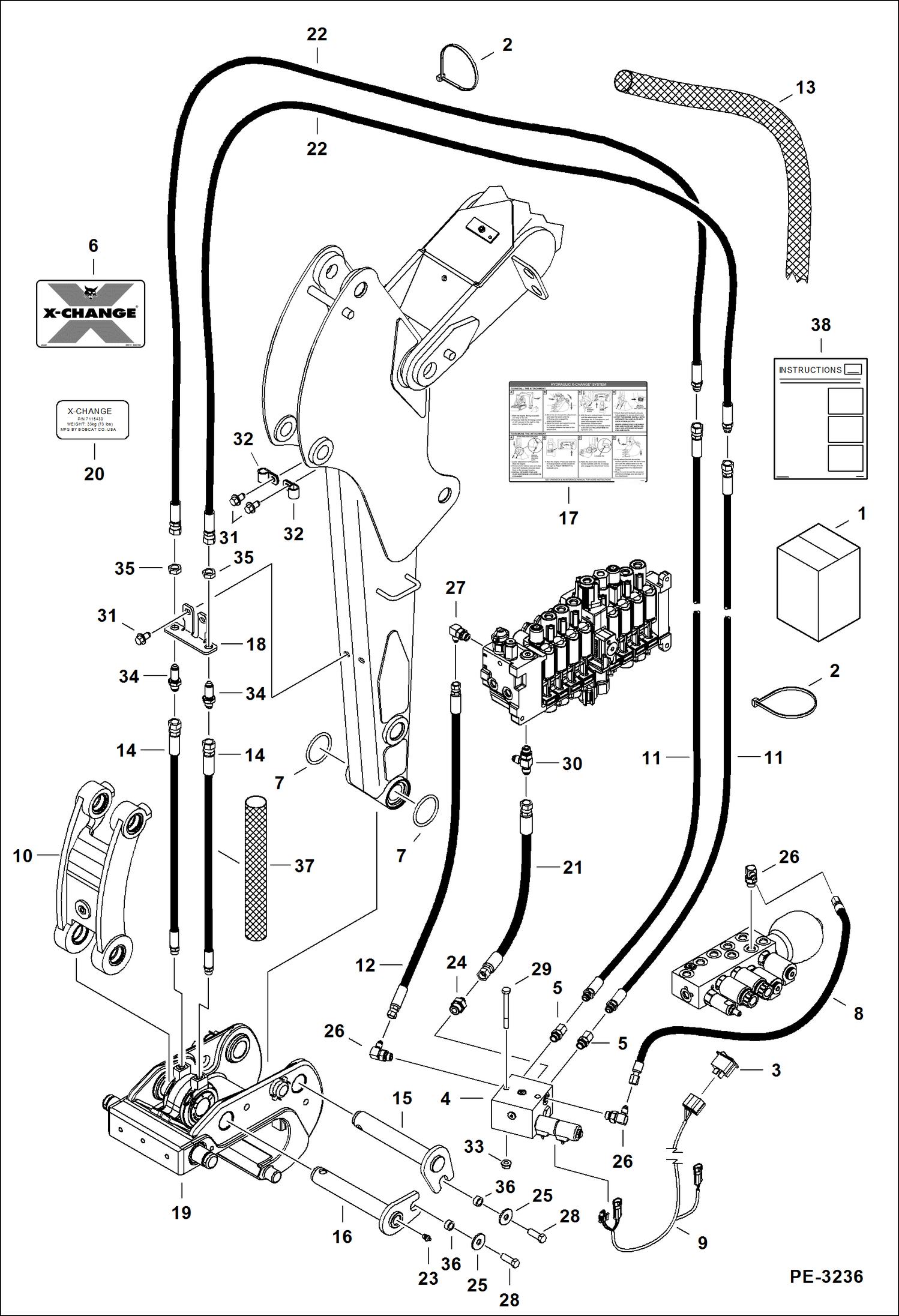

Запчасти Bobcat 331 X-CHANGE (Hydraulic) (Kit) ACCESSORIES & OPTIONS

1

7139702

KIT HYD X-CHG for standard arm - W/Ref. 2-38

1

7139703

KIT HYD X-CHG for long arm - W/Ref. 2-38

2

6624289

STRAP, TIE

3

6688667

SWITCH

4

6688821

MANIFOLD See Illustration X-CHANGE/ MS1461

5

6732089

CONNECTOR

5

79K6

O RING 10

6

6803760

DECAL X-Change

7

6811260

O-RING

8

7106604

HOSE

9

7113694

HARNESS

10

LINK ASSY See Illustration X-CHANGE/ PE3359

11

7115637

HOSE

12

7117935

HOSE

13

7120119

GUARD

14

7125345

HOSE

15

7130245

PIN

16

7134283

PIN

17

7134587

DECAL, X-CHANGE using X-Change

18

7138752

BRACKET

19

7139701

X-CHG SWIVEL See Illustration X-CHANGE/ PE3359

20

7142034

DECAL X-Change

21

7142410

HOSE

22

7142416

HOSE Use with standard arm

22

7142033

HOSE Use with long arm

23

10H25

FITTING, GREASE 5

24

15KB0608

FITTING, HYD CONNECTOR

24

79K8

O RING 10

25

17EM120

WASHER

26

17KB0406

FITTING, HYD ELBOW

26

79K6

O RING 10

27

7124150

ELBOW

27

79K6

O RING 10

28

1CM1235

BOLT

29

1CM880

BOLT

30

21KB0606

FTG HYD STRAIGHT TEE

30

79K6

O RING 10

31

26GM10020

BOLT

32

30H35

CLAMP 10

33

43DM8

NUT

34

45K5

FITTING

35

86F5

NUT

36

6503451

SPACER

37

7161761

GUARD, FABRIC

38

6986539

INSTRUCTIONS
