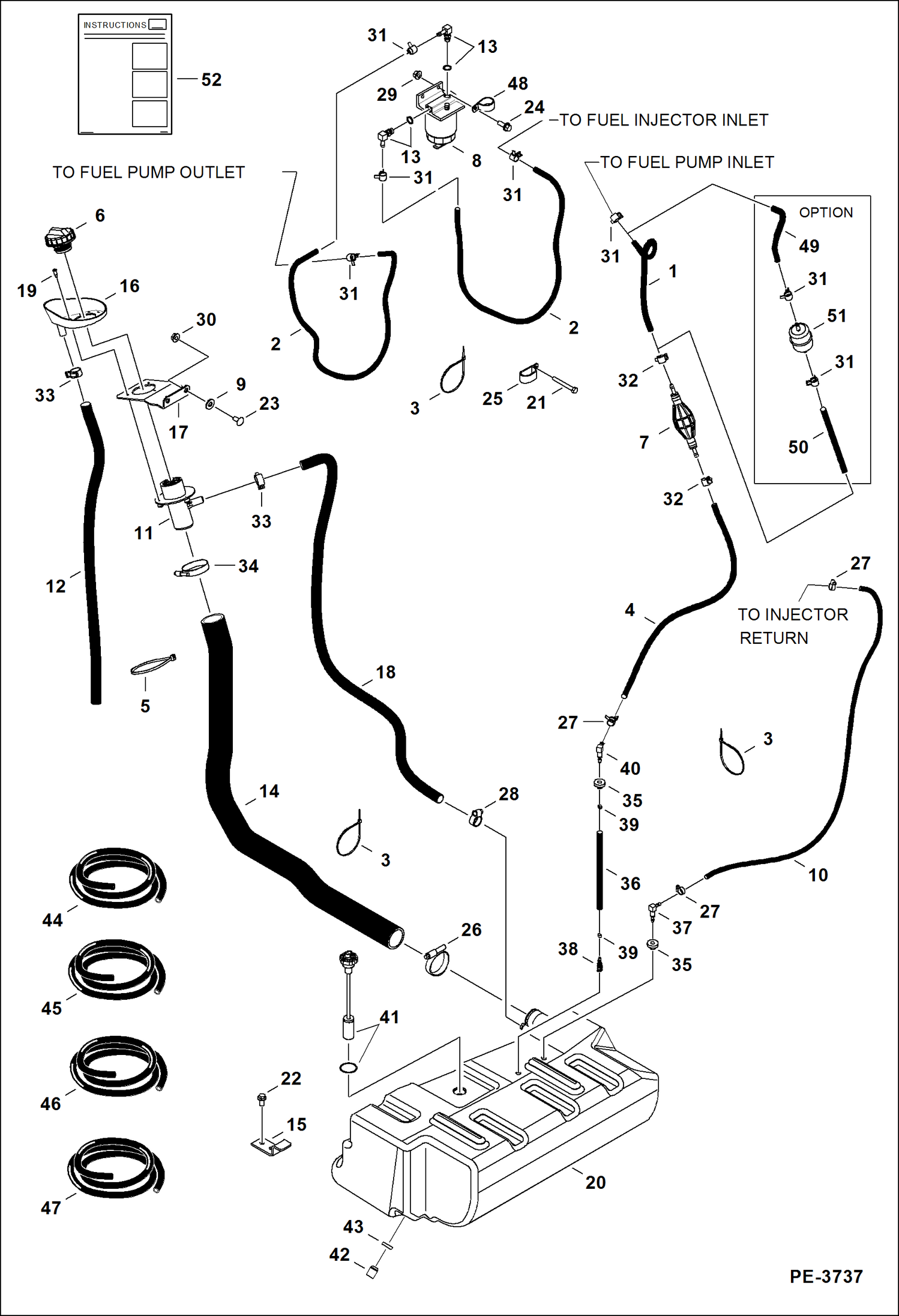

Запчасти Bobcat 331 FUEL SYSTEM POWER UNIT

1

HOSE NLA - 18'' (456 mm) long - Order Ref. 44

1

HOSE NLA - 35'' (889 mm) long - Order Ref. 44

2

HOSE NLA - 44'' (1118 mm) long - Order Ref. 44

3

6610510

TIE nylon

4

HOSE NLA - 51'' (1296 mm) long - Order Ref. 44

4

HOSE NLA - 39'' (991 mm) long - Order Ref. 44

5

6624289

STRAP, TIE cable

6

6661114

CAP. DIESEL

6

7113340

CAP. DIESEL Europe Only

7

6667170

PUMP 193 mm (7.6'') long

8

6667353

FILTER ASSY

8

6667352

FILTER, FUEL W/SEPARATOR 12

8

6658180

PLUG, BLEED

9

6674264

RETAINER NUT

10

HOSE NLA - 65'' (1651 mm) long - Order Ref. 45

11

6701449

FILLER TUBE

12

HOSE NLA - 38'' (966 mm) long - Order Ref. 46

13

6715183

ELBOW

13

79K5

O RING 10

14

6808377

HOSE

15

6808384

PLATE

16

6809964

GUARD splash

17

6816940

BRACKET

18

HOSE NLA - vent - 58'' (1474 mm) long - Order Ref. 46

19

7106279

BOLT

20

7109689

TANK fuel

21

1CM870

BOLT

22

26GM10020

BOLT

23

28CM1020

BOLT

24

29CM820

SCREW

25

31H42

CLIP

26

42HC250

CLAMP

27

42HS04

CLAMP, HOSE

28

42HS10

CLAMP

29

43DM8

NUT

30

43DM10

NUT

31

5HM14

CLAMP

32

5HM14

CLAMP Was 5HM15 - A

33

5HM23

CLAMP

34

5HM55

CLAMP

35

6553411

BUSHING 0.38'' ID

36

HOSE NLA - 9'' (229 mm) long - Order Ref. 47

37

6598908

ELBOW

38

6650239

SCREEN, FUEL PICKUP fuel

39

6661213

RING, COMPRESSION compression

40

6666302

FITTING, ELBOW barbed - Was 7126672 - B

41

7179838

SENSOR FUEL Was 6680437 - A

41

6717579

GASKET

42

7203382

PLUG, STEEL Was 6717404 - A

43

6717402

BUSHING 0.54'' ID

44

6577822

HOSE bulk - sold per foot

45

6578169

HOSE bulk - sold per foot - 0.19'' ID

46

6578172

HOSE bulk - sold per foot

47

6569752

HOSE BULK/FT bulk - sold per foot

48

30H57

CLAMP

49

HOSE NLA - 7.5'' (191 mm) long - Order Ref. 44 - China option

50

HOSE NLA - 26'' (660 mm) long - Order Ref. 44 - China option

51

7147344

FILTER, FUEL IN-LINE China option
