Запчасти Bobcat 331 BOOM CYLINDER HYDRAULIC SYSTEM

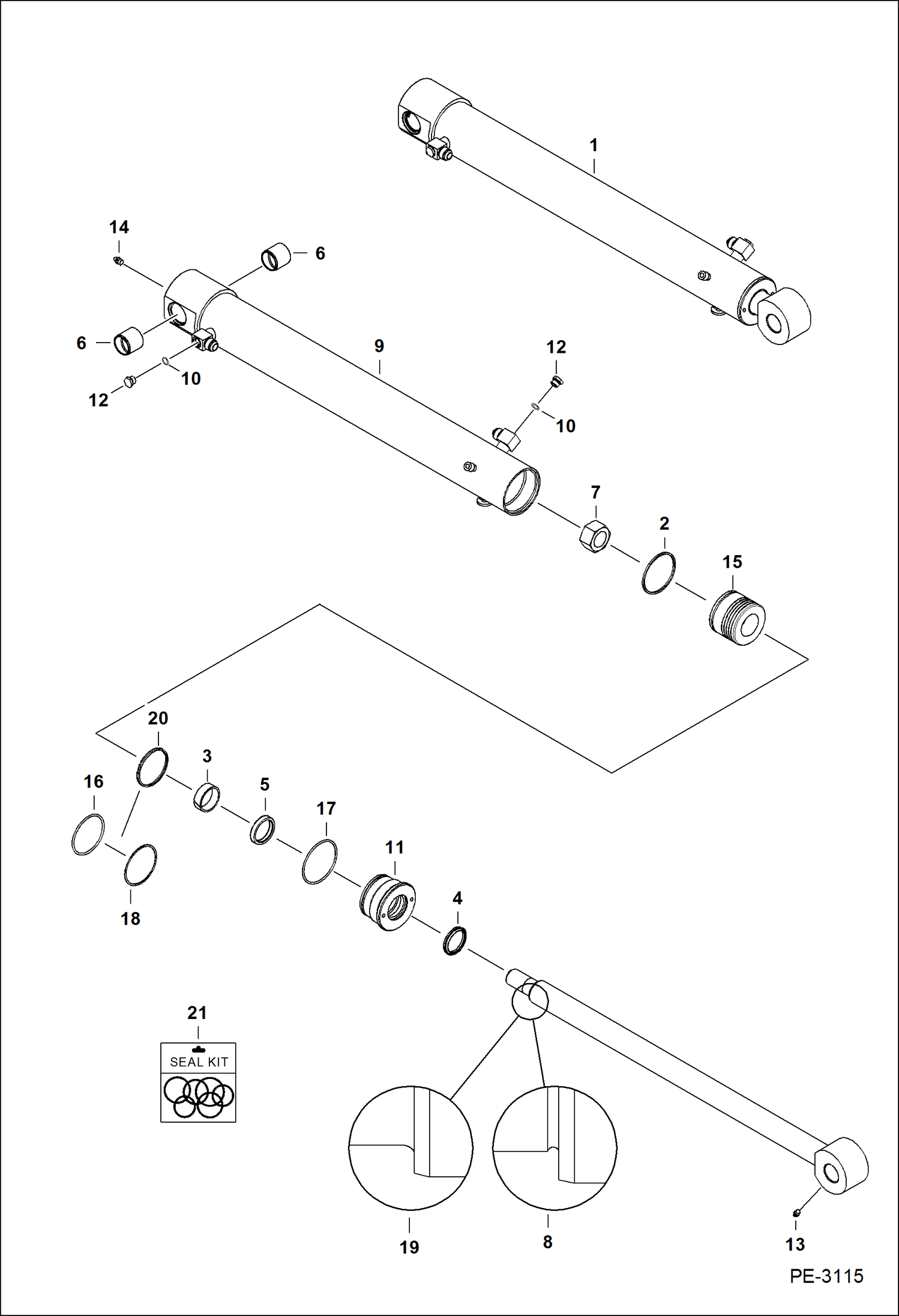

Схема запчастей Bobcat 331 - BOOM CYLINDER HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

CYLINDER NLA - W/Ref. 2-5, 7-18 - Order 7156133 - Also Order Ref. 6 & (2) of 6652915 dust seal - Was 7100732 - A

1

7156133

CYLINDER, BOOM Ref. 2-7, 9-19 - Also Order (2) of 6652915 dust seal - this cylinder includes Ref. 6 bushings - Was 7148522 - A

2

6685444

SEAL 2.46'' (62,53 mm) ID

3

7000771

RING, WEAR Was 6698133 - A

4

6686999

WIPER, ROD CYL Was 6666544 - A

5

6667327

SEAL

6

6803982

BUSHING

7

6810540

NUT

8

SHAFT NLA - Order 7148523 shaft & 6693529 piston - Also Order Ref. 13 - Was 7103706 - A

9

7100743

HOUSING Also Order Ref. 6 & (2) of 6652915 dust seal

10

75K7

O-RING

11

6817562

HEAD

12

6816855

PLUG

13

10H25

FITTING, GREASE 5 grease - straight

14

12H15

FITTING, GREASE 5 grease - 90 degree

15

6693529

PISTON ASMBLY W/Ref. 2 & W/2 piece non-replaceable wear rings - Was 6685204 - A

16

25K40224

O RING 10 Was 54K40224 - B

17

58K234

O RING 10 Was 54K40300 - B

18

73K232

RING, BACK-UP back-up - Was 80K232 - A

19

7148523

ROD Also Order Ref. 13

20

7008355

SEAL, QUAD

21

7197632

KIT, SEAL Ref. 2-5, 7, 16-18 - Was 7162061 - A

Выбрано товаров: 22
