Запчасти Bobcat 331 VALVE SECTION (Auxiliary)(10 Work Section) (331) 234313000-234316876, (331E) 234412000-234413148, (334) 234513000-234515932 HYDRAULIC SYSTEM

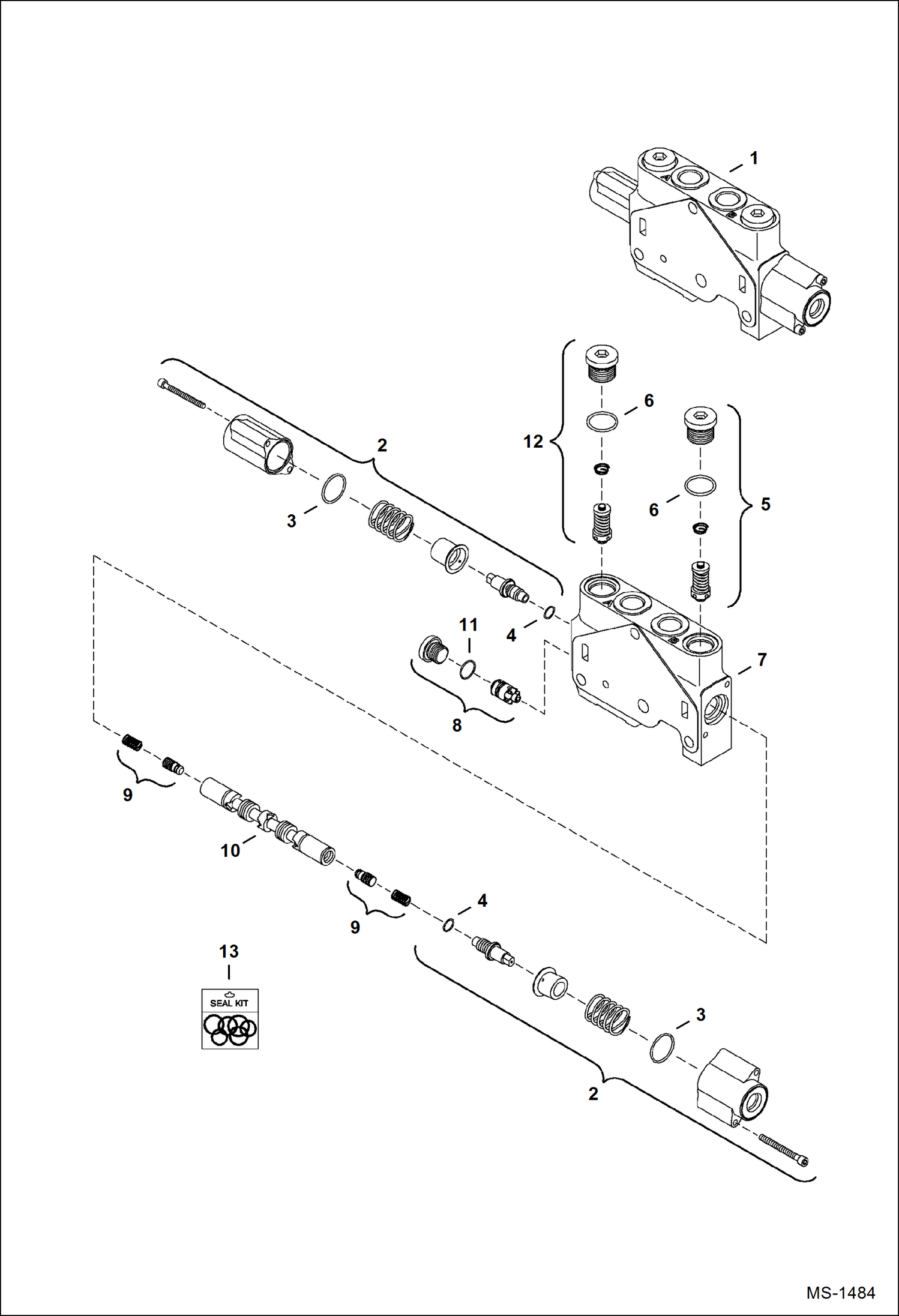

Схема запчастей Bobcat 331 - VALVE SECTION (Auxiliary)(10 Work Section) (331) 234313000-234316876, (331E) 234412000-234413148, (334) 234513000-234515932 HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6689605

VALVE SECTION auxiliary - W/Ref. 2-11

2

6687065

KIT

3

O-RING NSS - Order Ref. 12

4

O-RING NSS - Order Ref. 12

5

6687062

VALVE

6

O-RING NSS - Order Ref. 12

7

BLOCK NSS - Order Ref. 1

8

6687058

KIT pressure compensator

9

6687057

KIT

10

SPOOL NSS - Order Ref. 1

11

O-RING NSS - Order Ref. 8

12

6687059

VALVE

13

6687071

KIT, SECTION VALVE Includes Ref. 3, 4, & 6

Выбрано товаров: 13
