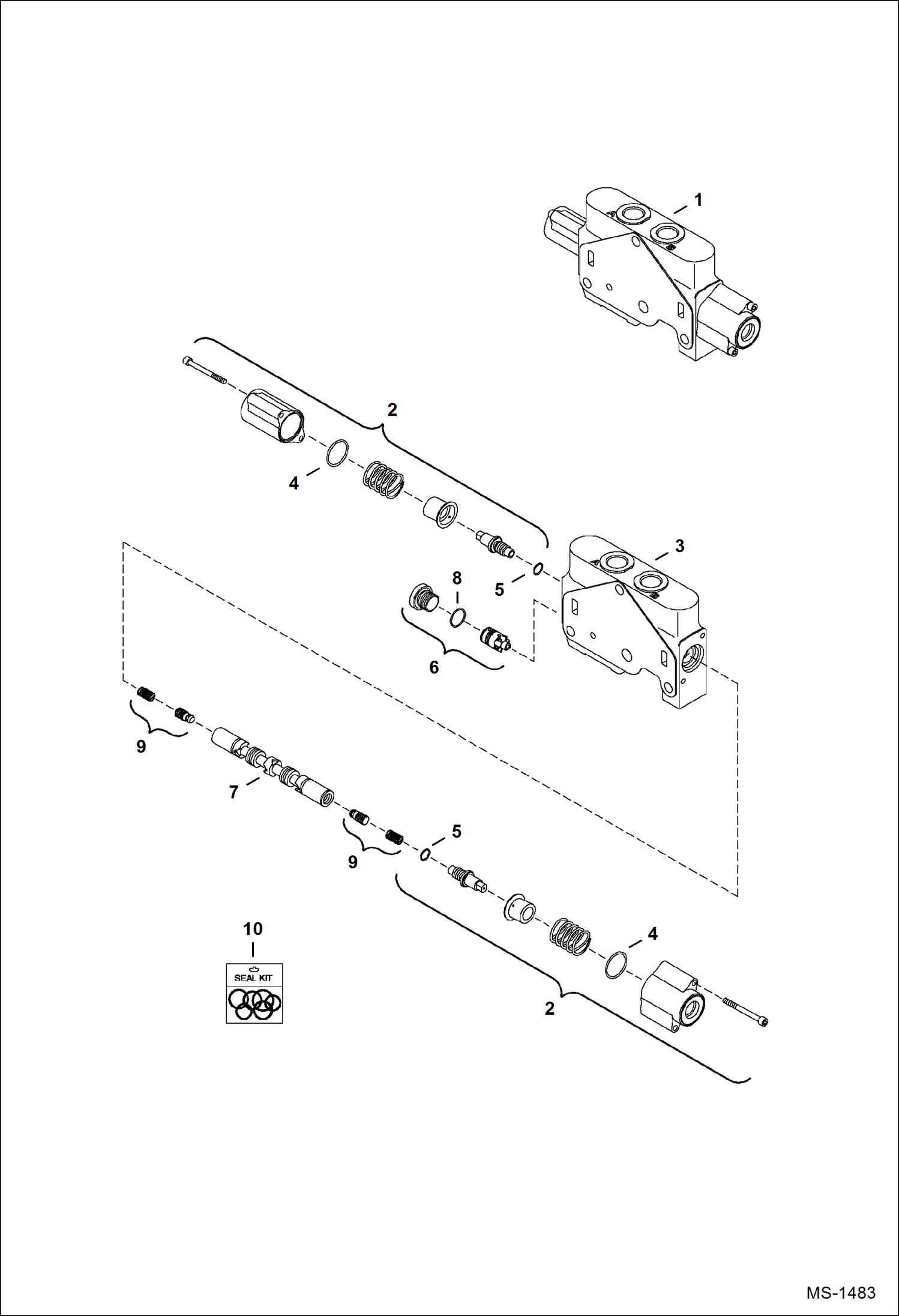

Запчасти Bobcat 331 VALVE SECTION (Auxiliary) (10 Work Section) (331) 234313000-234316876, (331E) 234412000-234413148, (334) 234513000-234515932 HYDRAULIC SYSTEM

1

6689608

VALVE SECTION W/Ref. 2-8

2

6687065

KIT

3

BLOCK NSS - Order Ref. 1

4

O-RING NSS - Order Ref. 9

5

O-RING NSS - Order Ref. 9

6

6687058

KIT pressure compensator

7

SPOOL NSS - Order Ref. 1

8

O-RING NSS - Order Ref. 6

9

6687057

KIT check valve

10

6687071

KIT, SECTION VALVE Includes Ref. 4 & 5
