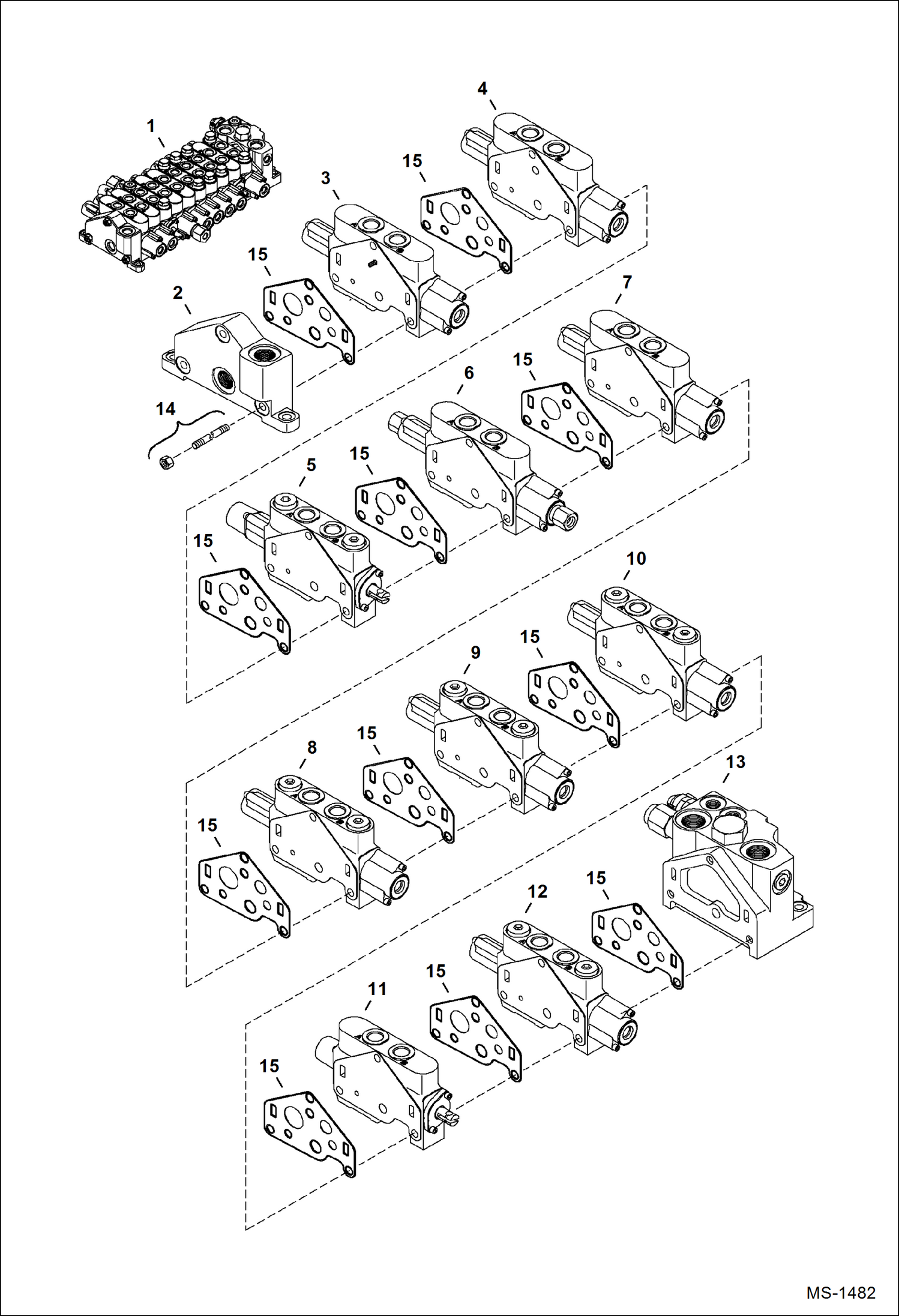

Запчасти Bobcat 331 CONTROL VALVE (10 Work Section) (331) 234313000-234316876, (331E) 234412000-234413148, (334) 234513000-234515932 HYDRAULIC SYSTEM

1

6689182

VALVE, CONTROL Ref. 2-15

2

6687052

VALVE outlet - Was 6691129 - A

3

6687051

VALVE SECTION See Illustration VALVE SECTION/ MS1434 RH travel

4

6687050

VALVE SECTION See Illustration VALVE SECTION/ MS1435 LH travel

5

6689609

VALVE SECTION See Illustration VALVE SECTION/ MS1436 blade

6

6687048

VALVE SECTION See Illustration VALVE SECTION/ MS1437 - slew - Was 6692409 - A

7

6689608

VALVE SECTION See Illustration VALVE SECTION/ MS1483 auxiliary

8

6692407

VALVE SECTION See Illustration VALVE SECTION/ MS1438 bucket

9

6689607

VALVE SECTION See Illustration VALVE SECTION/ MS1438A arm

10

6689606

VALVE SECTION See Illustration VALVE SECTION/ MS1438B boom

11

6692406

VALVE SECTION See Illustration VALVE SECTION/ MS1433 offset

12

6689605

VALVE SECTION See Illustration VALVE SECTION/ MS1484 auxiliary

13

6687041

VALVE See Illustration VALVE SECTION/ MS1431 inlet - Was 6691118 - A

14

6687053

KIT tie rod

15

6687070

GASKET, SECTION VALVE
