Запчасти Bobcat 331 MANIFOLD ASSY (331) 234316023 & Above, (331E) 234413149 & Above, (334) 234514933 & Above HYDRAULIC SYSTEM

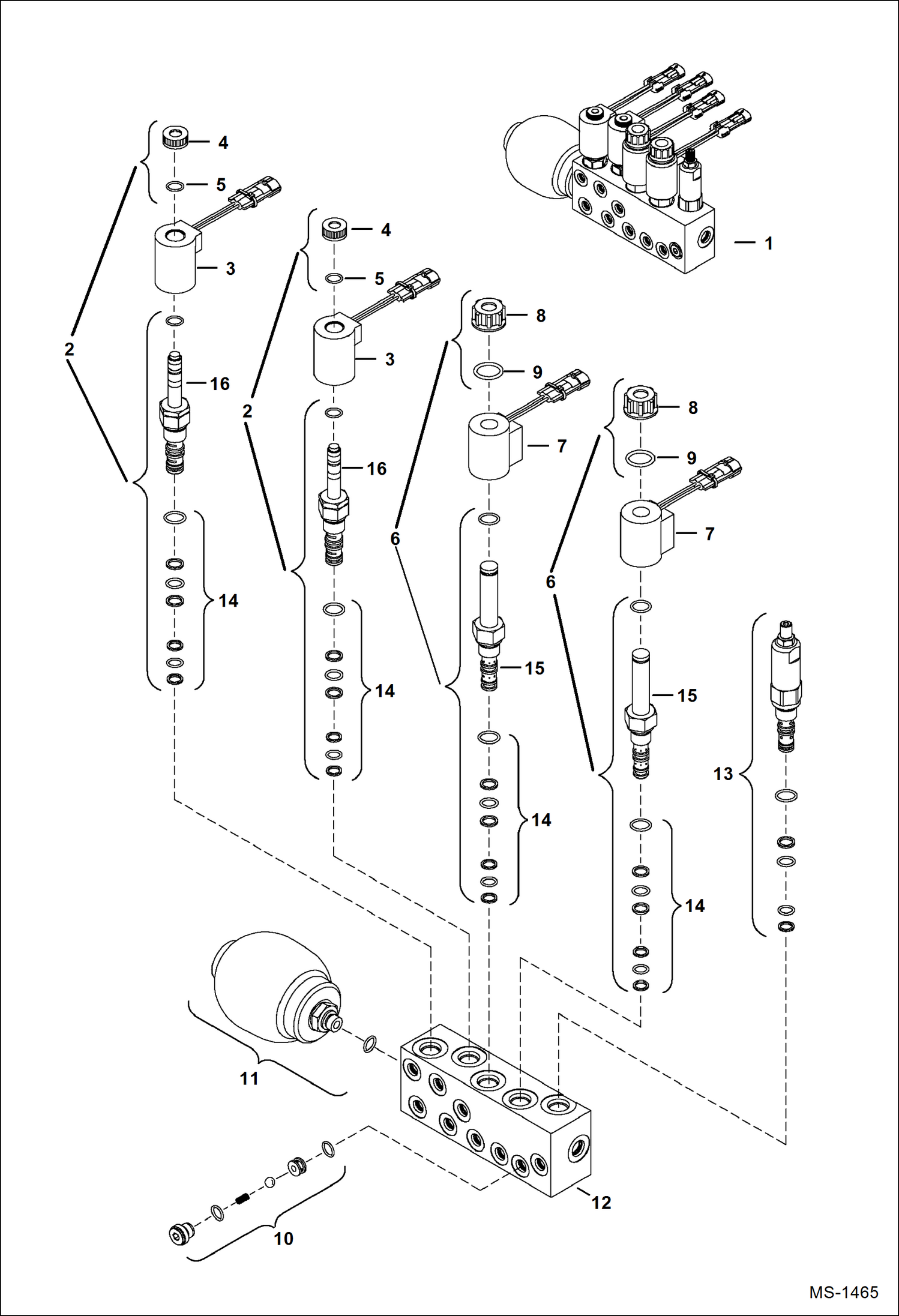

Схема запчастей Bobcat 331 - MANIFOLD ASSY (331) 234316023 & Above, (331E) 234413149 & Above, (334) 234514933 & Above HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

6690054

MANIFOLD Ref. 2-14

2

6678988

VALVE W/Ref. 4, 5, 14, 16 - Was 6679064 - A

3

6678984

COIL

4

6679076

NUT Was 6688625 - A

5

6679509

O-RING

6

6679032

VALVE W/Ref. 8, 9, 14, 15

7

6679074

COIL

8

6679075

NUT

9

6679684

O-RING

10

6678990

VALVE

11

6685832

ACCUMULATOR Was 6679031 - A

12

BLOCK NSS - Order Ref. 1

13

6685284

VALVE

14

6679078

SEAL KIT

15

STEM NSS - Order Ref. 6

16

STEM NSS - Order Ref. 2

Выбрано товаров: 16
